| Brand Name: | GoodFtth |
|---|---|
| Wavelength: | 1310,1550nm |
| Data Rate: | less than 0.3dB |
| warranty: | 5 years |
| Connector: | LC-LC |
| Place of Origin: | China (Mainland) |
| cable color: | blue |
Quick Details
Specifications

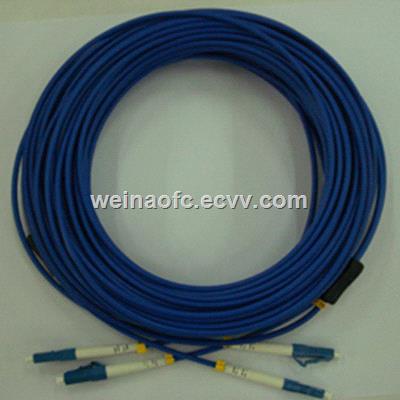

Armored Optical Fiber Patch Cord LC-LC singlemode duplex
Feature:
Strong protection the fibers with its material of stainless steel
High tensile strength,pressure resistance,re-twist /rodents resistance
Low insertion
High return loss
IEC,JIS,TELCORDIA-326 compliance
ROHS compliance
Compact design
Good repeatability and exchangeability
Application:
Testing equipment
FTTX+LAN
CATV
Optical communication system
Telecommunication
Specification:
Insertion Loss:not greater than 0.2dB(SM);0.3dB(MM)
Return Loss:PC:not less than 45dB,UPC:not less than 50dB; PC:not less than 35dB(MM);
Exchangeability:not greater than 0.2dB
Temperature Range: -45~+85 degrees
Cable Diameter: 3.0, 2.0
