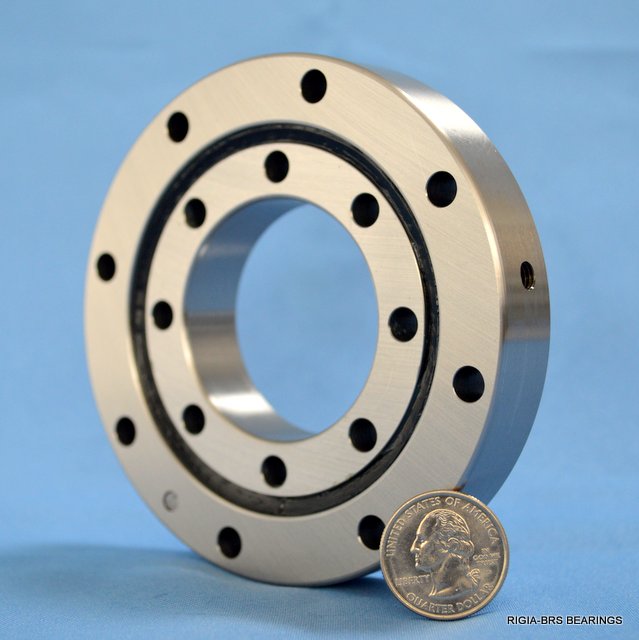

MTO-050 ball slewing bearing
Size: 50x110x20mm
Structure: four point contact ball slewing ring without gear, with gear teeth on inner and outer ring
Application:Manipulators, Jib cranes, Lift-assist devices, Work positioners etc.

RIGBRS Bearing specialized in MTO-050 slewing ring, which belongs to small size and high precision four point contact ball bearings. MT series slewing ring is suited for automative equipment, CNC machines, Industrial robots, swiveling tables of machining centers, rotary units of manipulators,precision rotary tables, medical equipment, etc.

MTO-050 bearing related slewing bearing models

Kaydon P/N	Outline Dimensions and Weight					Moment Rating Crm
	di	Do	H	Hi/Ho	G APPROX.
	(mm)	(mm)	(mm)	(mm)	(kg)	(ft-lbs)
MTO-050	50	110	20	18	0.9	830
MTO-050T	50	110	20	18	0.9	830
MTO-065	65	135	22	20	1.8	1,330
MTO-065T	65	135	22	20	1.8	1,330
MTO-122	122	226	34	29	6	5,020
MTO-122T	122	226	34	29	6	5,020
MTO-143	143	249	34	29	6.8	8,950
MTO-143T	143	249	34	29	6.8	8,950
MTO-145	145	300	50	44	16.8	26,000
MTO-145T	145	300	50	44	16.8	26,000
MTO-145X	145	312	50	44	18.6	30,600
MTO-170	170	310	46	41	15	16,520
MTO-170T	170	310	46	41	15	16,520
MTO-210	210	365	40	38	17.2	44,500
MTO-210T	210	365	40	38	17.2	44,500
MTO-210X	210	373	50	44	21.8	52,100
MTO-265	265	420	50	44	24.5	62,000
MTO-265T	265	420	50	44	24.5	62,000
MTO-265X	265	434	50	44	27.7	71,900

Customized size & structure available, please contact us for more details.
