| Keypad Button Material: | Rubber |
|---|---|
| Application: | Home Appliance |
| Brand Name: | Secukey |
| Style: | Fashion |
| Interface Type: | ABS |
| Model Number: | SK7 |
| Place of Origin: | China (Mainland) |
| Shell: | ABS |
Quick Details
Specifications

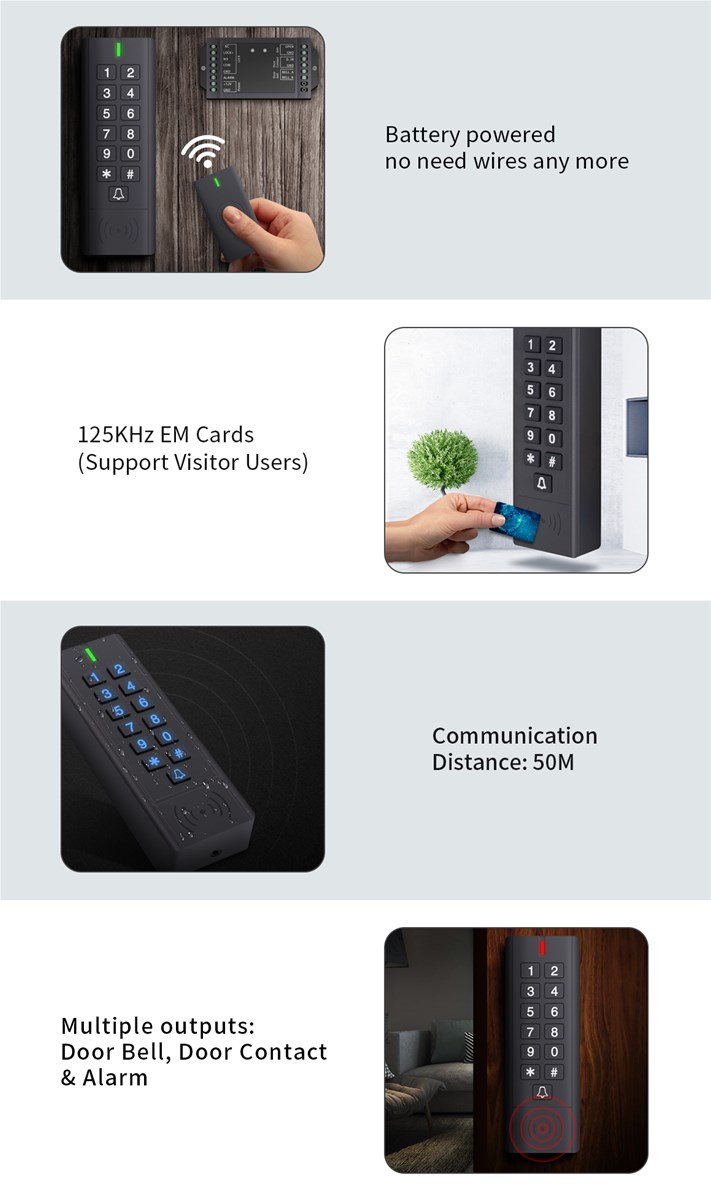

the SK7 is a single door wireless access control, consists of a wireless & waterproof keypad, a mini controller
and a wireless exit button. TEA + Rolling Code of encryption algorithm and the split design guarantees higher-secure.
Main Features:
> Waterproof, conforms to IP66 (Wireless Keypad)
> Communication frequency: 433MHz
> 600 PIN / card users (100 visitor users + 500 common users)
> PIN length: 4~8 digits
> Communication distance: 50m Max
> Door contact, alarm and door bell output
> Backlit keypad
> Door contact, alarm and door bell output
> Backlit keypad
> Pulse mode, toggle mode
> Tri-color LED status display
> Ultra low power consumption (wireless keypad<10uA, Wireless Exit Button: <10uA)
> Supports integrate 1 keypad and 1 exit button, or 2 keypads
Specifications:
User Capacity
PIN Length
Card Type |
600 PIN / card users
(500 common users + 100 visitor users) 4~8 Digits
125KHz EM Card |
Operating Voltage
Wireless Keypad
Mini Controller
Wireless Exit Button |
3units of AAA batteries
12V DC
2032 Lithium battery |
Current
Idle Current
Working Current
|
Wireless Keypad: <10uA
Mini Controller: <20Ma
Wireless Exit Button: <10uA
Wireless Keypad: <80mA;
Mini Controller: <50mA
Wireless Exit Button: <30uA |
Communication Frequency |
433MHz |
Communication Distance |
50m Maximum |
Relay Contact Load |
2Amp Maximum |
Environment
Operating Temperature
Operating Humidity |
Outdoor (Wireless Keypad)
-40oC~60oC(-40oF~140oF)
10%~9%RH |
Physical
Dimensions
Unit Weight
Shipping Weight |
ABS Shell
Wireless Keypad: L134 x W48 x D25(mm)
Mini Controller: L85 x W50 x D25(mm)
Wireless Exit Button: L80 x W38 x D15(mm)
Wireless Keypad: 150g
Mini Controller: 62g
Wireless Exit Button:34g
300g |
