| Item Type: | Flood Lights |
|---|---|
| Light Source: | LED |
| Model Number: | led flood light |
| Brand Name: | led flood light |
| Place of Origin: | China (Mainland) |
| Certification: | CCC,CE,RoHS,UL |
| IP Rating: | IP65 |
| Lamp Body Material: | Aluminum |
| Working Lifetime(Hour): | 50000 |
| Working Temperature(℃): | |
| Beam Angle(°): | 120 |
| Color Temperature(CCT): | Pure White |
| CRI (Ra>): | 85 |
| Lamp Luminous Efficiency(lm/w): | 85 |
| Lamp Luminous Flux(lm): | 17000 |
| Lamp Power(W): | 200 |
| Input Voltage(V): | 80-265 |
| LED Light Source: | 200W high power |
| Power factory: | >0.95 |
| Fixture color: | Silver/Gray/Black |
Quick Details
Specifications

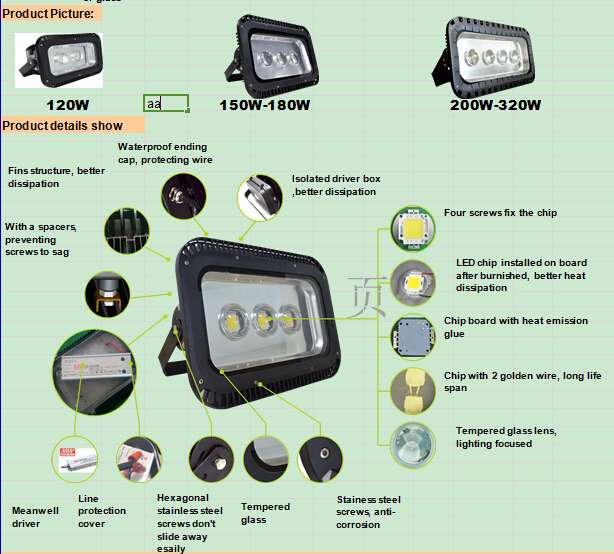

High Power outdoor 200w led flood light
Technical Specifications
|
Item no |
CBY-LF 200W-CL2 |
|
|
|
|
Led chip |
Sanan/Bridgelux / Epistar |
|
Power/Quantity |
4*50W |
|
|
|
|
Power Factor(PF) |
0.95 |
|
Power Efficiency |
>90% |
|
IP Rating |
IP 65 |
|
Working Life |
50,000 Hrs |
|
|
|
|
Color Rendering Index |
Ra>85 |
|
Housing Color |
Grey,black,White |
|
Shell Material |
Stainless steel & Aluminum |
|
Input Voltage |
AC85-265V /12V -24V DC |
|
Beam Angle |
120 degree |
|
Working Environment |
- 20 - + 50 ° C |
|
Storage Environment |
0 - 50 ° C |
|
Working Humidity |
10 % ~ 90 % RH |
|
System Resistance |
1.4 ° C / W |
|
Color Temperature |
Warm White:3000-3500K |
|
Nature White:40,00-4,500K |
|
|
Pure White:6,000-7,000K |
|
|
|
| Model | Power(W) | Lumen(lm) | InputVoltage(V) | Dimension(mm) | Color | Warranty |
| LD-FL-80W-CL7 | 2*40W | 6800 | AC85-265V | 385*265*165 | W/WW | 3Years |
| LD-FL-100W-CL7 | 2*50W | 8500 | AC85-265V | 385*265*165 | W/WW | 3Years |
| LD-FL-120W-CL7-S | 2*60W | 10200 | AC85-265V | 385*265*165 | W/WW | 3Years |
| LD-FL-120W-CL7 | 2*60W | 10200 | AC85-265V | 451*311*102 | W/WW | 3Years |
| LD-FL-150W-CL7 | 3*50W | 12750 | AC85-265V | 451*311*102 | W/WW | 3Years |
| LD-FL-180W-CL7 | 3*60W | 15300 | AC85-265V | 451*311*102 | W/WW | 3Years |
| LD-FL-200W-CL7-New | 4*50W | 17000 | AC85-265V | 525*365*185 | W/WW | 3Years |
| LD-FL-200W-CL7 | 4*50W | 17000 | AC85-265V | 560*310*210 | W/WW | 3Years |
| LD-FL-240W-CL7-New | 6*40W | 20400 | AC85-265V | 525*365*185 | W/WW | 3Years |
| LD-FL-240W-CL7 | 4*60W | 20400 | AC85-265V | 560*310*210 | W/WW | 3Years |
| LD-FL-280W-CL7 | 4*70W | 23800 | AC85-265V | 560*310*210 | W/WW | 3Years |
| LD-FL-320W-CL7 | 4*80W | 27200 | AC85-265V | 560*310*210 | W/WW | 3Years |
Applications:
1-Replacement for conventional Haligan lamps
2-super markets
3-Factories and offices
4-Commercial complexes
5-squareys
6-Government projects, Railway Stations, Airports, Schools
