| Wire Gauge: | 0.4-2.1mm |
|---|---|
| Material: | Galvanized Iron Wire |
| Aperture: | 3/8",1/4",1/2",5/8",1",1-1/2" etc |
| Hole Shape: | Hexagonal |
| Application: | Cages |
| Type: | Woven Bag |
| Material: | Galvanized Iron Wire |
| Model Number: | HT-HN001 |
| Brand Name: | HT |
| Place of Origin: | China (Mainland) |
| Material: | Galvanized iron wire, stainless steel wire, Low-Carbon Iron Wire |
| Type: | woven wire mesh, Galvanized,coated,stainless stell etc. |
| Application: | Building ,oil chemical industry etc |
| Characteristic: | Corrosion resisting,oxidation resisting etc. |
| Wire Diameter: | 0.4-2.1mm |
| Mesh: | 10-100mm hole |
| Woven: | Straight twist, reverse twist, double-direction twist. |
| Color: | Green, red,black etc |
| Uses: | Feeding chicken. birds, make gabions etc |
| Mesh Size: | 3/8",1/4",1/2",5/8",1",1-1/2" etc |
Quick Details
Specifications
Hexagonal Chicken Wire Mesh/ Flore Network Soft Edge Network

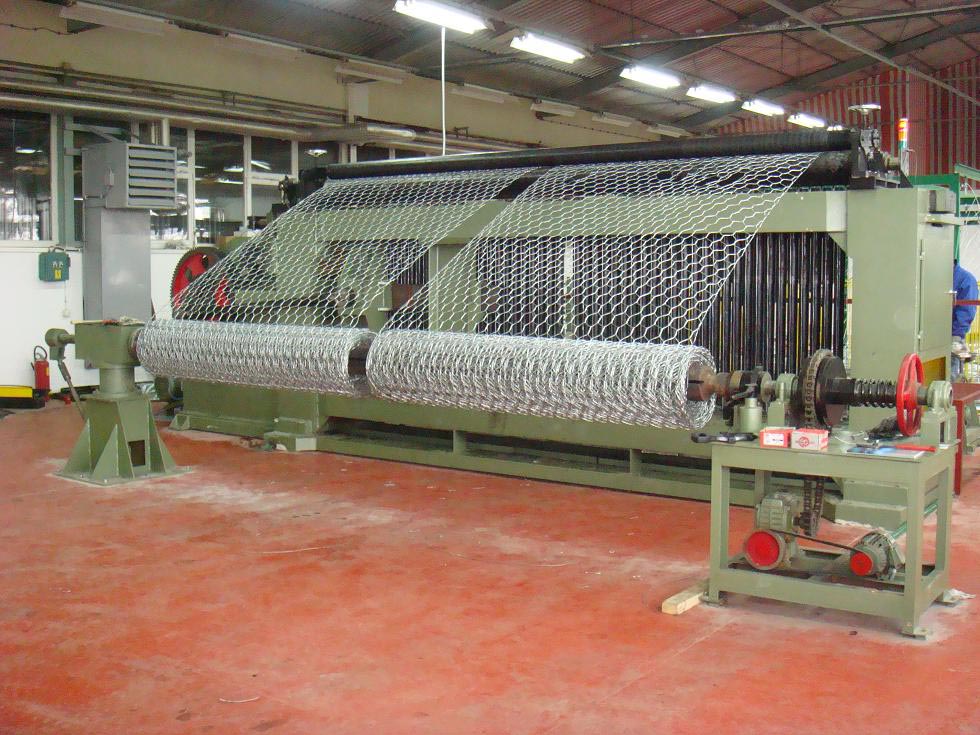

Hexagon wire netting also named chicken wire, chicken mesh, hencoop mesh and turtleback mesh.
Weaving pattern: straight twist, reverse twise, and double-direction twist.
1.Galvanized Hexagonal wire netting
It can be weaved after galvanized or galvanized after weaving.Galvanized can be electric galvanized or hot dipped.
---Some size as reference
|
The specification of hexagonal wire netting |
||||||
| mesh inch | Guage BWG | size feet |
|
mesh inch | Guage BWG | size feet |
| 1" | 17# | 3'*100' | 2" | 22# | 3'*100' | |
| 1" | 18# | 3'*100' | 2" | 23# | 3'*100' | |
| 1" | 19# | 3'*100' | 3" | 16# | 3'*100' | |
| 1" | 20# | 3'*100' | 3" | 17# | 3'*100' | |
| 1" | 21# | 3'*100' | 3" | 18# | 3'*100' | |
| 1" | 22# | 3'*100' | 3" | 19# | 3'*100' | |
| 1" | 23# | 3'*100' | 3" | 20# | 3'*100' | |
| 1" | 24# | 3'*100' | 1/2" | 22# | 3'*100' | |
| 1" | 25# | 3'*100' | 1/2" | 23# | 3'*100' | |
| 11/4 | 18# | 3'*100' | 1/2" | 24# | 3'*100' | |
| 11/4 | 19# | 3'*100' | 1/2" | 25# | 3'*100' | |
| 11/4 | 20# | 3'*100' | 1/2" | 26# | 3'*100' | |
| 11/4 | 21# | 3'*100' | 5/8" | 21# | 3'*100' | |
| 11/4 | 22# | 3'*100' | 5/8" | 22# | 3'*100' | |
| 11/2 | 17# | 3'*100' | 5/8" | 23# | 3'*100' | |
| 11/2 | 18# | 3'*100' | 5/8" | 24# | 3'*100' | |
| 11/2 | 19# | 3'*100' | 5/8" | 25# | 3'*100' | |
| 11/2 | 20# | 3'*100' | 3/4" | 20# | 3'*100' | |
| 11/2 | 21# | 3'*100' | 3/4" | 21# | 3'*100' | |
| 11/2 | 22# | 3'*100' | 3/4" | 22# | 3'*100' | |
| 11/2 | 23# | 3'*100' | 3/4" | 23# | 3'*100' | |
| 2" | 17# | 3'*100' | 3/4" | 24# | 3'*100' | |
| 2" | 18# | 3'*100' | 3/4" | 25# | 3'*100' | |
| 2" | 19# | 3'*100' |
reverse twise make |
1",11/4 |
11/2,2" |
|
| 2" | 20# | 3'*100' | width make |
5'*100' 4'*100' |
4'*100' 6'*100' |
|
| 2" | 21# |
3'*100' |
||||

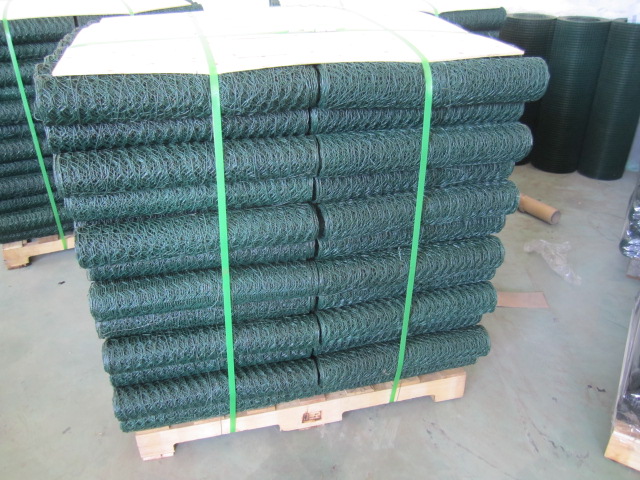

PVC coated hexagonal wire netting can be made by weaving before coated or after coated.
2.PVC coated hexagonal wire netting
| specification of mesh | it can tweak wire diameter | it can tweak width | |||
| mesh | size(mm) |
Britain number |
wire dia.,coated with PVC wire dia. | inch | the metric system |
| 1/2" | 13 | BWG27-22 | 0.8-1.1mm | 1'-6' | 0.1-2m |
| 5/8" | 16 | BWG27-22 | 0.8-1.1mm | 1'-6' | 0.1-2m |
| 3/4" | 19 | BWG26-20 | 1.8-1.1mm | 1'-6' | 0.1-2m |
| 1" | 25 | BWG25-19 | 0.9-1.6mm | 1'-6' | 0.1-2m |
| 11/4 | 31 | BWG24-18 | 1.0-2.0mm | 1'-6' | 0.2-2m |
| 11/2 | 40 | BWG23-16 | 1.1-2.5mm | 1'-6' | 0.2-2m |
| 2" | 50 | BWG22-14 | 1.1-2.5mm | 1'-6' | 0.2-2m |
| 3" | 75 | BWG21-14 | 1.2-3.0mm | 1'-6' | 0.3-2m |
| 4" | 100 | BWG20-12 |
|
1'-6' | 0.3-2m |
More Info,pls feel free to contact me!
