| Item Type: | High Bay Lights |
|---|---|
| Light Source: | LED |
| Brand Name: | PEONYLIGHT |
| Certification: | BV,C-tick,CCC,CE,CQC,EMC,Energy Star,ETL,FCC,FDA,GOST,GS,LVD,PSE,REACH,RoHS,SAA,SASO,UL,VDE |
| Working Lifetime(Hour): | 50000 |
| CRI (Ra>): | 82 |
| Input Voltage(V): | 90-305 |
| Model Number: | PL-UFO-Q |
| Place of Origin: | China (Mainland) |
| IP Rating: | IP65 |
| Lamp Body Material: | Aluminum |
| Working Temperature(): | |
| Lamp Luminous Efficiency(lm/w): | 130 |
| Lamp Luminous Flux(lm): | 18000 |
| Lamp Power(W): | 150 |
| Warranty(Years): | 5 |
| LED Light Source: | 3030SMD |
| Driver: | meanwell |
Quick Details
Specifications

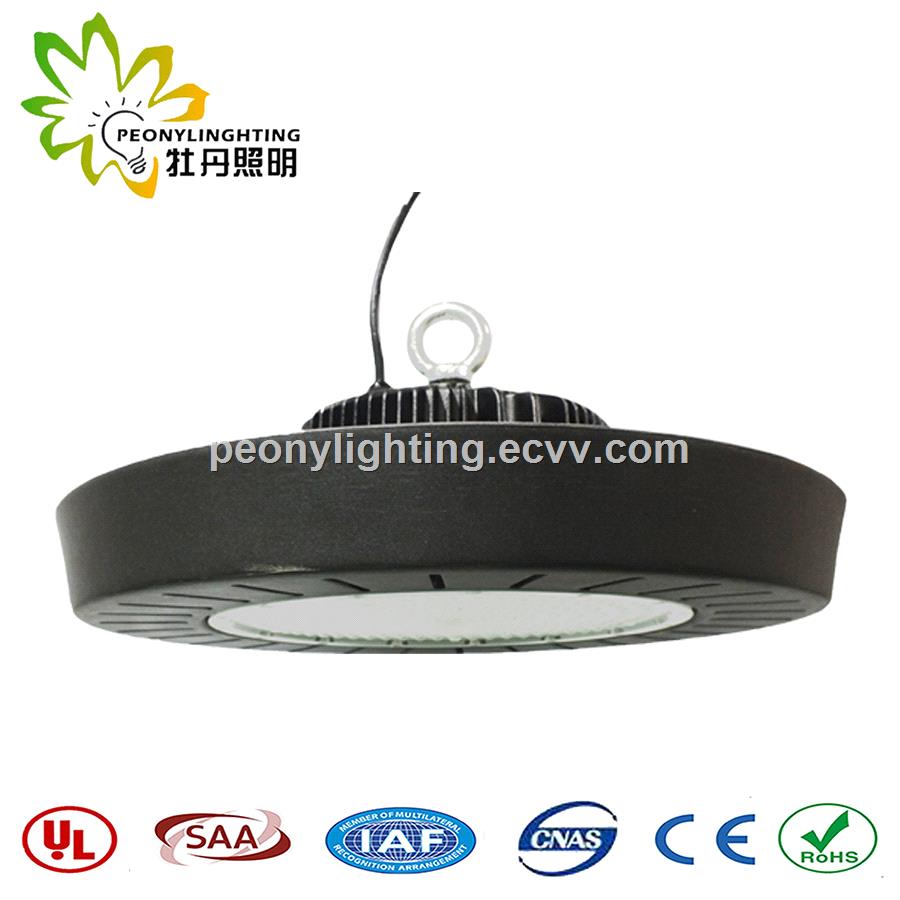

PEONYLIGHTING Warehouse use IP65 150w LED high bay light with reflector, ufo LED highbay light,LED industrial light
2017 UFO LED industrial lighting ufo LED highbay light
with the improvement of LED technology, LED high bay light, as the
Main luminaries of industrial lighting, are widely used. with better
Performance, it is inevitable trend to use LED replace traditional lamps.
]\
PL LED high bay light, adopting high efficiency optical system, uniform and good vertical light distribution, lower glare, is the ideal solution for LED high bay lighting.
Key Features
- Unique designed UFO shape , lighter and smaller
- Nichia 3030 & Lumileds 3030 , Ra> 80; LM80 standard
- Luminous efficiency: 110-125 lm/w
- Meanwell HLG Series LED driver
- Configurable Smart Dimming
- Certified product : ETL ; DLC ; SAA ; TUV-CE ; CB
- Glass cover or PC convex cover
- Wide aluminum plate design, heat dissipation fast and evenly
- Ideal mounting height: 8-15 m
- Angle for flexible bracket : 30, 60, 90, 120, 150 .
- Installation: Rack mounting & Hook hanging
- Working temperature: -30C ~ + 45C
- IP65 protection level
Application
Warehouse; industrial production workshop; pavilion; stadium; the train
Station; shopping malls; gas stations and other indoor lighting
Application
Warehouse; industrial production workshop; pavilion; stadium; the train
Station; shopping malls; gas stations and other indoor lighting
Datesheet
| Specification |
| Power: 150W |
| CRI:>70/80 |
| LED Qty:168PCS |
| Driver:Meanwell SOSEN |
| Imput Voltage: AC100-265V |
| Luminous Flux (lm):130lm/W10% |
| Light color: 3000/4000/6000k |
| IP Rating:IP65 |
| View Angle:60 90 120 |
| Power Factor: 0.90 |
| Warranty:5-8 years |
