| Usage: | Universal Testing Machine |
|---|---|
| Power: | Electronic |
| Model Number: | UNITEST-D-S |
| Brand Name: | UNIVER |
| Place of Origin: | China (Mainland) |
| UNITEST-D-S: | 2-5kN |
Quick Details
Specifications

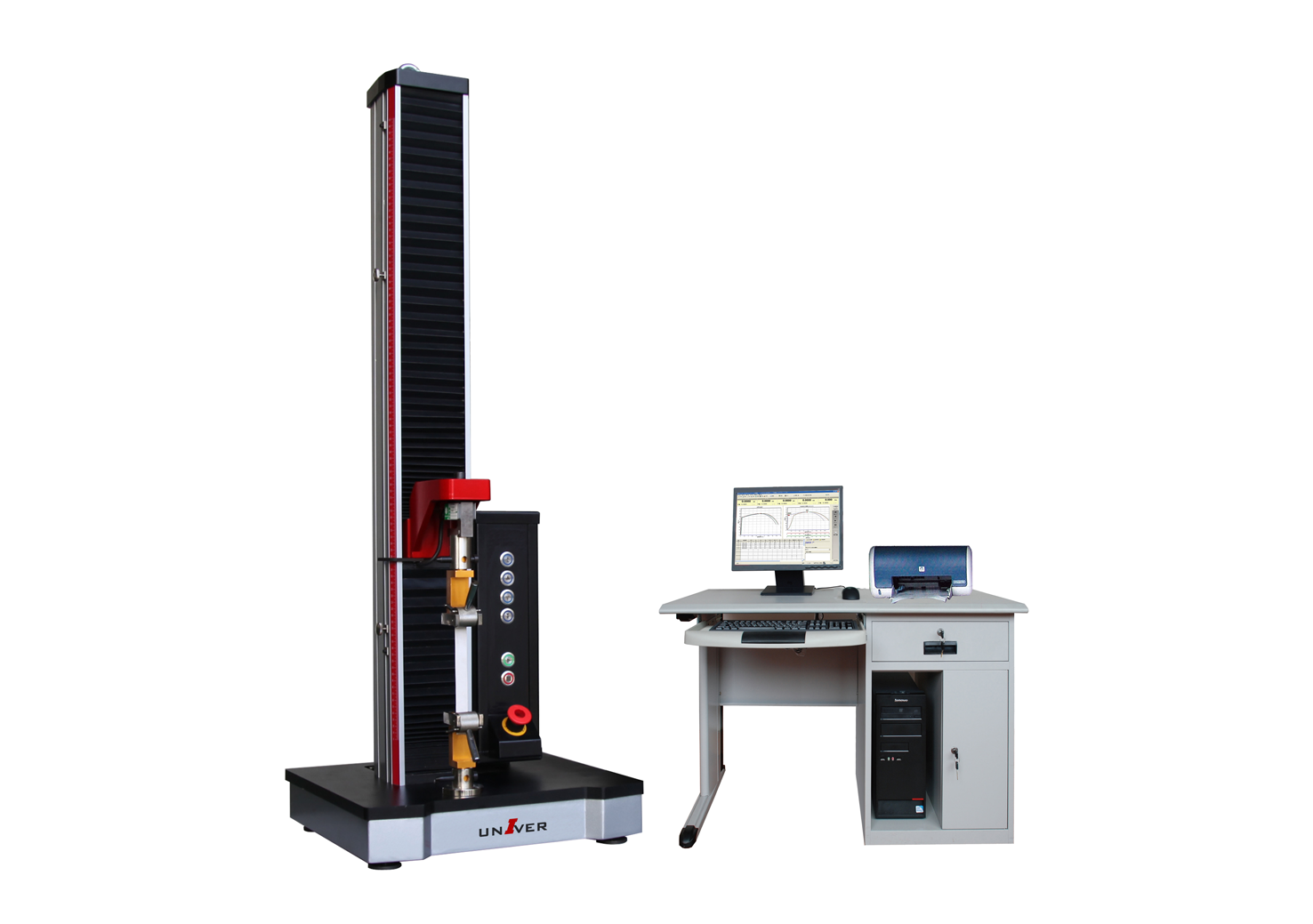

UNITEST-D-S series electromechanical universal testing machines offer small force, displacement or deformation in closed loop testing. the machine can be equipped with a variety of accessories including: grips, fixtures, compression frames, thermal cabinets and extensometers covering all relevant applications as testing of rubber, plastics, foils, films, textiles, adhesives, paper, foods, foams, timber, wires or other metallic or non-metallic specimens and medical, electronic and other components. The load frames are compact constructed, providing affordable and flexible needs. It displays testing information on a high visibility LCD console with integral membrane keypad, it also can be connected to windows-based computer system with data analysis software. Capacities for these systems range from low-load forces of 0.05kN up to high-capacity 10kN test frames.
UNITEST-D-S | ||||
Load capacity |
N |
2000 |
3000 |
5000 |
Measuring range |
% |
0.2%-100% | ||
Load accuracy |
% |
±0.5% | ||
Loading speed |
Mm/min |
0.001~1000 | ||
Speed accuracy |
% |
±0.5% | ||
Tension opening |
mm |
300 |
500 |
800 |
Dimensions |
mm |
430*315*855 |
460*430*1100 |
480*450*1640 |
Weight |
kg |
40 |
75 |
80 |
Power consumption |
W |
200 |
400 | |
General Specifications Load Measurement Accuracy: ±0.5% of reading to 0.2/100 of load weighing system capacity meets or exceeds the requirements of the following standards: ISO 7500-1, EN 10002-2, ASTM E4, JIS B7721. Strain Measurement Accuracy: ±0.5% of reading to 1/50 of full scale with most ASTM E83 class B or ISO 9513 class 0.5 extensometers meets or exceeds ASTM E83, ISO 9513, and EN 10002-4. Speed Accuracy: Set speed＜10% Max. Speed: ±1% Set speed ≥10% Max. Speed:±0.5% Position measurement accuracy: ±0.5 of reading or 0.001 mm, whichever is greater Power supply: Standard optional voltages 220/240VAC, 50-60 Hz, Power must be free of spikes and surges exceeding 10% of the nominal voltage. Operating Temperature: 0 to +38°C (+32 to +100°F) Humidity Range: 10% to 90% non-condensing, Storage Temperature: -40 to +66°C (-40 to +150°F) Note: 1. Extra height frames are available. 2. Power supply system is completely customizable. 3. Specifications are subject to change without notice. | ||||
