| Usage: | Impact Testing Machine |
|---|---|
| Power: | Electronic |
| Model Number: | IMPAC |
| Brand Name: | UNIVER |
| Place of Origin: | China (Mainland) |
| Drop height: | 50-3000mm |
| Pipe diameters: | 10-630mm |
| Weight of striker: | 13.5-16kg |
Quick Details
Specifications

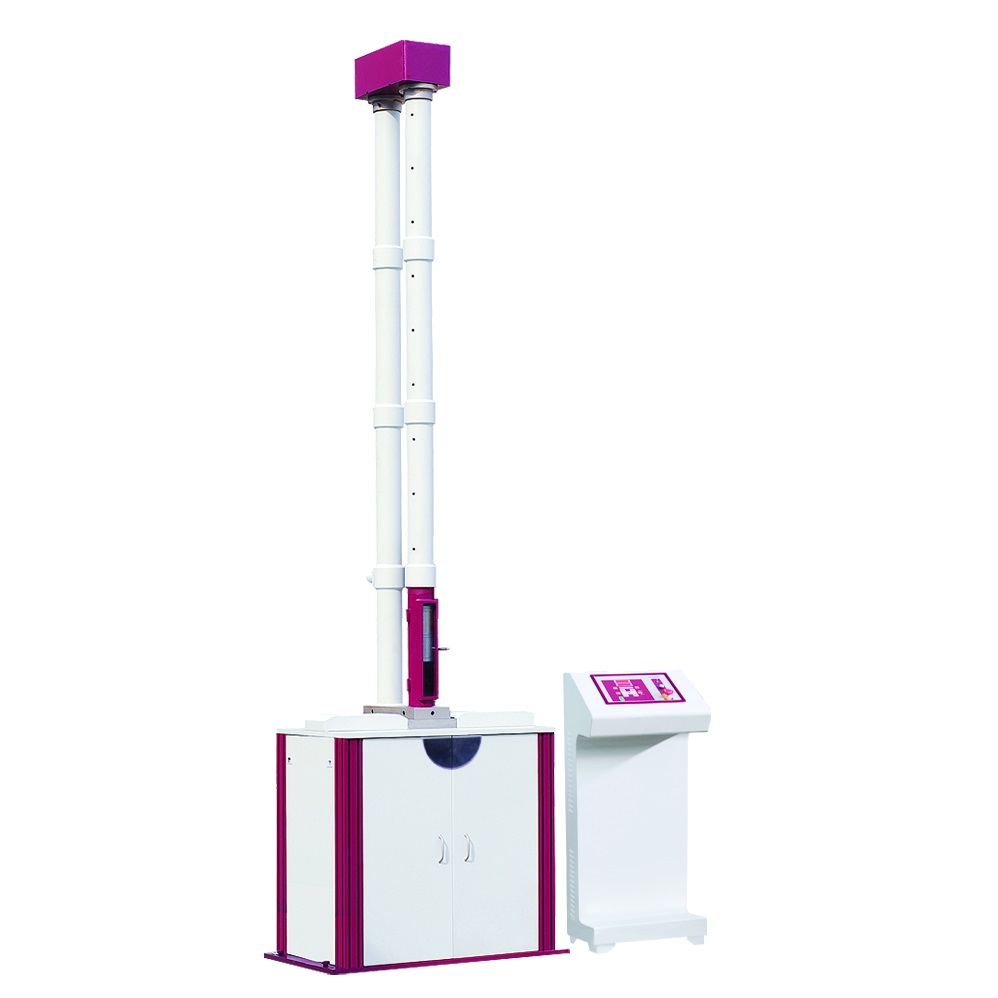

UNIVER IMPAC Series Failing-Weight Testing Machines are used to determine the test impact resistance performance for various plastic materials and coating materials, these machines have a guiding tube rigidly fixed in the vertical position, to accommodate a striker and release it to fall vertically and freely, these drop towers feature an automatic positioning striker and interchangeable strikers to suit different test needs, while a patent design is to prevent the striker from hitting specimen repeatedly.
Model |
IMPAC-120 |
IMPAC-130 |
IMPAC-230 |
Drop height |
50mm-2000mm |
50mm-3000mm |
50mm-3000mm |
Pipe diameters |
Ф10mm-Ф630mm | ||
Energy loss |
＜0.25% | ||
Maximum weight of striker |
16kg |
13.5kg |
15kg |
Nose and masses of striker |
Depending on standards/requests | ||
Striker lifting method |
Chain |
Chain |
Vacuum chuck |
Striker lifting speed |
0.25m/min, 12m/min |
2m/s | |
Speed detector |
NO |
NO |
YES |
Anti-repeat hit |
YES |
YES |
YES |
Display |
LED |
LED |
LCD |
