| Usage: | Impact Testing Machine |
|---|---|
| Power: | Electronic |
| Model Number: | NI50-CD |
| Brand Name: | UNIVER |
| Place of Origin: | China (Mainland) |
| NI50-CD: | 0.5-50J |
Quick Details
Specifications

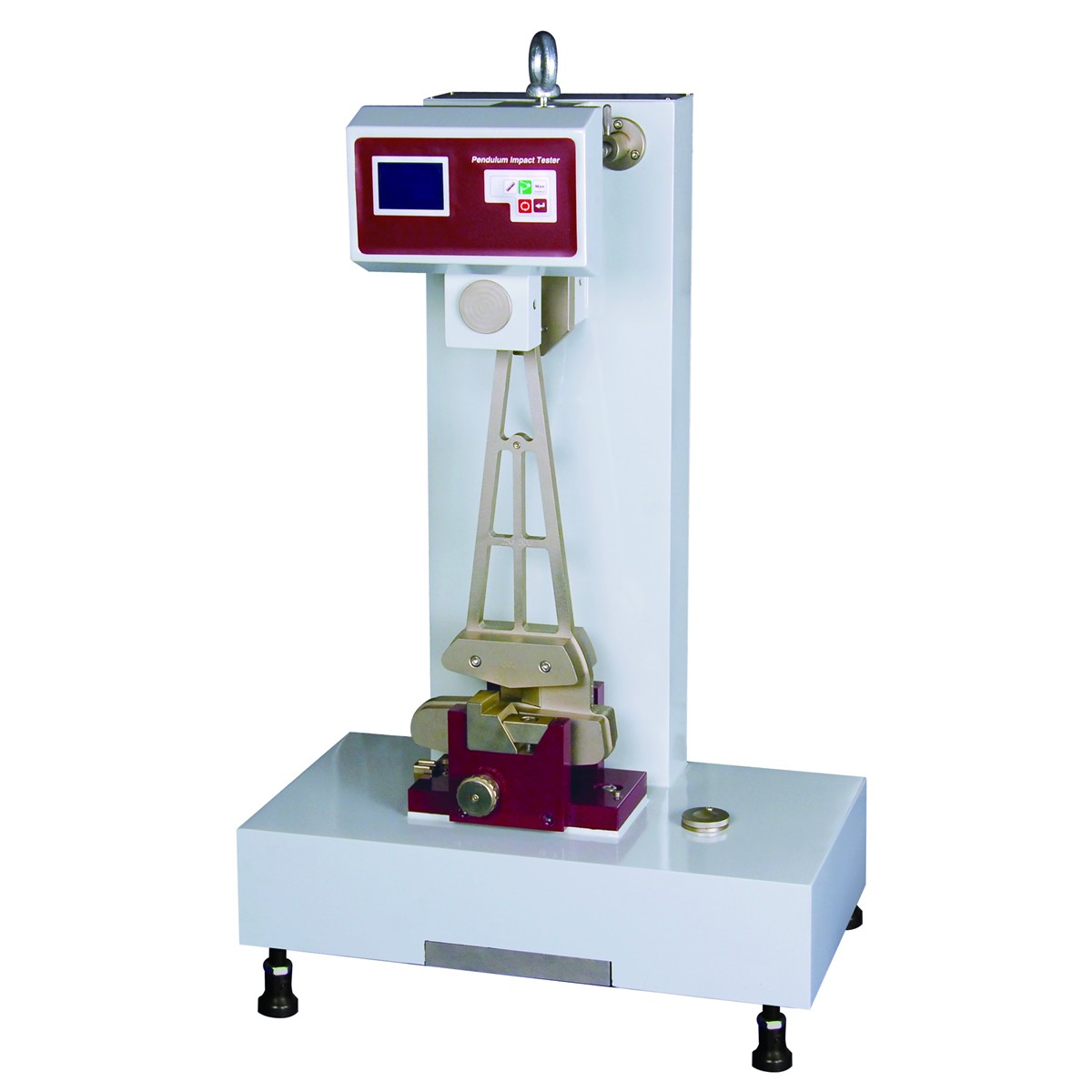

UNIVER NI50-CD Series Pendulum Impact Testing Machine is capable of performing Charpy impact in two ranges which are 0.5J to 5J or 7.5J to 50J to satisfy the impact test requirements on nylon, rubber, FRP, glass fiber, composite plastic pipe, cast stone, electrical insulation materials. NI50-CD offers a digital display provides easy setup of specimen dimensions, pendulum energy, units and calibration data, also it can automatically correct the energy loss by frictions.
Model |
NI50-CD-5 |
NI50-CD-50 |
Impact energy |
0.5J, 1J, 2J, 4J, 5J |
7.5J, 15J, 25J, 50J |
Impact moment |
M0.5=0.26795Nm M1=0.53590Nm M2=1.07180Nm M4=2.14359Nm M5=2.67949Nm |
M7.5=4.0192Nm M15=8.03848Nm M25=13.39746Nm M50=26.79492Nm |
Impact velocity |
2.9m/s |
3.8m/s |
Pendulum raised angle |
150° | |
Measuring accuracy |
±0.1% | |
Resolution |
0.05% | |
Energy loss |
0.5J-4%, 1J-2%, 2J-1%, 4J/5J-0.5% |
7.5J to 50J 0.5% |
Dimensions |
420*250*650mm |
550*300*890mm |
