| Usage: | Bending Testing Machine |
|---|---|
| Power: | Electronic |
| Model Number: | WZW200 |
| Brand Name: | UNIVER |
| Place of Origin: | China (Mainland) |
| WZW200: | 200kN |
Quick Details
Specifications

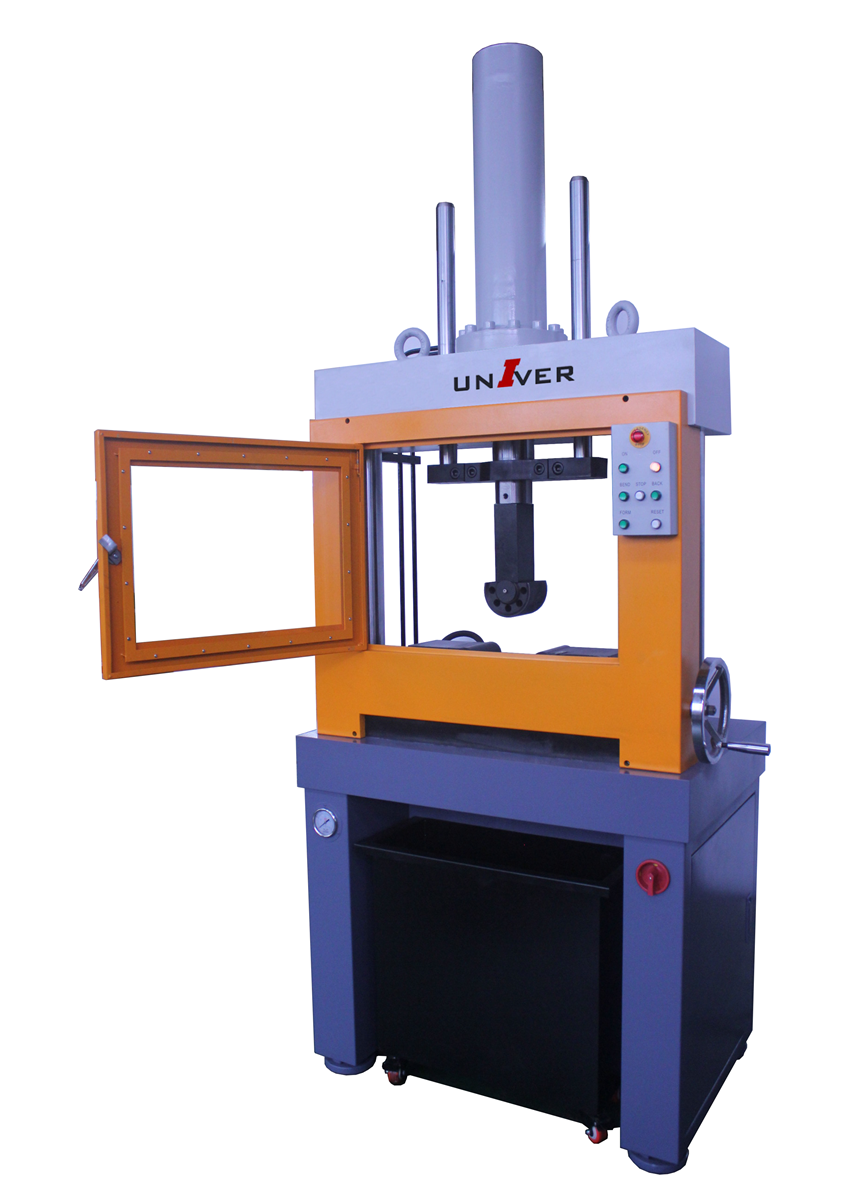

WZW200 Series Cold Bend Testing Machine is specially designed to test bend-resistance performance of reinforced rolling steel bars, building steel reinforcements and steel pipes which completely meet the requirements of ASTM A615 A615M, ISO 7438, GB 232 and other international and national specifications. Generally, the deformed and plain carbon steel bars for concrete reinforcement in cut lengths shall withstand being bent around a pin without cracking on the outside radius of the bent portion.
Model |
WZW200 | ||
Load capacity |
kN |
200 | |
Distance between rollers |
mm |
0~400 | |
RAM stroke |
mm |
360 | |
Bending angle |
° |
Nominal 90 / 180 degree | |
Rebar diameter |
mm |
Ф6-Ф40 | |
Roller diameter |
mm |
Ф100 | |
Mandrels |
mm |
Mandrel (Pin) dia. |
Rebar dia. |
A615/A615M: Standard Specification for Deformed and Plain Carbon-Steel Bars for Concrete Reinforcement1 |
32 |
9,5 (3) | |
44 |
12,7 (4) | ||
56 |
15,9 (5) | ||
96 |
19 (6) | ||
112 |
22,2 (7) | ||
128 |
25,4 (8) | ||
200 |
28,7 (9) | ||
224 |
32,2 (10) | ||
250 |
35,8 (11) | ||
ISO 7438: Metallic materials -- Bend test |
24 |
4-6 | |
32 |
7 | ||
40 |
8 | ||
56 |
10 | ||
64 |
12 | ||
96 |
14 | ||
112 |
36 | ||
128 |
18 | ||
132 |
20 | ||
140 |
22 | ||
180 |
24-26 | ||
200 |
28 | ||
224 |
30-32 | ||
320 |
34-38 | ||
Dimensions (mm) |
1350 x 1250 x 900 | ||
Power |
3P-380 VAC ±10%; 2.2kW | ||
Weight (kg) |
800 | ||
Note: 1. Mandrels and mandrel holders must be ordered separately. 2. Custom power system for different countries and regions are available 3. 60 Liters 46# or 68# anti-wear hydraulic oil should be prepared by customer | |||
