| Usage: | Tensile Testing Machine |
|---|---|
| Power: | Hydraulic |
| Model Number: | UNITEST-C |
| Brand Name: | UNIVER |
| Place of Origin: | China (Mainland) |
| UNITEST-C: | 1000-3000kN |
Quick Details
Specifications

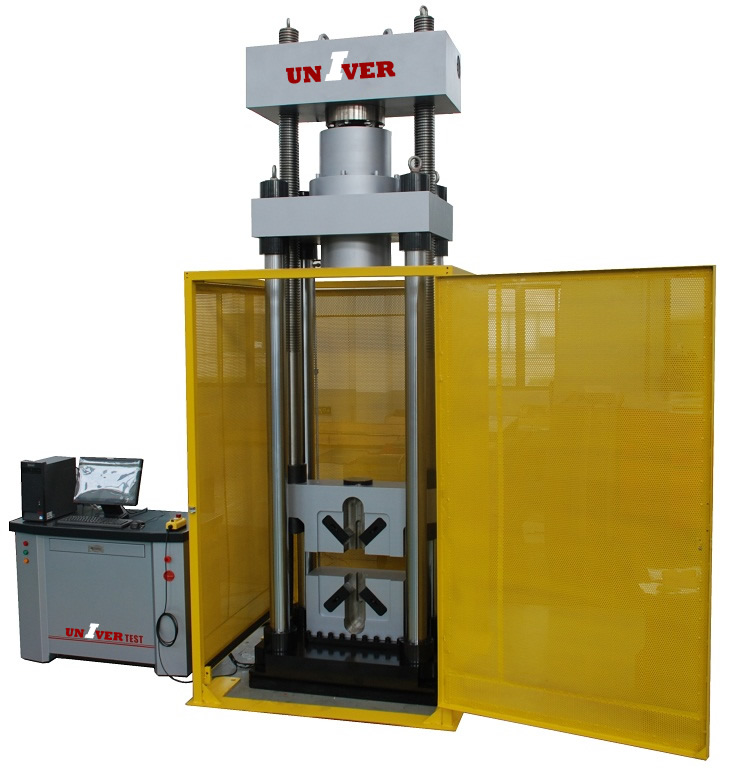

UNITEST-C Series Servo-hydraulic Universal Testing Machine is specially designed to meet the requirements of mechanical properties testing on link chains, it can perform both static tensile test and bend deflection test of link chains, these machines offer force, and displacement closed loop testing.
Model |
UNITEST-C -1000 |
UNITEST-C -3000 | |
Capacity |
kN |
1000 |
3000 |
Load resolution |
kN |
Capacity/300, 000 (fully auto scaling of single measurement range) | |
Accuracy |
ISO 7500-1 |
1% |
0.5% |
Machine specifications |
Stroke (A) | ||
in |
9.843 | ||
mm |
250 | ||
Testing speeds | |||
in/min |
1.575 | ||
Mm/min |
0-40 | ||
Adjustable crosshead speed | |||
in/min |
6.3 | ||
Mm/min |
160 | ||
Load frame dimensions |
Clearance between grips (C) | ||
in |
39.4 |
47.2 | |
mm |
1000 (including RAM stroke) |
1200 (including RAM stroke) | |
Clearance between platens (B) | |||
in |
39.4 |
47.2 | |
mm |
1000 (including RAM stroke) |
1200 (including RAM stroke) | |
Machine dimensions |
Load frame | ||
in |
44.1*31.5*149.6 |
54.3*39*204 | |
mm |
1120*800*3800 |
1380*990*5180 | |
Control console | |||
in |
45.3*31*35.4 | ||
mm |
1150*780*900 | ||
Weight |
lbs |
33069 |
14330 |
kg |
15000 |
6500 | |
