| Usage: | Bending Testing Machine |
|---|---|
| Power: | Electronic |
| Model Number: | CWT-1000 |
| Brand Name: | UNIVER |
| Place of Origin: | China (Mainland) |
| CWT-1000: | 200mm, 300mm |
Quick Details
Specifications

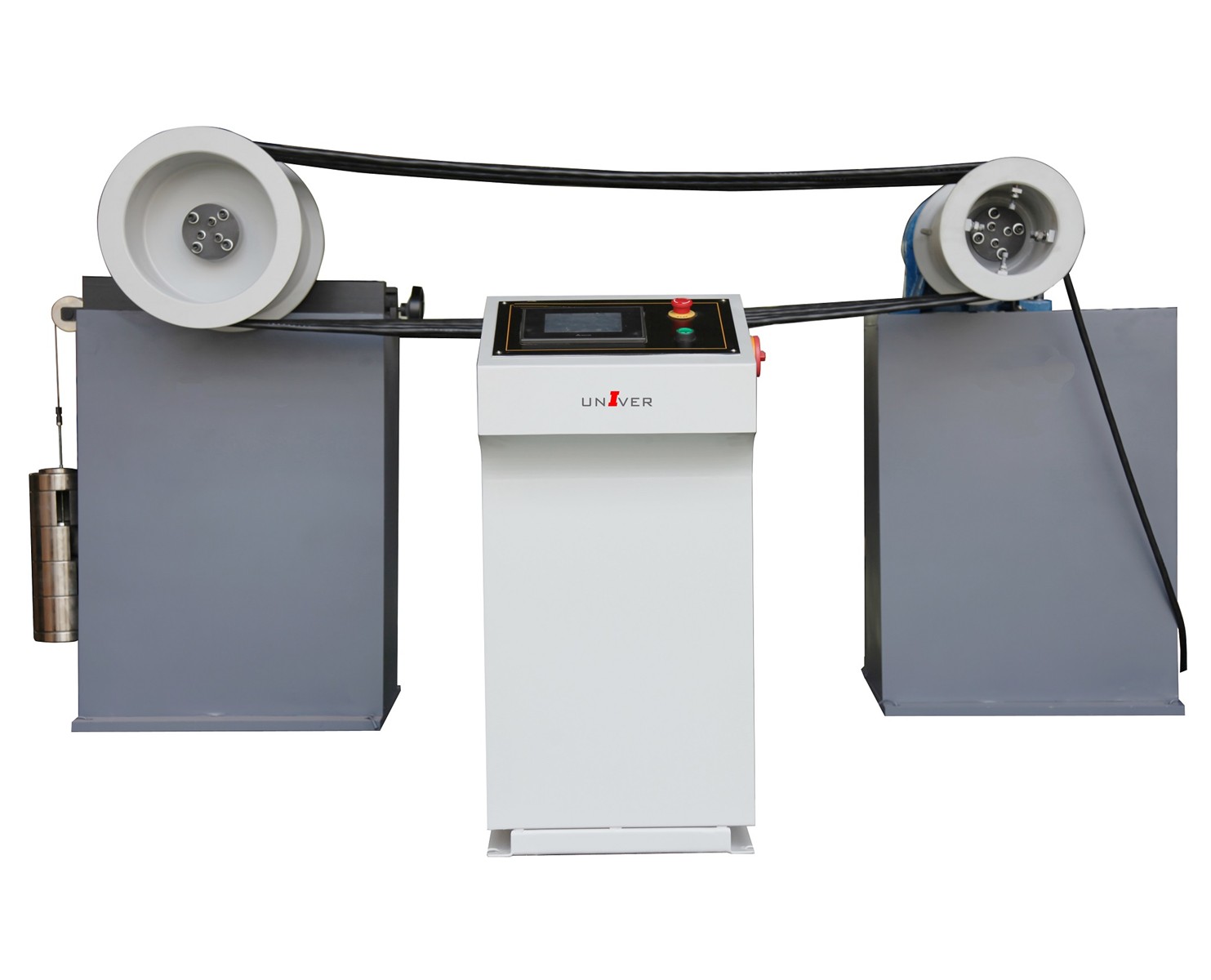

UNIVER CWT-1000 Series Optical Fiber Cable Bend (Winding) Testing Machine is intended to determine the ability of an optical fibre cable or cable element to withstand bending around a test mandrel such as U bend and S bend.
Mandrel diameter (Drive) |
mm |
D200, D300 |
Mandrel diameter (Slave) |
mm |
D300 |
Positioning range of slave mandrel |
mm |
0-250 |
Max. bending cycles |
Cycles |
1-9999 |
Winding frequency |
Cycles/min |
2-20 (Clockwise / Anticlockwise) |
Winding velocity |
r/min |
12 |
Mass of weights for applying tension |
|
Total Weight27.5kg, Weight bracket: 5kg 4 pieces of 5kg weight increment, 1 piece of 2.5kg weight increment. |
Dimensions (L*W*H) |
| |
Working frame |
mm |
1000*720*1300 |
Control console |
mm |
400*300 * 800 |
|
| |
Power |
|
3-phase 4-wire, 50Hz, 1kW. |
