| Usage: | Impact Testing Machine |
|---|---|
| Power: | Electronic |
| Model Number: | CIT-1000 |
| Brand Name: | UNIVER |
| Place of Origin: | China (Mainland) |
| CIT-1000 (Drop height): | 1000mm |
Quick Details
Specifications

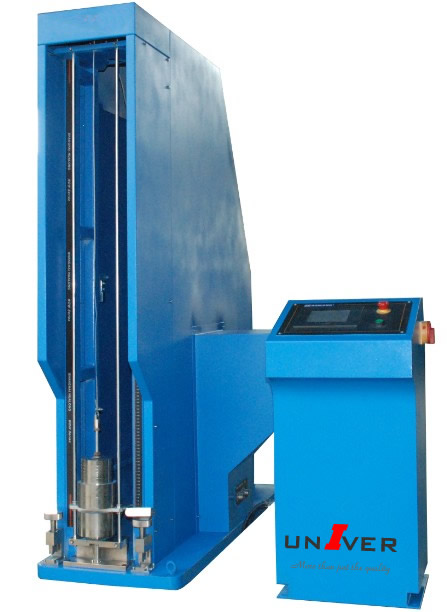

UNIVER CIT-1000 Series Optical Fiber Cable Impact Testing Machine is intended to determine the ability of optical fiber cable withstand impact, it has a hammer with a 25mm rounded edge to drop vertically on a cable sample fixed on a flat steel plate. It also allows a single or multiple repeated impacts to be imparted on the cable sample. the energy of the impact is determined by the drop height and by the weight of the hammer.
Max. Drop height |
mm |
1000 |
Max. impact cycles |
Cycles |
1-9999 |
Frequency range |
Cycles/min |
10-30 |
Mass of weights |
kg |
0.5, 1, 2, 3, 6 |
Dimensions (L*W*H) |
| |
Working frame |
mm |
1500*720*1500 |
Control console |
mm |
400*300 * 800 |
|
| |
Power |
|
3-phase 4-wire, 50Hz, 1kW. |
