| Usage: | Optical Cable Tensile & Crush Testing Machine |
|---|---|
| Power: | Electronic |
| Model Number: | CTC-1000 |
| Brand Name: | UNIVER |
| Place of Origin: | China (Mainland) |
| CTC-1000: | 10-300kN |
Quick Details
Specifications

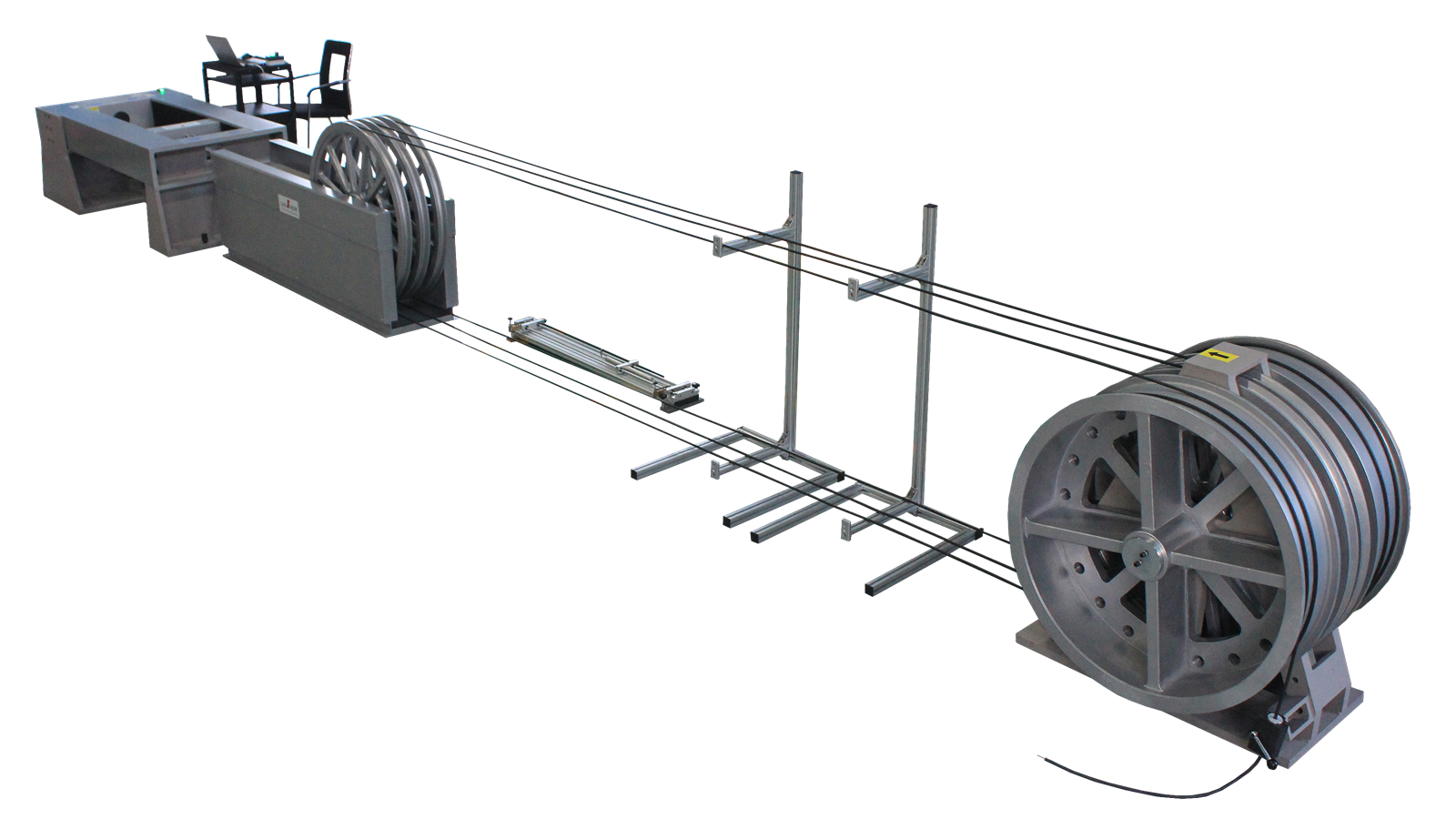

UNIVER CTC-1000 employ a bidirectional moving crosshead which can be used to perform both tension and compression (Crush) tests on optical cables; it also has an extensometer which is used to measure the elongation strain for optical cable under tension. In tensile test, the cable is wound in the machine over appropriately sized sheaves. the cable is pulled at a specified rate until a pre-determined tension is applied.
Load capacity |
kN |
10-300 (Others upon request) |
Accuracy class |
ISO 7500-1 |
±0.5% |
Crosshead travel |
mm |
800-1100mm |
Crushing platen |
mm |
100*100 |
Loading speed |
Mm/min |
0.2-300 |
Deformation measuring accuracy |
% |
±0.5% |
Displacement measuring accuracy |
% |
±0.3% |
Optional LVDT Type extensometer |
|
Gauge length:1000mm Measuring resolution is better than 10μm Accuracy is better than ±0.5%. |
General Specifications Load Measurement Accuracy: ±0.5% of reading to 1/100 of load weighing system capacity meets or exceeds the requirements of the following standards: ISO 7500-1, EN 10002-2, ASTM E4, JIS B7721. Strain Measurement Accuracy: ±0.5% of reading to 1/50 of full scale with most ASTM E83 class B or ISO 9513 class 0.5 extensometers meets or exceeds ASTM E83, ISO 9513, and EN 10002-4. Position measurement accuracy: ±0.01% of reading or 0.0001 mm, whichever is greater Power supply: Standard optional voltages 220/240VAC, 50-60 Hz, Power must be free of spikes and surges exceeding 10% of the nominal voltage. Operating Temperature: 0 to +38°C (+32 to +100°F) Storage Temperature: -40 to +66°C (-40 to +150°F) Note: 1. Power supply system is completely customizable. 2. Specifications are subject to change without notice. | ||
