| Cutting speed: | 0-90mm/min |
|---|
Quick Details
Specifications

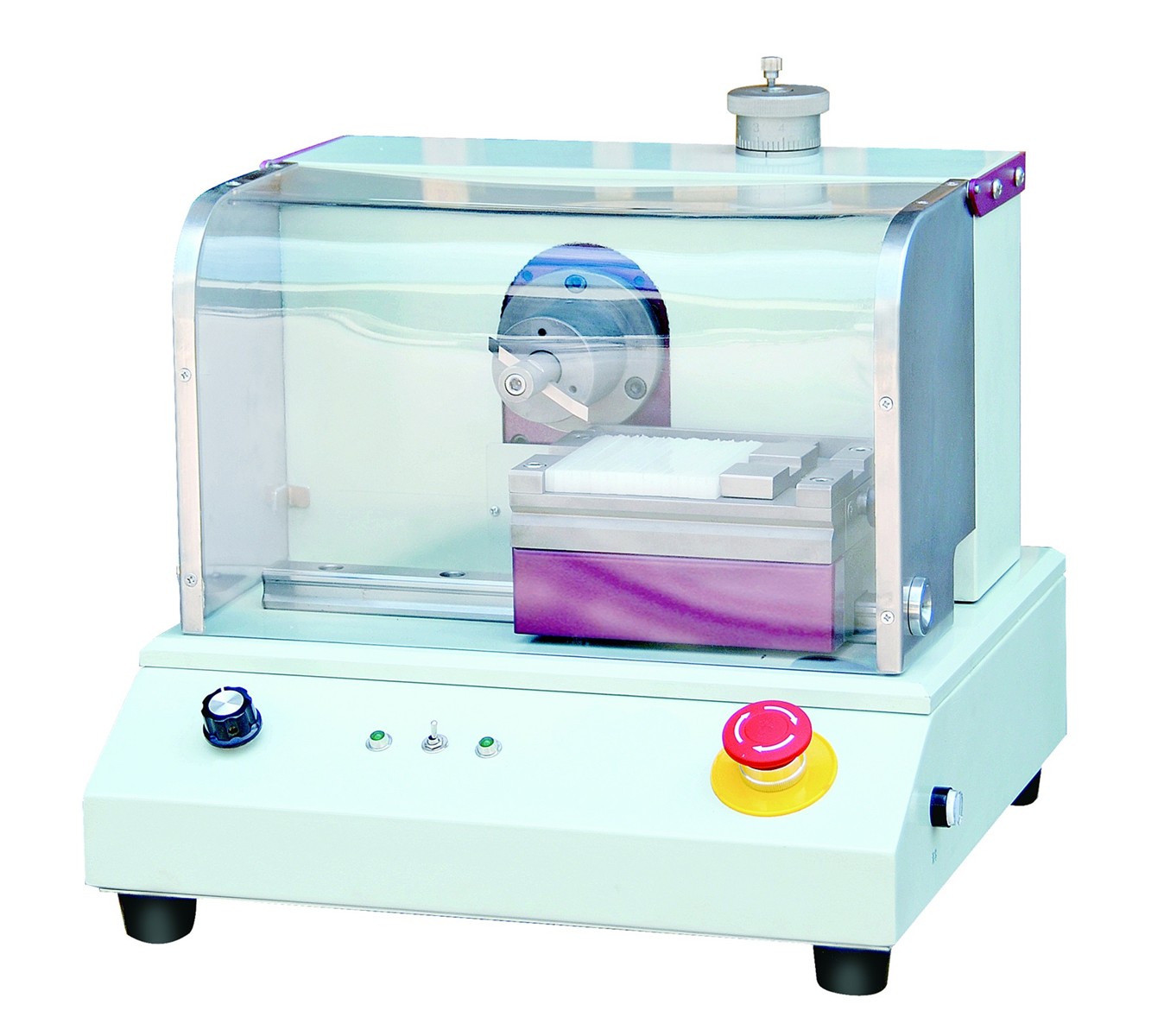

UNIVER NOK-21 Notch Making Machine is designed to make notch on plastic specimens according to ASTM D 256, ASTM D 6110, EN ISO 179, EN ISO 180 and EN ISO 8256 for both Charpy and Izod tests, it features automatically feed specimens into cutter, and up to 20 specimens could be finished in one lot.
Cutting speed |
0-90mm/min |
Specimen dimensions |
80mm*10mm*4mm/upon request |
Notch type |
Type A: 45o±0.2 o r=0.25mm ± 0.05mm(standard) Type B: 45o±0.2o r=1.00mm±0.05mm(option) Type C: 45°±0.2° r=0.1±0.02(option) |
Machine dimensions |
400mm*270mm*300mm |
Power |
Single phase 220V/50HZ |
