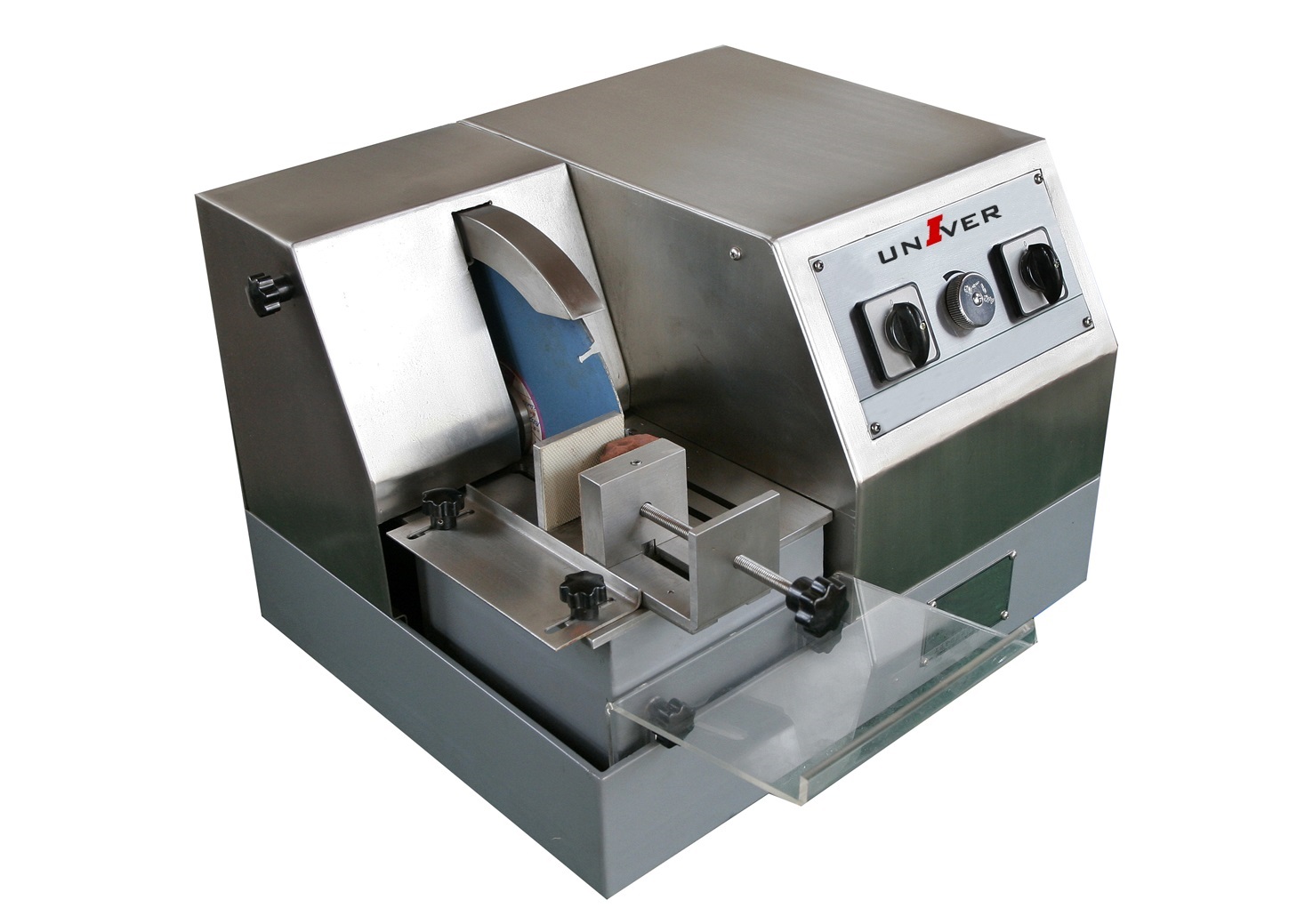

UNIVEROffer an economical solution to your metallographic sample preparation needs. the UQG-2 Manual Abrasive Cutter is designed to use in cutting petrographic material. with Simple operation (Manual operation), Reliability (Electronics completely isolated from wet environment of cutting chambers), Chop Action (Manual chop handle, provides tactile feedback), Safety (Hood lock prevents cutting while hood is open and locks hood shut while machine is operation) and Cooling system (Recirculating tank included).
Technical Specifications Abrasive Cutters are the most commonly used sectioning device. When selecting your abrasive cutter, consider the sample size, volume of sectioning required & the variety of parts. | |
Model |
UQG-2 |
Max. Wheel Diameter |
250×2×32 mm |
Wheel Speed |
1400r/min @ 50Hz; 1700r/min @ 60Hz |
Wheel movement |
Z-axis |
Cutting Capacity |
65×65 mm |
Cut types |
Chop |
Controls |
Manual |
Motor |
AS8034, 1.1kW, AC380V, 50/60Hz |
Dimensions |
490×600×330mm |
Weight |
45kg |
