Specifications

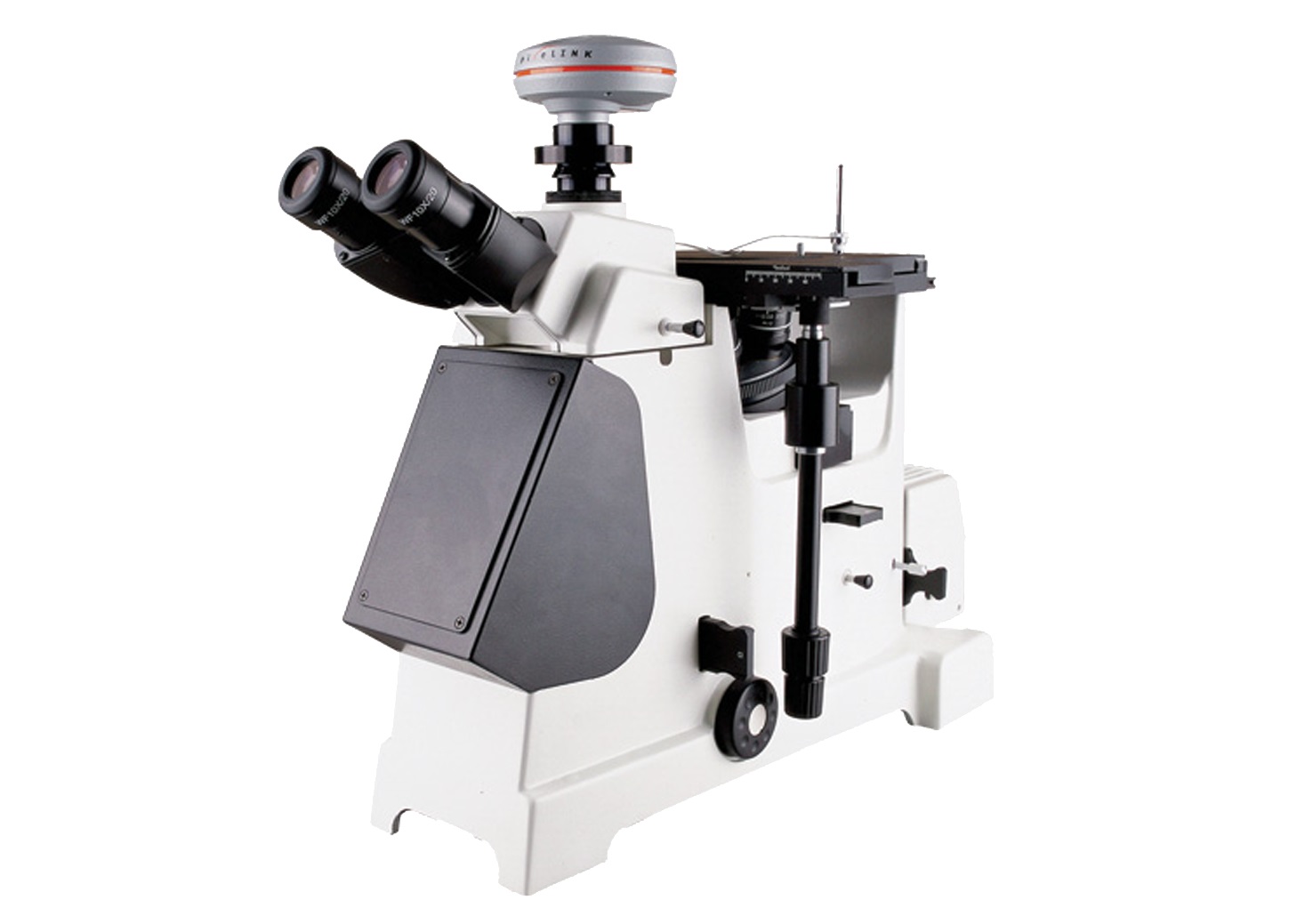

the METAM LV is an Inverted Industrial Microscopes which is used for metallurgical analysis. with excellent infinite optical system, Ideal for quick placement and viewing of mounted flat samples, ○ grain size reticule that appears through eyepiece and on monitor, High numerical aperture CFI optics for optimal performance across all observation modes, Comfortable and Enjoyable Operation with low and Repetitive Position Control knob, Can be configured for various modes of operation: BF, DF, DIC, etc.

Technical specifications
Model	METAM LV
Optical System	Infinite optical system
Eyepieces	EW10x / 20	●
	EW10x / 20 (Cross division)	●
	EW15x / 16	○
	EW20x / 12	○
Objectives	5x / 0.17 /∞/ -, (BF/DF), WD: 8.6mm	●
	10x / 0.28 /∞/ -, (BF/DF), WD: 3.4mm	●
	20x / 0.5 /∞/ -, (BF/DF), WD: 1.1mm	●
	50x / 0.85 /∞/ -, (BF/DF), WD: 0.5mm	●
	100x / 0.95 (Dry) /∞/ -, (BF), WD: 0.1mm	●
	100x / 1.32 (Oil) /∞/ -, (BF), WD: 0.1mm	○
Viewing Head	Trinocular Head, at 30°	●
Illumination	12V/100W Halogen Lamp (Center, brightness adjustable)	●
	Polarizer and analyzer	●
	Differential interference contrast (DIC)	○
	Built-in Green, Blue, Yellow, Gray and ground glass filters	●
Focusing Systems	Coaxial Fine & Coarse Adjustment, Fine: 2um	●
Nosepiece	Quintuple nosepiece	●
Stage	Double layer mechanical stage 200×190mm, Moving range: 40×40mm	●
Stage	Small-Stage: Φ16, Φ40, Teardrop	●
Accessories	Photo/Video attachment	○
Accessories	Micrometer scale 0.01mm	●
Cameras	with software	○
Software	Image processing software	○
●: Standard,○: Optional
