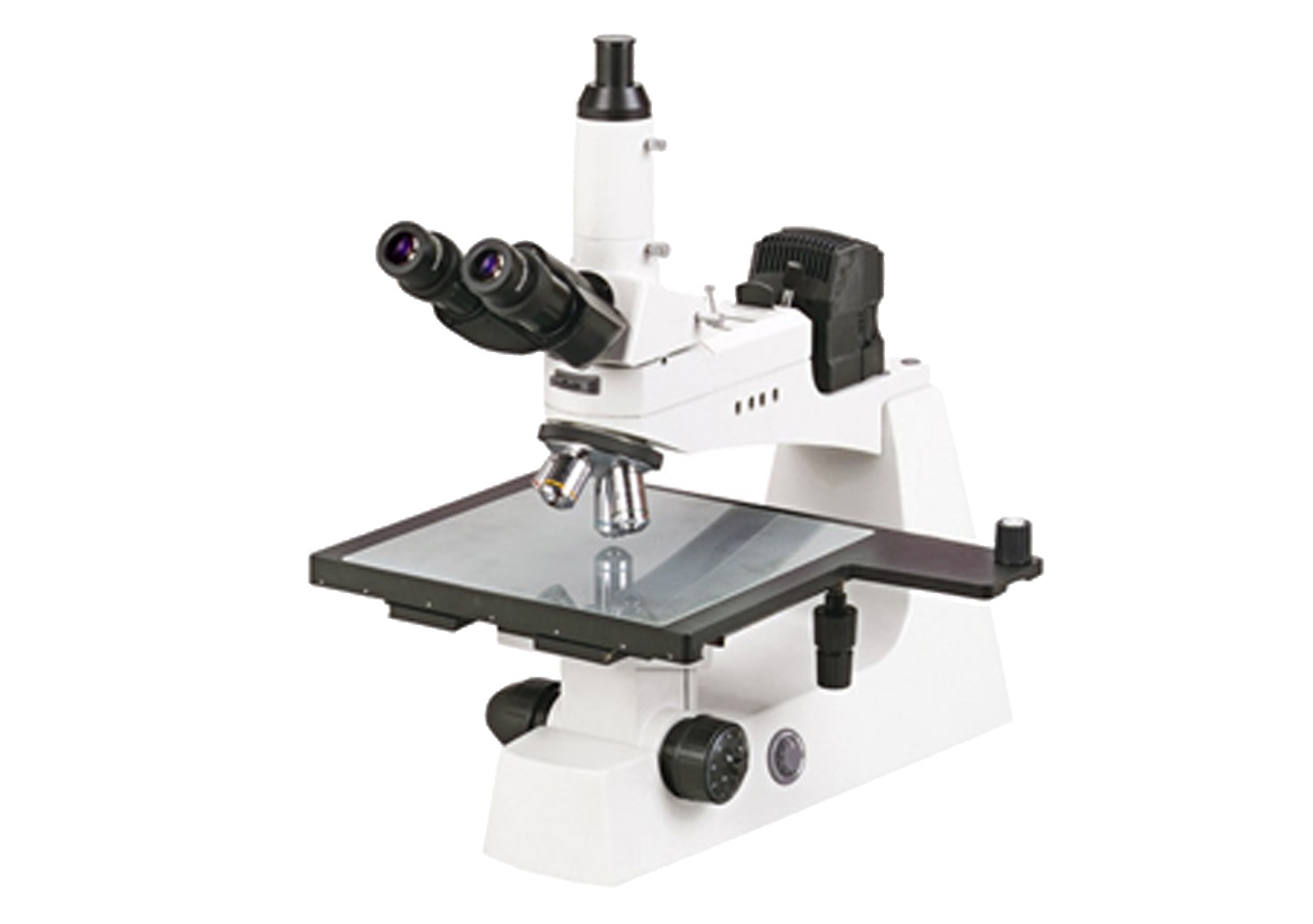

the NJC-160 is an Upright Industrial Microscopes which is used for observation and test with large integrated circuit. with excellent infinite optical system, Ideal for quick placement and viewing of mounted flat samples, ○ grain size reticule that appears through eyepiece and on monitor, High numerical aperture CFI optics for optimal performance across all observation modes, Stand is designed to reduce electrostatic discharge for sensitive applications. Comfortable and Enjoyable Operation. Variety of stages, illuminators and nosepieces are available.

Technical specifications

Model

NJC-160

Optical System

Infinite optical system

Eyepieces

EW10x / 22

●

Objectives

4x / 0.10 /∞/ -,                  WD=17.8mm

●

5x / 0.12 /∞/ -,                  WD=15.5mm

○

10x / 0.25 /∞/ -,                WD=10.0mm

●

20x / 0.40 /∞/ -,                WD=5.10mm

●

40x / 0.60 /∞/ 0,               WD=2.90mm

●

50x / 0.75 /∞/ -,                WD=0.32mm

○

100x / 0.80 /∞/ 0,             WD=2.00mm

○

Viewing Head

Trinocular Head, at 30°

●

Illumination

6V/20W Halogen Lamp (Brightness adjustable)

●

Polarizer and analyzer

○

Built-in Green, Blue, Yellow and ground glass filters

●

Focusing Systems

Coaxial Fine & Coarse Adjustment, Stroke: 24mm

●

Nosepiece

Quadruple nosepiece

●

Stage

Mechanical stage 300×268mm, Moving range: 250×250mm

●

Interface

Standard C

○

Cameras

with software

○

Software

Image processing software

○

●: Standard,○: Optional
