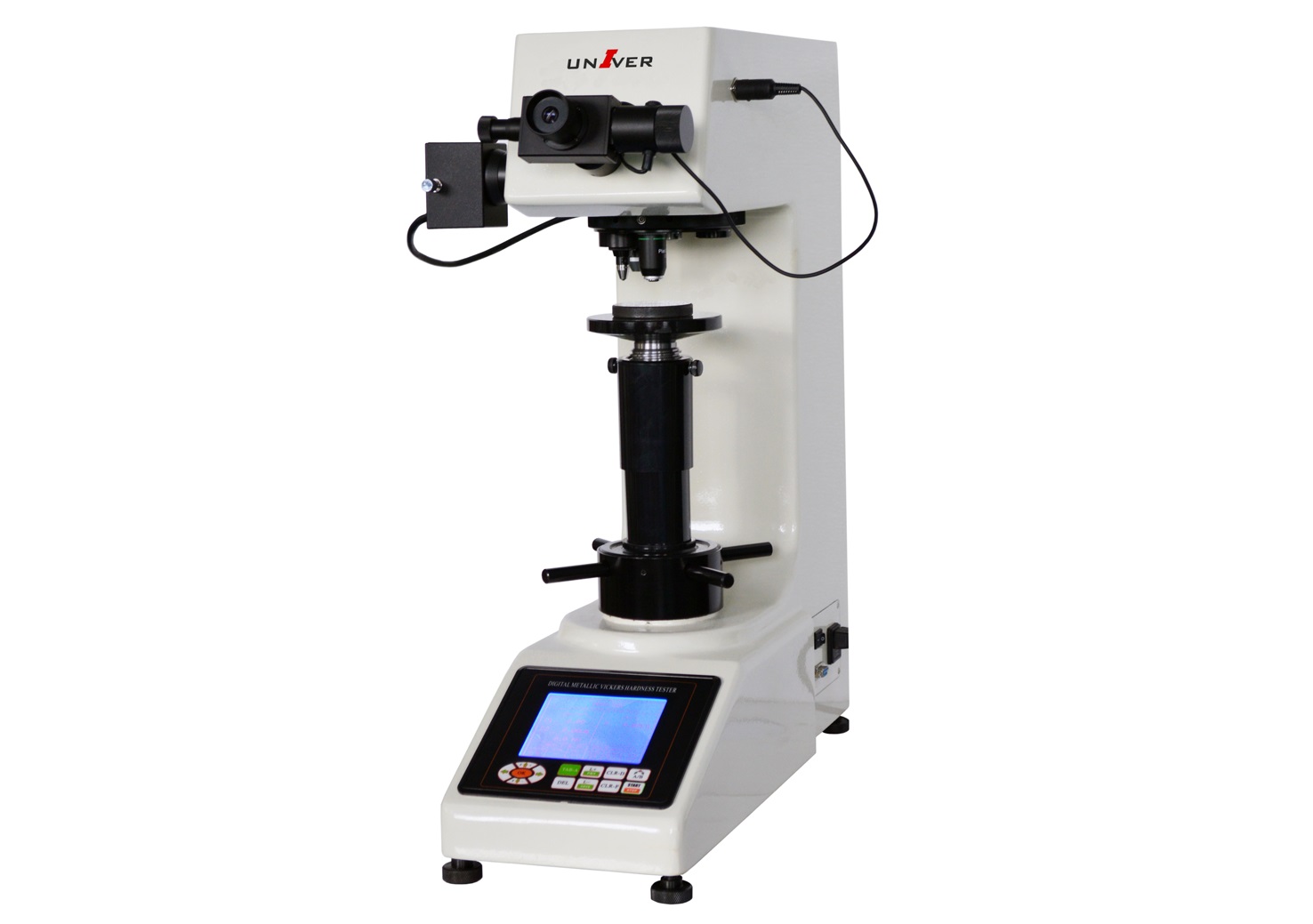

UNIVER MVH-50ZVickers Hardness testers offer a versatile and user friendly solution for a wide range of micro-hardness scale testing. Equipped with a six position turret which includes two indenter position as well as a 10x and 20x objective. USB or RS232 output, nine dial selectable test forces and an innovative touch panel user interface for rapid test method handling and data collection.
Model |
MVH-50Z |
Hardness scales |
HV |
Main-load |
9.807N [1kgf] – 490.3N [50kgf] |
Test cycle type |
Motorized dead weight |
Loading control |
Automatic (Loading/Dwell/Unloading) |
Dwell time |
0-60s (Incremental: 5s) |
Max Specimen Dia. |
Height: 170mm |
Objectives |
10x, resolution: 1.0um 20x, resolution: 0.5um |
Total magnification |
100x, resolution: 0.25um 200x, resolution: 0.125mm |
Switching Objectives and Indenters |
Automatic |
Data-out |
USB or RS232 |
Camera Software |
Optional available from basic camera kit to full automatic system. Contact UNIVER for more information. |
Standards Compliant |
ISO 18625, ASTM E140 and other international standard |
Dimension |
530×280×630mm |
Machine gross weight |
31kg |
Power |
AC110-220V, 60/50Hz |
