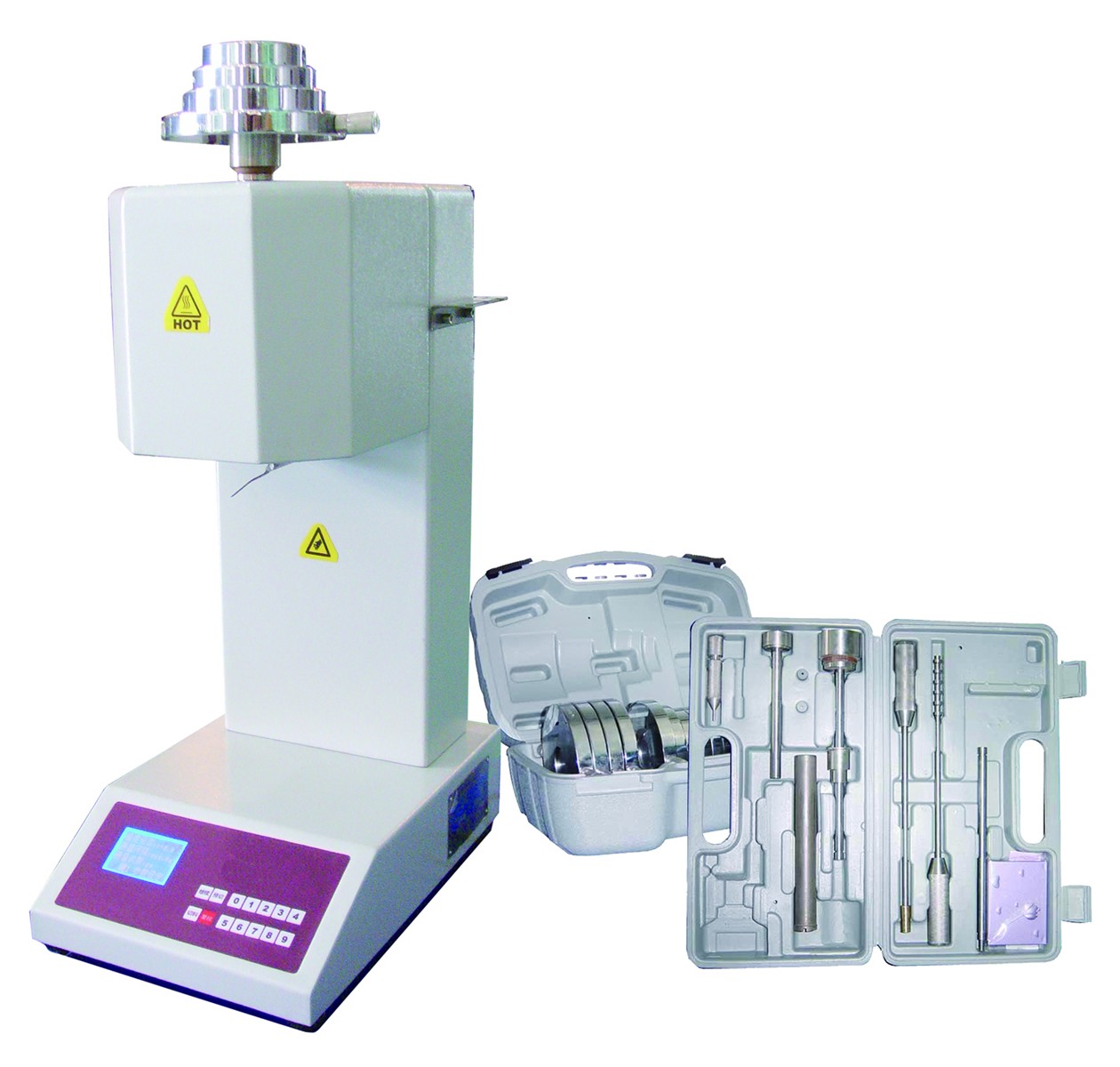

UNIVER MFI1211 Series Melt Flow Index Tester/Extrusion Plastometer is designed for the determination of the melt mass-flow rate (MFR) of thermoplastics, MFI1211 features the latest in melt flow measurement technology and allows operators to quickly and easily set up and perform melt flow tests: according to, ISO 1133, ASTM D1238 method A and other international and industrial specifications.MFI1211 features a user-friendly back-lit LCD display and a membrane keyboard, operators can configure the options available for the machine and program user settings. It has a motorized cut off will automatically cut the extrudate at user preset intervals.
System conformance |
ISO 1133, ASTM D1238 method A | |||||||
Measuring range |
0.1-100g/10min | |||||||
Timer resolution |
0.01sec | |||||||
Operating temperature |
120 ℃--450℃ | |||||||
Temperature control |
≤0.5℃ | |||||||
Spatial temperature variation |
≤0.5℃ | |||||||
Temperature raising time |
＜30 min | |||||||
Temperature resolution |
0.1℃ | |||||||
Power |
1Ph-220V/50Hz | |||||||
|
| |||||||
Accessories |
| |||||||
|
| |||||||
Name |
Quantity | |||||||
Piston Rod |
1 | |||||||
Die |
1 | |||||||
Die Cleaning Tool |
1 | |||||||
Cut-off knife |
1 | |||||||
Cleaning Tool |
1 | |||||||
Lever Meter |
1 | |||||||
Guiding Bushing |
1 | |||||||
Funnel |
1 | |||||||
Cylinder |
1 | |||||||
Spanner |
1 | |||||||
|
| |||||||
Dead weights |
| |||||||
|
| |||||||
Weights |
600g |
875g |
960g |
1000g |
1200g |
1640g |
2500g |
5000g |
Quantity |
1 |
1 |
1 |
1 |
1 |
1 |
2 |
2 |
