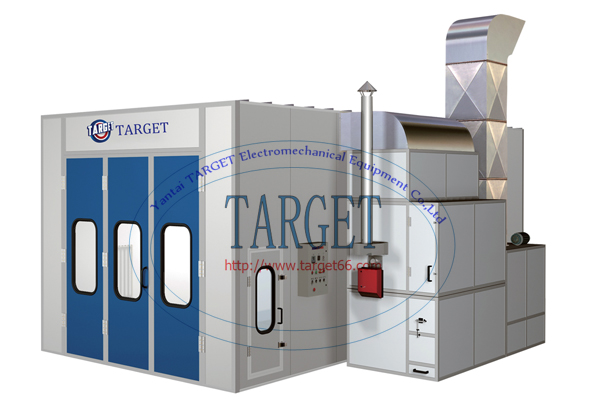

Spray BoothMini Truck Diesel BurnerTG-09-45

Inside dimension

9200x4500x3500mm(L×W×H)

Outside dimension

9344x6396x4100mm(L×W×H)

Wall panel

Thickness: 70mm, width: 710mm, tongue and groove interlock structure, with Polystyrene(EPS) insulation inside, colour: white.

Doors

Folding door, 3 folds main door, 3500×3400 mm(WxH), galvanized steel cover frame, with polystyrene(EPS) insulation inside, colour: blue.

Escape door : 1 unit , 800×2000mm(WxH), colour: white.

Basement

Without basement. 2 rows of pits in the ground for exhaust air, dimension of each pit is 6900x760mm(LxW), with galvanized grilles made by twisted steel and flat bar above.

Intake air system

2x7.5KW double-intake centrifugal fans for intake air, model is YDW4.5M,

Total air capacity is 42000M3/h.

Exhaust air system

1x11KW double-intake centrifugal fans for exhaust air, external motor, belt-drive,

Model TAE-710H, air capacity is 36000 M3/h.

Damper actuates

Manual damper actuates from spraying to baking cycle, manual damper for exhaust air.

Heating system

RIELLO RG5S diesel burner, stainless steel heat exchanger. Max. Heating productivity: 260000Kcal/h. Max. Working temperature : 80℃.

Filter system

Pre-filter, ceiling filter, exhaust fiberglass filter, activated carbon filter.

Filtering area

31M²

Lighting system

Ceiling lights: 12units x 4 pcs=48pcs x 36W, with electronic ballasts.

Side lights: : 12units x 4pcs=48pcs x 36W, with electronic ballasts.

Control system

Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hour meter, temperature limit controller, pressure gauge, exhaust reduction voltage motor start.

Total power

30.5Kw
