OEM Wireless Solution Released! The wifi solution is 100% OEM as dealership ones, you can choose both USB (LAN) connection and Wireless (WLAN) function.

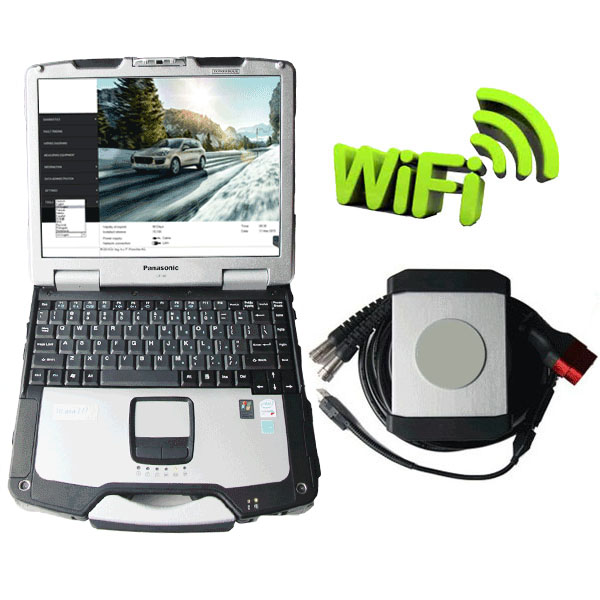

 comes with Panasonic CF30 Laptop, software preinstalled, can work for all porsche from 1996 to 2015 via USB cable and Wireless.





Panasonic CF30 we offer:

Refurbished Panasonic ToughBook CF-30 MK3

13.3" LCD XGA(LED BACKLIGHT)(1024x768)

TouchScreen- reacts to finger touch and Pen

Intel Core 2 Duo L7500 1.6GHZ(Dual Core)

320GB Sata HDD

2GB RAM



For the Piwis II Wifi Settng, firstly you need connect the USB cable to laptop, then setting in [VCI Config] by inputing the SSID and Password of router.

A prerequisite for using wLAN is the availability of a suitable infrastructure. The workshop safety
guidelines must also permit the use of radio networks.
Connect the VCI to the PC using the supplied USB cable and start the VCI configuration software.
This can be accessed via the relevant link in the basic software.
The necessary setup steps are described separately in the section entitled wLAN configuration.

In order to establish a wLAN connection, the USB connection must be removed once
configuration has been completed successfully.
This is because once established, the USB connection is always active.

TIPS FOR CONFIGURING THE PIWIS II WIFI ROUTER

Only use IP addresses approved for local operation (e.g. 192.168.x.x) in the local wLAN/LAN
Example:
Network: 192.168.1.0, subnet mask 255.255.255.0
? Addresses that can be used: 192.168.1.1 up to 192.168.1.254
? Router address (gateway): 192.168.1.254
? Client addresses (e.g. VCI, laptop): 192.168.1.1 up to 192.168.1.100 (max. 100 participants)

Our advantage:

1. Our price is very competitive advantage

2. Our computer is the latest(CF-30)

3. The PC screen start with Porsche welcome image

4. Support full languages and 90 days time unlock (Never expire)

5. Support all Porsche cars till 2016

6. Software update by CD for ONE YEAR FREE!

7. Can install Printer

8. Can work with Laptop via USB Cable and Wireless.

9. This Wifi Piwis II we sell is best quality which is made in Taiwan, and it is  Semtec Hardware, which is 100% same as the porsche dealer has, not J2534 hardware, the J2534 FTDI hardware comes with different PCB,  and it has no certification make it is not able work with all modules, not support online functions.
