I. Brief Introduction

SD Series Part-turn Electric Actuator can be used to control various valves with angle of 90, Output Torque is 100-30000Nm, such as butterfly valve, ball valve, louver valve, damper, plug valve, baffle valve etc.

II. Main technical performance

Type	OA as BS A+RS B+RS
Output Torque	100136000N.M
Effective turning angle	ADjustable range is 0105
Control accuracy	Basic error1%; Return difference1%;Dead area1%
Adjustable range of working travel	" zero point" 10% " travel"35%110%
Impedance of input channel	250
Input channel	1 (divided into 3).
Display mode	LED digital code (customize LCD according to customer requirement)
Level of protection	IP55IP68
Relative Humidity	95%
Environmental gas	No corrosive gas
Mechanical vibration	XY210G. 0.234Hz. 30minutes
Power cable	S=1.5mm4mm
Signal cable	S=1.5mm
Cable entry	PG16 PE3/4
Special requirement	If you have special requirements for travel time, connection size, control mode, environment temperature and others, our company can produce customized product specially.

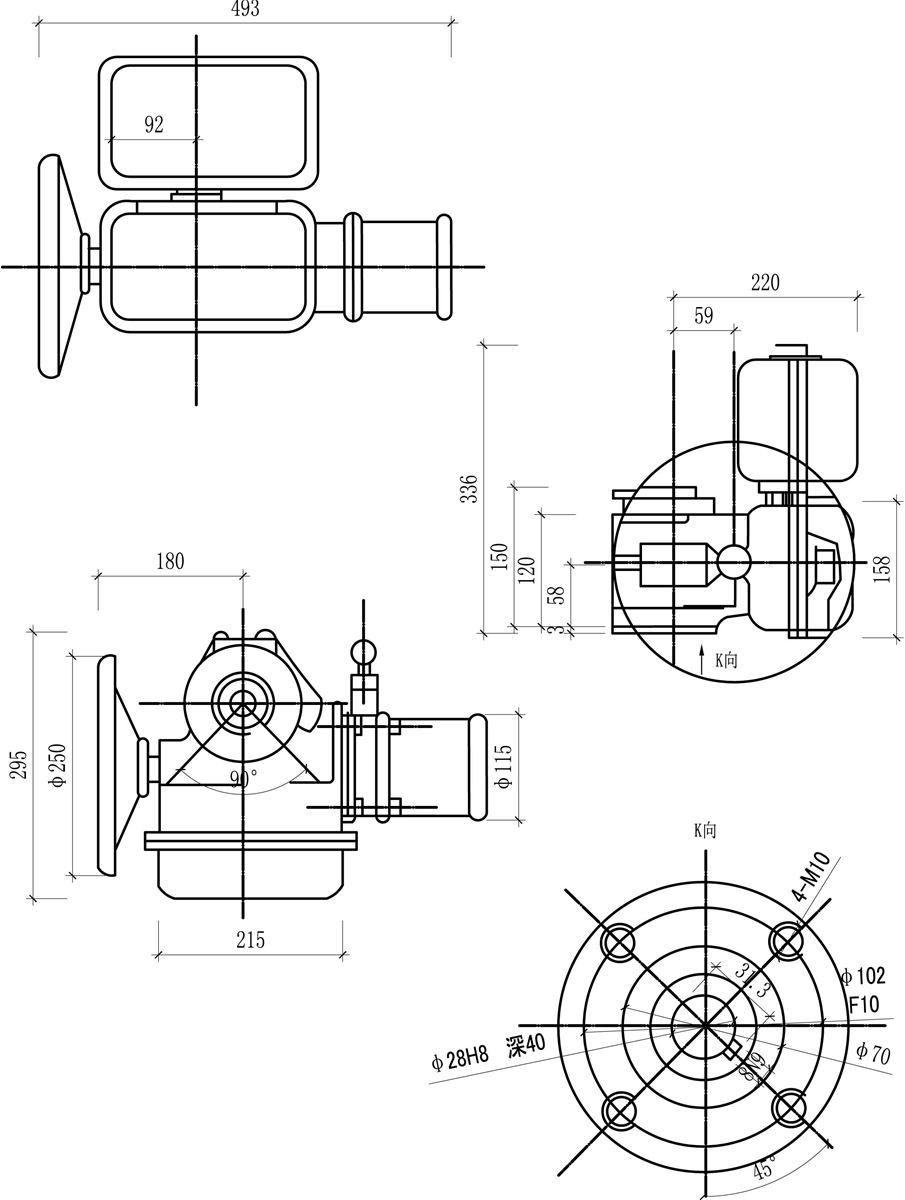

III. 100-600Nm qUarter-turn direct-Mounted dimension diagram

as-25 direct-mounted

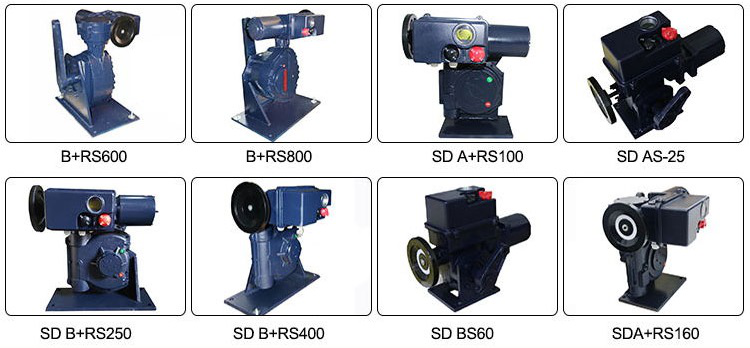

V. Related product

IV. Our company

Tianjin Freya Automation Technology Co., Ltd., located in the North Central Industrial Park in Xiqing district of Tianjin, China, is a national high-tech enterprise mainly dealing with the R&D, manufacturing and marketing of the intelligent electric actuator, electric valve actuators, and electrical valves.

Adhering to the strategic principle, "quality is the foundation of product manufacturing, Freya has kept carrying out R&D on its products and has already adopted the Europe CE Certification and cooperated closely and widely with dozens of designing institutions and research institutes in the country. Freya

Boasts internationally advanced flow production line, sophisticated CNC machining center and complete testing equipment; and carries out manufacturing following the international standard management system ISO9001 2000(CQC) and the Japanese 5S standard.

Freya distributes its products to places across the country and exports them to countries like Vietnam,Malaysia, Indonesia, Pakistan, Kazakhstan and Iran. Freya aims to manufacture various products under the industrial process control and to various working conditions. Freya is willing to take challenge!

V. Our factory


VI. Our service
Our company provides you with the following services free of charge:

1. All-round electric actuator and valve technology selection service

2. High-quality post-product maintenance and technical analysis services

3. Accept other related cooperation
VII.RFQ
Question: how long is your products quality warranty?Answer: We provide one year factory quality warranty.

Question: Are you a trader or manufacturer?

Answer: We are a direct factory who can give competitive price and control the quality.

Question: Can I get the catalogue and dimension drawing?

Answer: Contact our sales person and all technical files will be given promptly.

Question: What is your payment term?

Answer: We accept a variety of payment terms, such as TT, L/C, West Union, Paypal, Cash against Documents, etc.

Question: how to place a sample order?

Answer: It is our pleasure to offer sample order even free of charge for valves and electric actuators in small sizes. Y ou can send your enquiry with detailed specification, including type, nominal diameter, nominal pressure, material, and connection, etc.
