Quick Details

Gender: male and female
Application: electronicstele., medical equipmet, aviation...
Type: plugs and sockets
Brand Name: raymo
Color: silver, black
Model Number: FGG, EGG
Place of Origin: China (Mainland)
shell size: 0K/1K/2K
multi: 2-30 pins
Protection grade: IP 68
Contact type: solder, print or crimp
Male and female contacts: Brass with gold-plated
body material: brass with nickel-plated
ourter shell plated: nickel, chrome, black-chrome
keying: 0, 30, 45, 60
Insulator: PPS
certificate: CE, RoHS, ISO9001

Specifications

RAYMO waterproof IP67 68 FGG EGG replacement push pull  lemo compatible connector

Model no: RM-FGG, RM-EGG
Description:Raymo RM-K series straight cable plug, panel mount socket, 2-30 pin, male/female contact, IP68.

Working voltage (CONTACT to CONTACT):
850V
Test Voltage (CONTACT to SHELL):
650V
Current rating(per pin):
2.5A
Shielding (min):
75 dB (10 MHz)
Shielding (min):
40 dB (1 GHz)
Pop (maximum):
60 bar (870psi)
Temperature:
-40 deg. C minimum
Temperature:
200 deg. C maximum
Humidity:
<95% at 60 deg. C/140 deg. F (maximum)
Shock resistance:
100g (6ms)

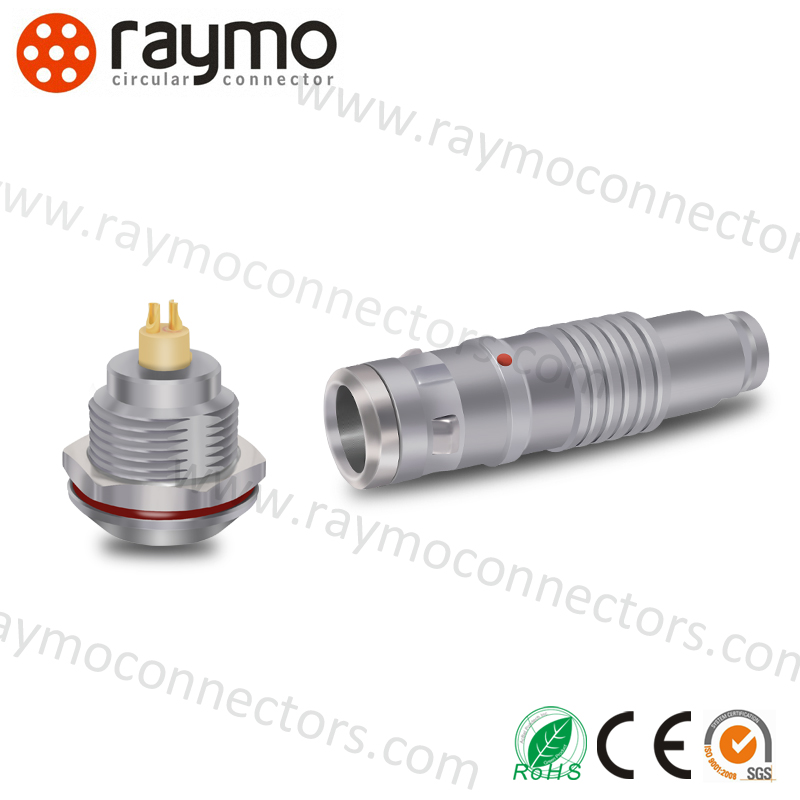

waterproof IP67 68 FGG EGG replacement push pull lemo compatible connector

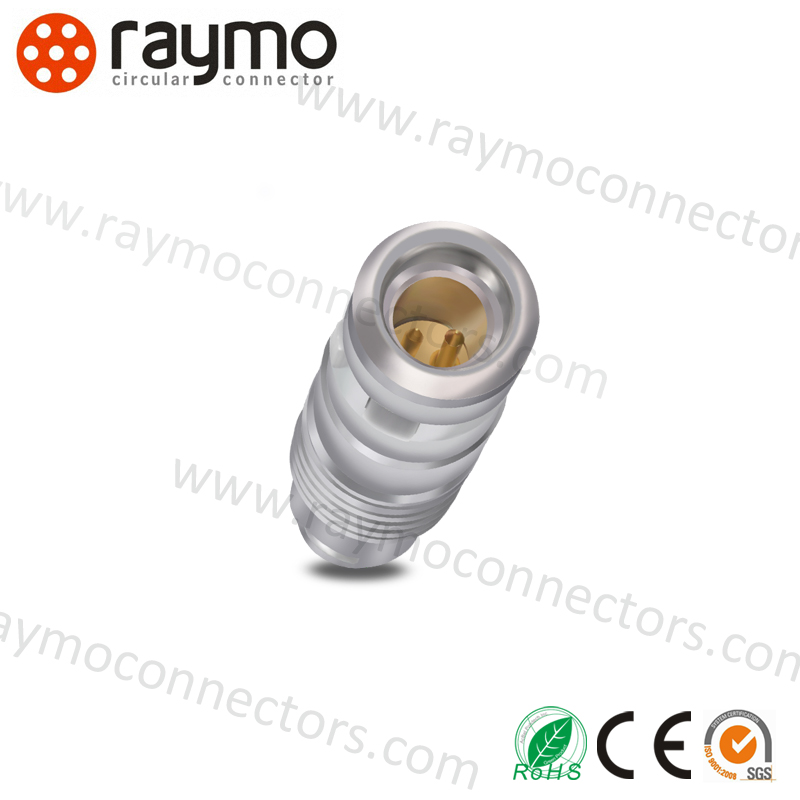

waterproof IP67 68 FGG EGG replacement push pull lemo compatible connector

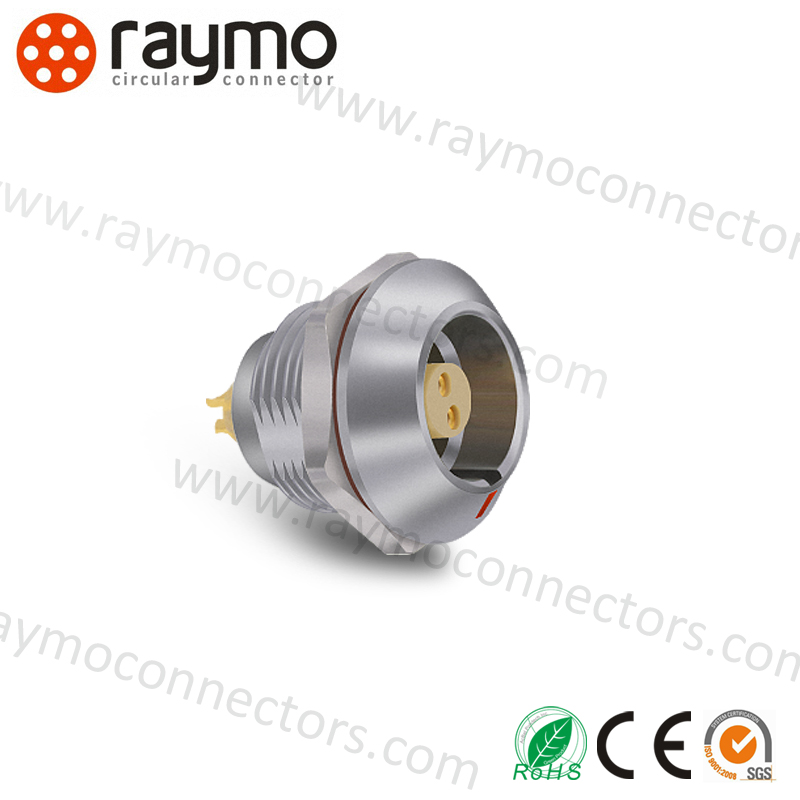

waterproof IP67 68 FGG EGG replacement push pull lemo compatible connector
Brief intruduction
  • Series K Metal circular connectors in many size and outer diameter
  • 360° angle screening for full EMC shielding
  • Compatible with connector series K Which with a self-latching system for easy operations and watertight type
Application

RAYMO's high quality connectors are found in a variety of challenging applications and environments including:Automotive,  Audio-video,  Aviation,  Communications,  Industrial Control,  Information Systems,  and  Machines, Medical, Military,  Test and Measurement,  Data Acquisition,  Data Transfer Equipment.  Module Power,  Sensor, Sensor Systems Instrumentation,  Analysis Application.

Specifications
Insert configuration: 2 to 32 pins
Shell size: #0, 1 or 2
Contact type: Solder, print or crimp
1 key: Alpha: 0°
2 keys: Alpha: 30, 45 or 60°
Protection grade: IP66 to 68
Contacts material: Bronze beryllium and gold-plated surface
Housing material: Nickel-plated brass
Collet: Nickel-plated brass
Insulator material: PPS and PEEK
Compatible with series K/FGG/PHG/EGG such as: FGG.0K.302, FGG.0K.303, FGG.0K.304, FGG.0K.305, FGG.0K.306, FGG.0K.307, FGG.0K.309, FGG.1K.302, FGG.1K.303, FGG.1K.304, FGG.1K.305, FGG.1K.306, FGG.1K.307, FGG.1K.310, FGG.2K.302, FGG.2K.303, FGG.2K.304, FGG.2K.305, FGG.2K.306, FGG.2K.307, FGG.2K.314
PHG.0K.302, PGG.0K.303, PGG.0K.304, PHG.0K.305, PHG.0K.306, PHG.0K.307, PHG.0K.309, PHG.1K.302, PHG.1K.303, PHG.1K.304, PHG.1K.305, PHG.1K.306, PHG.1K.307, PHG.1K.310, PHG.2K.302, PHG.2K.303, PHG.2K.304, PHG.2K.305, PHG.2K.306, PHG.2K.307, PHG.2K.314
EGG.0K.302, EGG.0K.303, EGG.0K.304, EGG.0K.305, EGG.0K.306, EGG.0K.307, EGG.0K.309, EGG.1K.302, EGG.1K.303, EGG.1K.304, EGG.1K.305, EGG.1K.306, EGG.1K.307, EGG.1K.310, EGG.2K.302, EGG.2K.303, EGG.2K.304, EGG.2K.305, EGG.2K.306, EGG.2K.307, EGG.2K.314
FGG, FAG, FHG, PHG, EGG, EGA, ECG, ECA, EPG, EXG, K/S/F/SC series, ODU, Fischer, Hirose, binder and redel connectors
Our Services

1/  Lemo compatible connector:

  • Standard B series:                                                                                                                                                  plug:      FGG,FEG,FHG,FAG,FNG;                                                                                                                          socket:  EGG,ECG,PHG, EEG,EHG,HGG,HHG,HEG,PFG,EPG,EXG
  • IP 68 Waterproof/watertight K series:  FGG, PHG, EGG,EEG
  • Half-moon insert S series: FFA,ERA,PCA
  • Plastic P Series: PAG,PKG,PRG



2/ Hirose:  HR10A-7P,HR10A-10P,HR10A-7R,HR10A-10P,HR10A-7J,HR10A-10J

3/ fischer: 102, 103, 1031, 104 SERIES

4/ binder M16: 581 series, 680 series

5/ odu/ Weipu/ BNC connector.



3/ All of the above cOnnectors with cAble Assembly.
