| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 yeare |
| Certification: | new |
| Weight: | 600kg |
| Dimension(L*W*H): | 600*900mm |
| Power(W): | 1.5kw spindle |
| Voltage: | 220V 50/60HZ |
| Model Number: | NC-6090 |
| Brand Name: | NICE CUT |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
| Condition: | New |
| working area: | 600*900mm |
| type: | cnc router 600 x 900 |
| control system: | pc control |
| control softwar: | artcam |
| cooling method: | water cooling |
| accuracy: | <0.03mm |
| supplier: | factory direct sale |
Quick Details
Specifications
NC-B6090 cnc metal milling machine cnc router 600 x 900
1.cnc router 600*900mm
2.1.5kw water cooling spindle
3.PVC +T-slot table
4.PC/DSP controllor
5.customer made
6.CE Certificate
CNC Router information for you:
|
NO.
|
Discription
|
Parameter
|
|
1
|
X,Y,Z Working Area
|
600x900x120mm
|
|
2
|
Table Size
|
720X1135mm
|
|
3
|
X,Y,Z Traveling Positioning Accuracy
|
±0.03/300mm
|
|
4
|
X,Y,Z repositioning Positioning Accuracy
|
±0.05mm
|
|
5
|
Lathe Structure
|
Cast Aluminum
|
|
6
|
X, Y Structure
|
Shaft Linear Bearings and Ball Screw
|
|
7
|
Z Structure
|
Ball Screw
|
|
8
|
Max.Consume power
|
3.0Kw
|
|
9
|
Max.Speed
|
0-6000mm/min
|
|
10
|
Max.Working Speed
|
0-3000mm/min
|
|
11
|
Spindle Power Motor
|
1.5Kw Chinese (1.5Kw HSD spindle)
|
|
12
|
Spindle Speed
|
0-18000RPM
|
|
13
|
Working Mode
|
Stepper
|
|
14
|
Working Voltage
|
AC220V/50/60Hz
|
|
15
|
Command
|
G code, *uoo, *mmg, *plt
|
|
16
|
Operating System
|
DSP System
|
|
17
|
Interface
|
USB
|
|
18
|
Flash Memory
|
128M
|
|
19
|
Collet
|
ER18
|
|
20
|
X,Y Working Delicacy
|
<0.01mm
|
|
21
|
Software
|
Type3 software, Wentai software, Artcam software
|
|
22
|
Running circumstance
|
Temperature: 0~45
Relative humidity: 30%~75% |
|
23
|
Packing Size
|
1710X1200X1495mm
|
|
24
|
Net Weight
|
190KG
|
|
25
|
Gross Weight
|
252KG
|
|
All parameters above subject to change without prior notice
|
||

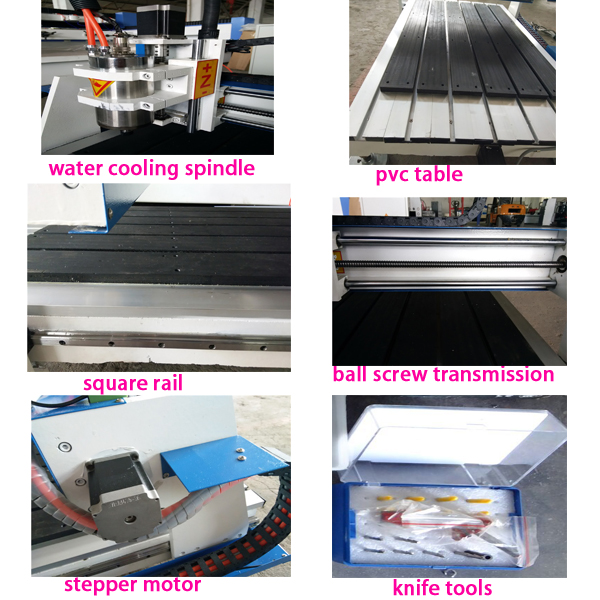

Important parts show :
Samples show:
