| Feature: | Tower Crane |
|---|---|
| Certification: | CE, ISO, GOST, CU-TR |
| Brand Name: | HYCM |
| Max. Lifting Height: | 162m |
| Max. Lifting Load: | 10 tons |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 12 months from BL date |
| Model Number: | QTd5020 Luffing Tower Crane |
| Place of Origin: | China (Mainland) |
| Span: | 50m |
| Rated Lifting Moment: | 1250KN.m |
| Rated Loading Capacity: | 10 tons |
| Application: | buildings construction, civil buildings |
| Type: | Max Load 10 Ton Tower Spider Luffing Portal Construction Lifter Crane QTD5020 Tower Crane 10tons |
| Rated Loading Capacity: | 10ton |
| Electrical elements: | Schneider Brand |
| Base type: | cross-beam, well-frame, outrigger or base with ballast |
| color: | yellow or as per your inquirements |
| counter-weight: | includes counter-weight frame |
| freestanding height: | 50m |
| Jib length: | 50m |
| Tip load: | 2.0tons |
Quick Details
Specifications
Max Load 10 Ton Tower Spider Luffing Portal Construction Lifter Crane QTD5020 Tower Crane 10tons
TEchnical PArameters for Max Load 10 Ton Tower Spider Luffing Portal Construction Lifter Crane QTD5020 Tower Crane 10tons
Main Performance |
1250 | |
Rated lifting moment (KN.M) |
10 | |
Max. Lifting load(t) |
2.0 | |
Tip load(t) |
5~50 | |
Lifting height(m) |
Freestanding lifting height |
50 |
Attaching height |
162 | |
Mast section |
Main limb (mm) |
∠200X200X20/ Q345B |
Section size(mm) |
2000X2000X3000 | |
Lifting jib |
Upper chord(mm) |
108X8 Seamless pipe / 20# |
Lower chord(mm) |
108X8 Seamless pipe / 20# | |
Counter jib |
Length(mm) |
8500 |
Hoisting mechanism |
Reducer |
37TLQ25 |
Motor |
YZTPF225M-4-J13021-37KW | |
Brake |
YWZ-300/45 | |
Wire rope |
6X37-16-1770-1-1 right lay | |
Hoisting speed (m/min) |
0-100 0-50 | |
Slewing mechanism |
Reducer |
XX4-120AI |
Motor |
YTW132-6-5.5KW | |
Slewing speed (r/min) |
0-0.6 | |
Trolleying mechanism |
Reducer |
30TLQ20 |
Motor |
YZTPF225M-4-J13021-30KW | |
Trolleying speed( m/min) |
0-10 | |
Jacking-up mechanism |
Hydraulic pump station
Jacking oil cylinder |
TQZ125/180/125 |
Motor |
11KW | |
Slewing bearing |
Type |
1600.45 |
Power supply |
380V/50HZ or as per your requirements | |
More products of HYCM Machinery are available
Tower Cranes
---- QTZ Topkit/Hammer Head Tower Cranes: Working jib from 30-75m and max.Load from 4-25t.
---- PT Topless/Flat Top Tower Cranes: Working jib from 30-80m and max.Load from 4-32t.
---D Luffing Tower Crane: Working jib from 25-60m and max.Load from 3-25t.
---WD Derrick Crane: load from 3t to 25t for disassemble inner climbing tower cranes.
SC Construction Man and Material Elevator
------ Rack and pinion elevator, special for the lifting work of construction Man and Material, 1000kg to 4000kg capacity, Passenger and Material, up to 200m..
SS Building Material Lift / Hoist
------ Wire rope lift, special material lifting work in construction site, 1000kg to 2000kg capacity, no passenger, up to 60m.
ZLP Suspended Platform
---most popular model ZLP630, ZLP800, ZLP1000 with or without L type
FAQ for Max Load 10 Ton Tower Spider Luffing Portal Construction Lifter Crane QTD5020 Tower Crane 10tons
Q1: What is the Warranty for tower cranes?
A1: for the tower cranes, we can supply 1 year warranty. If there is quality problem of any parts (excluding easy worn spare parts) on our side during this period, we will supply a new one by free for replacement
Q2: What is the mean of QTD for tower crane model? and please illustrate.
A2: QTD is classified according to China National Standard.
" Q" is the acronym of Crane in Chinese language (Qing Zhongji);
" T" is the acronym of Tower head type in Chinese language (Ta Shi);
and " D" is the acronym of luffing jib in Chinese language (Dong Bi).
for example: QTD125 (5020) means luffing jib tower crane, the rated lifting moment is 1250 KN.M (125 is 10-1 of the rated lifting moment). the working jib length is 50 meter and tip load is 2.0t when jib length is 50m.
Q3: What are the optional parts for your tower cranes?
A3: 1) Anemometer
2) Air conditioner for operation cab
3) Black box for operation cab
4) Remote control
5) Full VFD (Variable Frenquency Drive) control
Q4: how many types of foundation for your tower crane?
A4: the most popular types of foundation are Cross-beam type, Well-shaped type, Base with ballast type and Outrigger type.
by the way, our commonly used one is Cross-beam type. If you need any other type, please let us know when you make the order. Thanks!
Q5: how many countries had your tower cranes exported to?
A5: Our tower cranes had exported to more than 30 countries, such as Vietnam, Philippines, Indonesia, India, Sri Lanka, Cambodia, Russia, Kazakhstan, Brazil, Cyprus, Belgium, Madagascar, Thailand and Algeria etc.
Q6: how to confirm a suitable tower crane model?
A6: My dear friends, please let us know the below basic parameters to confirm tower crane model:
A. Building height or tower crane working height.
B. Max load capacity and tip load capacity.
C. Span or jib length
D. Other Special requirements, such as the power supply, foundation type, air condition and so on.
Q7: What is your trade items of Tower Crane?
Qingdao or Shanghai or according to Clients' need. We could accept 1 set of our products as your trial order.
If any question about tower crane, please feel free to contact us. We are waiting for you!

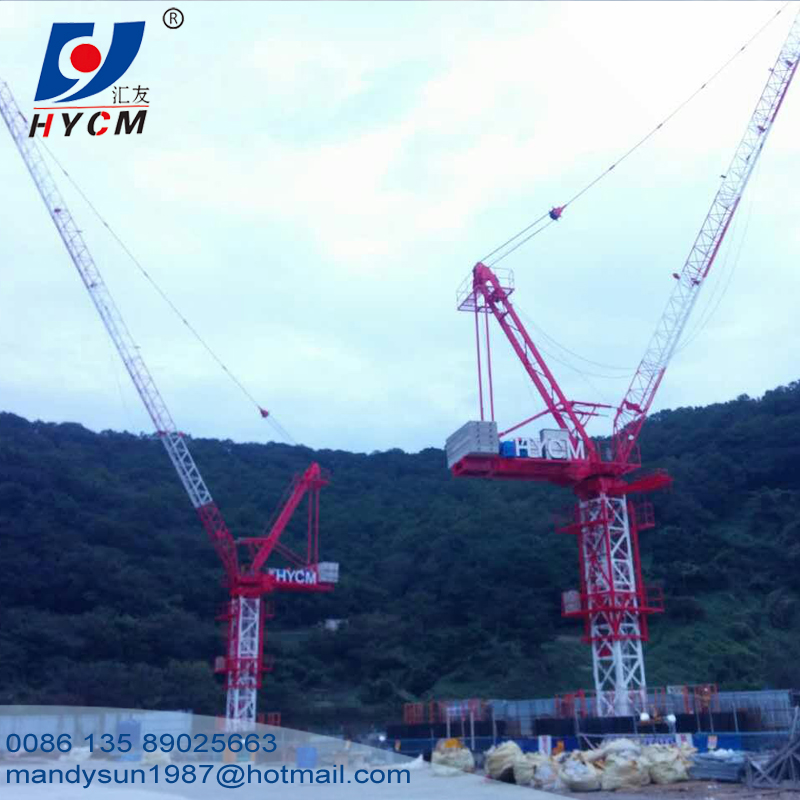

Photos for Max Load 10 Ton Tower Spider Luffing Portal Construction Lifter Crane QTD5020 Tower Crane 10tons
