| Feature: | Tower Crane |
|---|---|
| Certification: | CE, ISO, GOST, CU-TR |
| Brand Name: | HYCM |
| Max. Lifting Height: | 120m |
| Max. Lifting Load: | 4 ton or 5 ton |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 12 months from BL date |
| Model Number: | QTP5010 |
| Place of Origin: | China (Mainland) |
| Span: | 50m |
| Rated Lifting Moment: | 500KN.m |
| Rated Loading Capacity: | 4 ton or 5 ton |
| Application: | construction buildings, skyscraper |
| Tower crane type: | air conditioning and slewing reducer QTP5010 types of tower crane |
| Tower crane color: | orange, yellow or as per your requirements |
| Base Type: | well shaped base, cross base, or base with ballast |
| Optional parts: | Anemometer, Air condition in cabin, Block box, Remote control |
| Power supply: | 380V/50Hz or according to your requirement |
| Mast section dimension: | 1.5*1.5*2.2m |
| Freestanding height: | 29m |
| Tip load: | 1.0ton |
| Jib length: | 50m |
Quick Details
Specifications
Air Conditioning and Slewing Reducer 4ton QTP5010 Mini Tower Crane for Construction
Main features for Air Conditioning and Slewing Reducer 4ton QTP5010 Mini Tower Crane for Construction
1.Height of the tower crane is confirmed according to height of building, lifting ability of the tower crane is independent of height.
2. the tower crane with features as high working speed, stead work condition and high efficiency.
3. Hoisting jib has three jib ranges. this meets project needs more widely.
4. Safety devices are complete. the working is reliable.
5. Lifting jib adopts rigid double tension bars with features as light structure.
6. the eyeshot of cab is well, and the cab is installed independently, which creats a preferable working condition for handlers.
7. Location of the tower crane is reasonable, and the externality of the crane is beautiful.
8. the operation is simple and the maintenance is convenient.
FAQ for Air Conditioning and Slewing Reducer 4ton QTP5010 Mini Tower Crane for Construction
1. Why Choose us?
A. Schneider electric components;
B. Robot welding;
C. CE, ISO, GOST, CU-TR certificates;
D. 16 years' experience
E. Factory
2. Does your company supply other machineries?
We are Manufacturer for construction machinery including tower crane, construction hoist and concrete batching plant with high quality. Customers can pick what they need from one cooperative partner to save time.
3.Trade terms?
Payment: T/T, L/C
Delivery:30 days, If there are stock machineries,the delivery time within 5 days.
MOQ:1set
4.What'S your company advantages?
Professional and Systematic manufacturer. Our team can offer more professional operation in International trade.
Technical Parameters for Air Conditioning and Slewing Reducer 4ton QTP5010 Mini Tower Crane for Construction
Main Performance |
Main Specifications | |
Rated lifting moment (KN.M) |
500 | |
Max. Lifting load(t) |
4 | |
Tip load(t) |
1.0 | |
Working range(m) |
3~50 | |
Lifting height(m) |
Freestanding height |
29 |
Attaching height |
120 | |
Mast section |
Main limb angle steel (mm) |
∠160X160X14/Q235B |
Section size(mm) |
1600X1600X2200 | |
Lifting jib |
Upper chord(mm) |
Two angle steel 125X10 / Q345B |
Lower chord(mm) |
Two angle steel 125X10 / Q345B | |
Parallel face width (mm) |
1040 | |
Counter jib |
Length(m) |
11.368 |
Hoisting mechanism |
Reducer |
JZQ460 |
Motor |
YZTD200-4/8/24-15/15/4KW | |
Brake |
YWZ-250/35 | |
Wire rope |
6X37-13-1770-1-1right lay | |
Hoisting speed (m/min) |
65.14/32.57/7.0 32.14/15.60/3.5 | |
Slewing mechanism |
Reducer |
XX100,195 |
Motor |
YZR132-6-3.7KW | |
Slewing speed (r/min) |
0.6 | |
Trolleying mechanism |
Reducer |
WXG120 |
Motor |
YD112S-4/8-1.5/2.2KW | |
Trolleying speed( m/min) |
38.6/25.2 | |
Jacking-up speed |
Hydraulic pump station
Jacking oil cylinder |
TQZ40/140/125 |
Motor |
Y132M-4 | |
Slewing bearing |
Type |
1220.32 |
Power supply |
380V/50HZ or as per your require | |

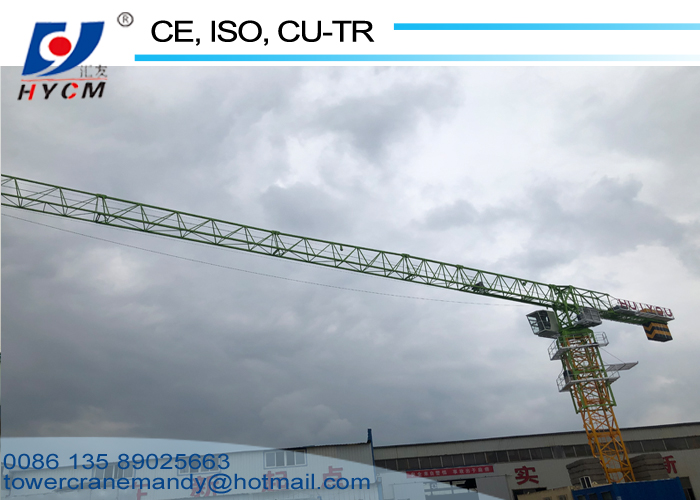

Photos for Air Conditioning and Slewing Reducer 4ton QTP5010 Mini Tower Crane for Construction
