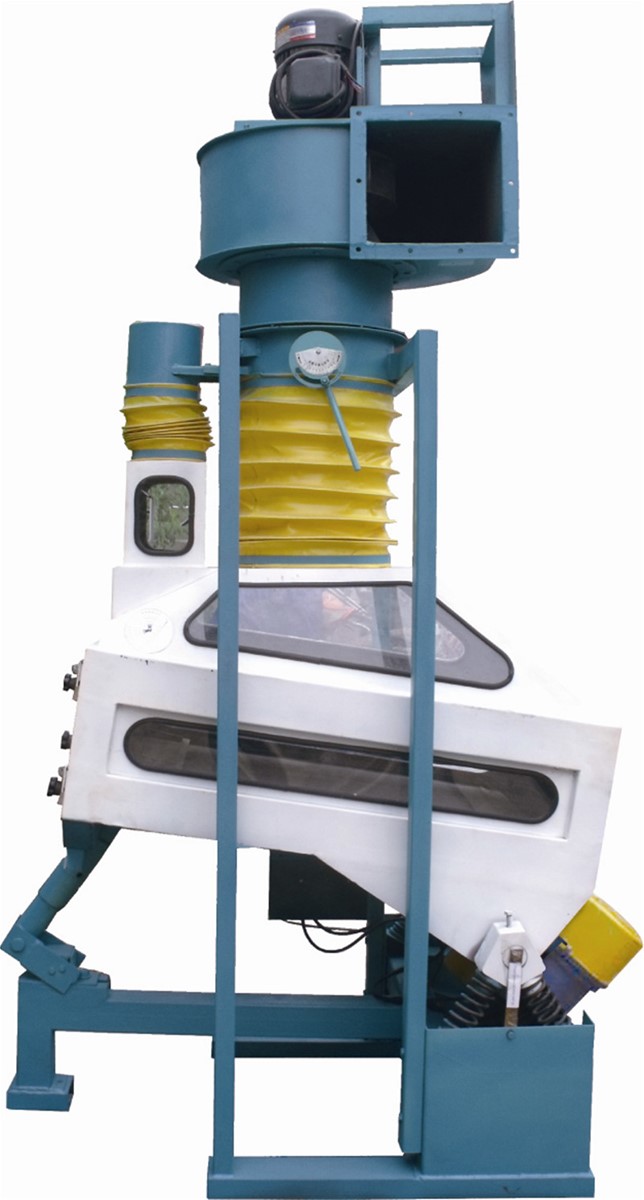

Introduction of TQSF-100 Gravity Destoner

TQSF-100 Gravity Destoner is applied for efficiently separating stones and pebbles, glass, and other high-density impurities from grain.



Principle of TQSF-100 Gravity Destoner

the work principle of TQSF-100 Gravity Destoner is based on the difference in specific weight of material. the working table of destoner is covered with a woven wire mesh bed, through which air flows from below. Heavy impurity such as stone are not lifted by the air cushion and stay on the mesh bed. the vibratory motion causes the heavy impurity transported to the beginning of the regulating plate at far end of the machine.

Features of TQSF-100 Gravity Destoner

TQSF-100 Gravity Destoner is widely used to process all kinds of grains or seeds, and it has reliable performance and large capacity.

this destoner machine with small size is very convenient to operate.



 Specification of TQSF Gravity Destoner

Model	TQSF-60	TQSF-80	TQSF-100
Capacity	5000 kg	7500 kg	10000 kg
Power	3.5 KW	4.5 KW	3.5 KW
Dimension (L*W*H)	14508761800 mm	135010501800 mm	145012161800 mm
Weight	320 kg	400 kg	480 kg
