| Model Number: | he15081302 |
|---|---|
| Brand Name: | HT |
| Place of Origin: | China (Mainland) |
| size: | 1100*2100mm ,1100*2200mm , 1100*2500mm |
| frame: | 20mm ,25mm,32mm,38mm |
| infill picket: | 12mm, 14mm, 16mm ,20mm , |
| infill picket spacing: | 60mm,100mm,190mm,200mm |
| finish: | powder coating or hot-dipped galvanized |
Quick Details
Specifications

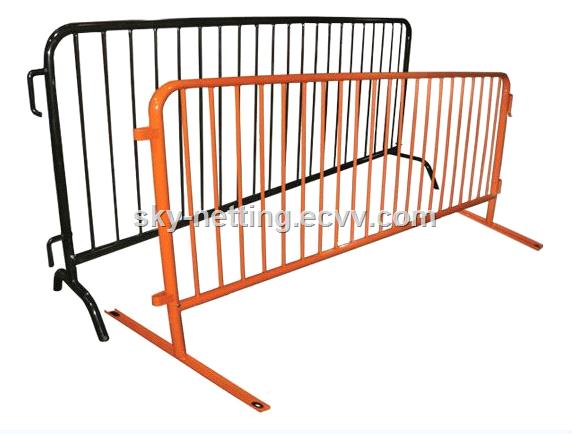

powder Coated Crowd Control Barrier (Factory)
1. Different Name:
Heavy duty crowd control/pedestrian barriers/portable fence/temporary fence/removable fence
2. Uses:
It plays the role of protection in house site, major public events, sports, concerts, festivals, gatherings,
swimming pools, and many other uses for secure construction sites and private property.
3. Detail description:
Inter-locking ' hook and eye' systems for quick installation. Steel barriers are designed to be linked together via hooks.
4. Popular specification:
Panel Size: 1100mm (H) x 2500mm (L)
Frame Tube : 38x1.5mm
Vertical Tube : 16x1.5mm 18pcs
Tube Space : 127mm
Surface Treatment: hot dipped galvanized after welding.
Zinc Coating : 400g/m2
5. Please send us your detailed drawing or optional specifications for a quotation
|
Specification
|
Normal Size
|
|
Panel Size
|
1.1x2.1m, 1.1x2.23m, 1.1x2.5m, 1.3x2.3
|
|
Frame
|
20mm, 25mm, 32mm, 40mm, 42mm, 48mm OD
|
|
Infill Picket
|
12mm, 14mm, 16mm, 20mmOD
|
|
Spacing
|
100mm, 1200mm, 190mm, 200mm
|
|
Finished
|
Hot-dipped galvanized or Powder coated after welded
|
|
Feet
|
Flat feet or bridge feet
|
