| Rated Power: | 1250kva/ 1000kw |
|---|---|
| Frequency: | 50Hz/ 60Hz |
| Speed: | 1500rpm/ 1800rpm |
| Output Type: | AC Three Phase |
| Brand Name: | FARRAND |
| Rated Current: | AMPS |
| Rated Voltage: | 110V~690V |
| Model Number: | FLD634G |
| Place of Origin: | China (Mainland) |
| Power factor: | 0.8 |
| Insulated class: | H |
| Ingress protection: | IP23 |
| Warranty: | 24 months |
Quick Details
Specifications

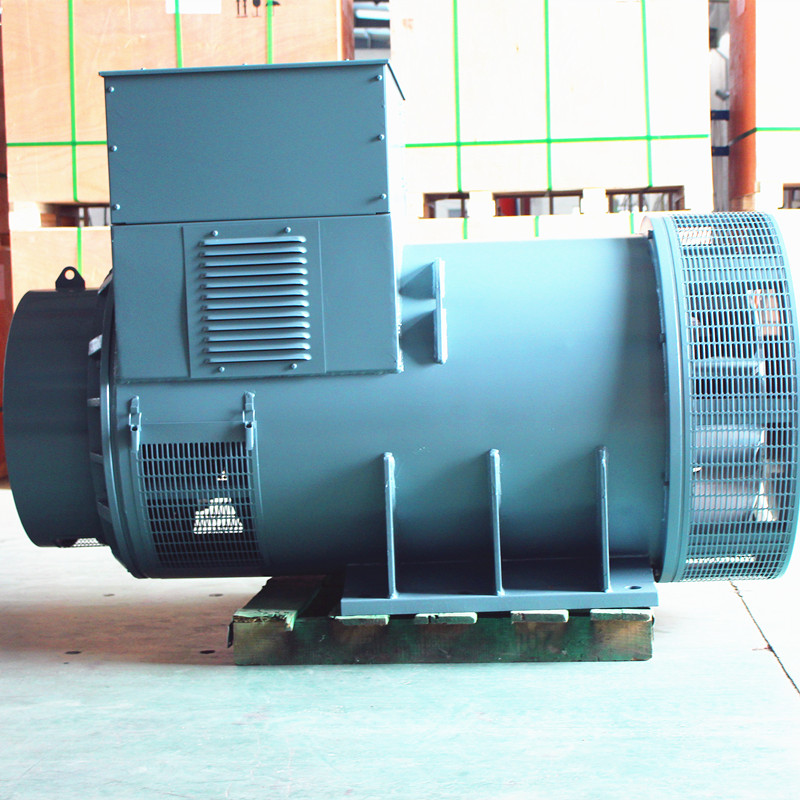

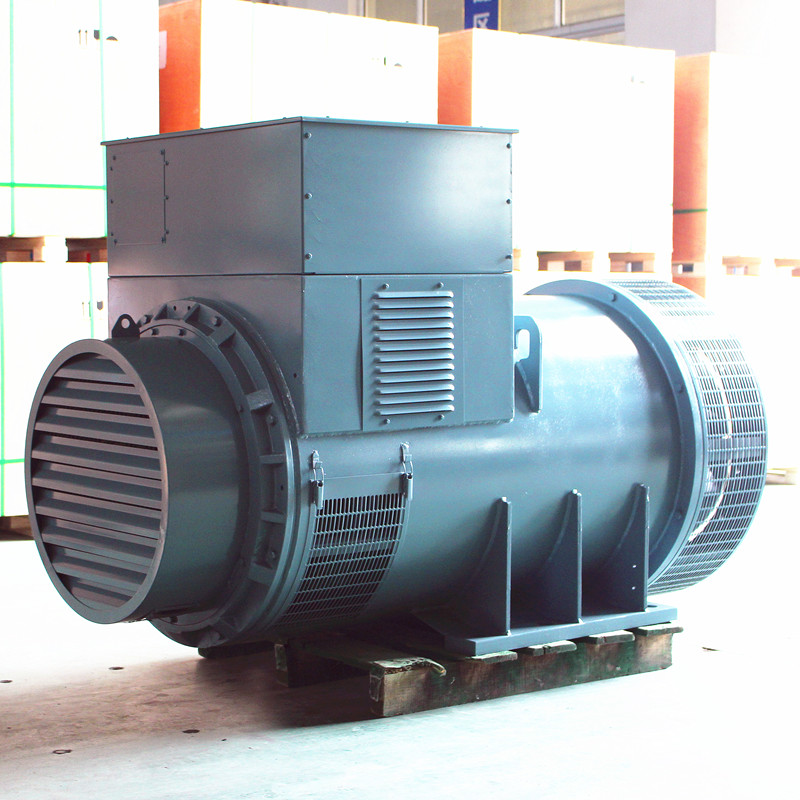

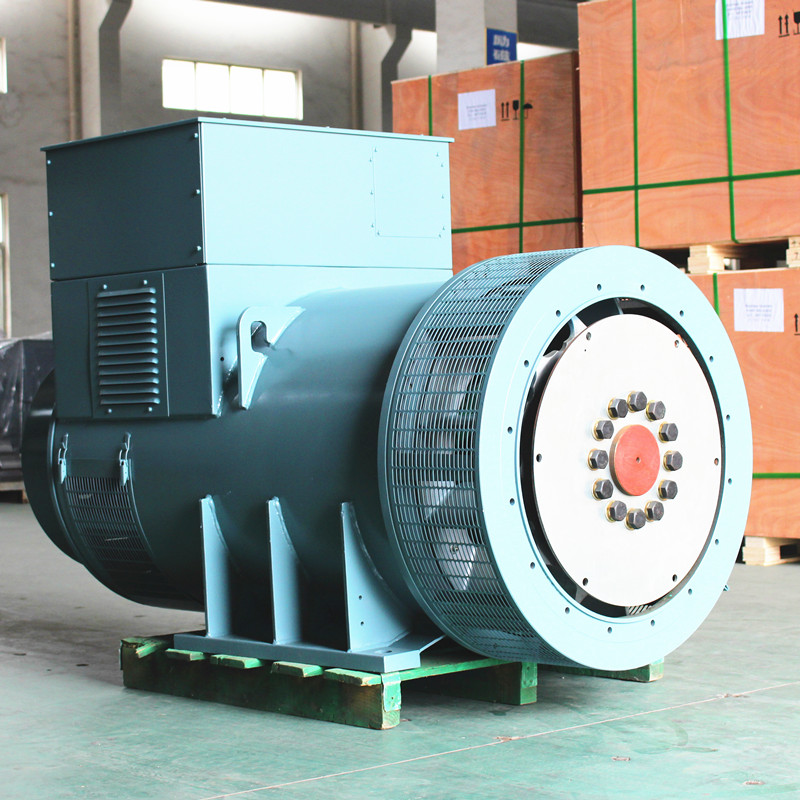

1250kva/ 1000kw alternator diesel generator head 1500rpm.
Technology Features:
1. Brushless synchronous AC alternator , provide invariable excitation in any situation.
2. Easy to be connected with power network or other AC generator. Standard 2/3pitch windings avoid excessive neutral current.
3. Dynamically balanced rotors, with single or two sealed ball bearings.
4. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts.
5. Wide range of flange adaptor and single bearing coupling disc.
6. Built to conform to all leading industrial standards.
Technical Specifications
4 PolesFarrand brushless alternator specifications 3 phase H Class Temperture-rise(125C) | ||||
Rating Power Factor |
0.8 | |||
Altitude |
1000m | |||
Insulation Class |
H |
Excitation System |
Shunt | |
Lead Number |
12 |
A.V.R Model |
SX440/MX321/MX341/SX440/SX440T/AS440 | |
Winding Pitch |
2 / 3 |
Voltage Regulation |
1% | |
Ingress Protection |
IP 23 |
Transient Voltage Recovery Time(s) |
1.0 | |
Waveform:NEMA-MG1 |
50 |
Waveform:IEC-THF |
2% | |
Ambient Temperature |
40 C |
40 C |
40 C |
40 C |
Temperature Rise |
125 C |
150 C |
125 C |
150 C |
Diesel Brushless Synchronous AC Alternator
FLD634G General Technical Data as below:
Alternator |
Powered by LOVOL/DOOSAN/ISUZU/CUMMINS/PERKINS/DEUTZ |
Model |
FLD634G |
Rated Output(KVA/KW) |
1250kva/ 1000kw |
Voltage |
400V/380V/240V/230/220V/110Vcan be indicated |
Frequency |
50Hz/60Hz |
Speed |
1500rpm/1800rpm |
Power Factor |
0.8 |
Insulation Class |
Class H |
Ingress Protection |
IP23 |
AVR(Option) |
SX440,MX341,SX440T,MX321 |
