| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 12 months |
| Certification: | CE |
| Brand Name: | ChiKin |
| Condition: | New |
| Dimension(L*W*H): | 3200*1850*1700mm |
| Weight: | 5800KG |
| Power(W): | 1.2KW |
| Voltage: | 220V/50Hz |
| Model Number: | CK-04R |
| Place of Origin: | China (Mainland) |
| Brand Name: | CHIKIN |
| Business Type: | Manufacturer |
| Machine Type: | PCB making |
| Color: | Blue sky + silver |
| Rail & Ballscrew Type: | STAR |

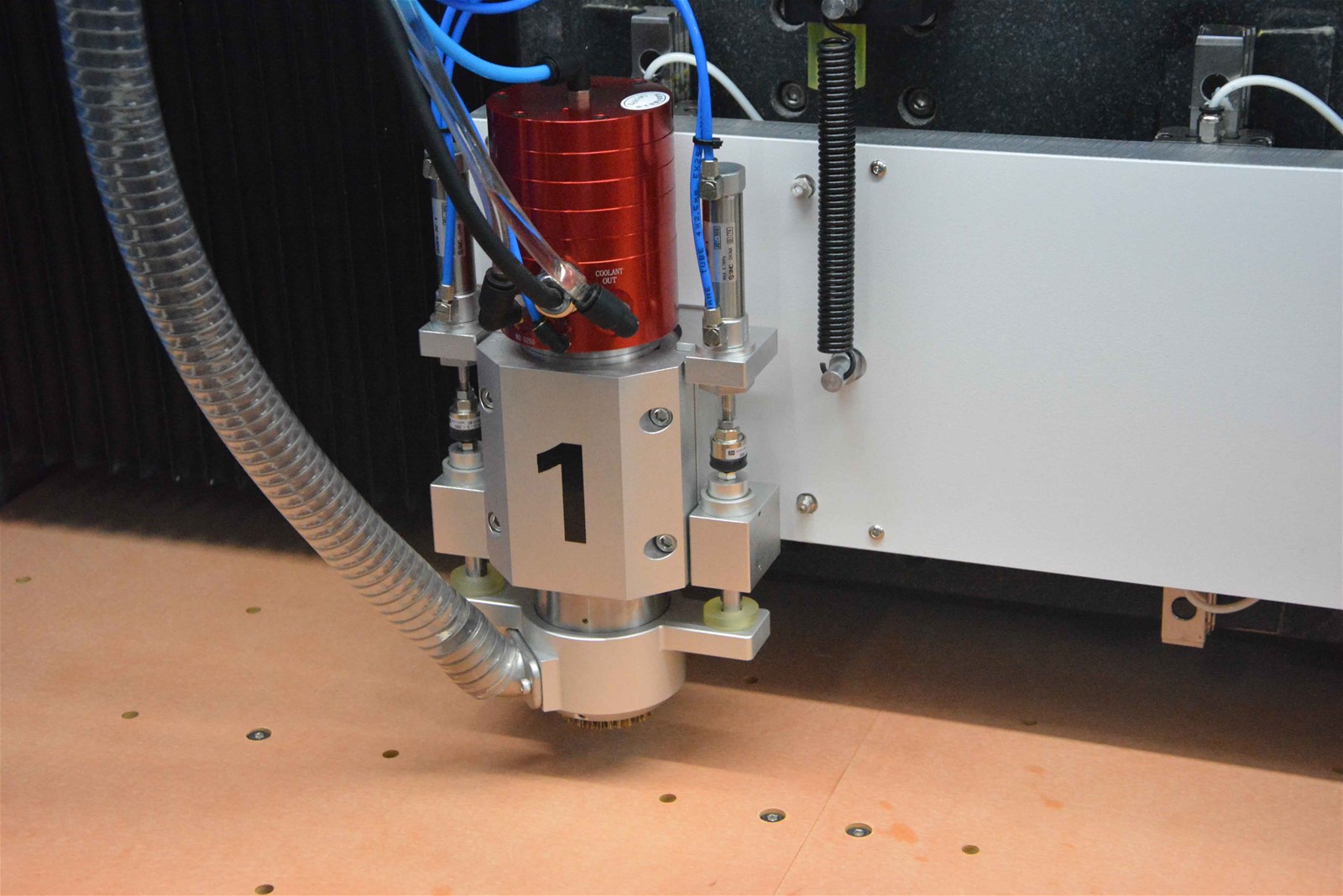

| Name: | Hot Sale 1.2 kw Water Cooling Chiller CNC 4 Spindles PCB making machine |
Quick Details
Specifications
for more details, please let us know:
Cherry.Chan(a)
Cherry.Chan(a)
| NO | Item | Technical Parameters | ||
| 1 | Spindle number | 4 | ||
| 2 | Spindle model | CK-04R | ||
| 3 | Spindle speed | 60krpm | ||
| 4 | Spindle power | 1.2KW | ||
| 5 | Spindle cooling | Water-cooled | ||
| 6 | X.Y.Z rail | Germany STAR | ||
| 7 | X.Y.Z ballscrew | Germany STAR | ||
| 8 | Displacement speed of X.Y axis | 30m/min | ||
| 9 | Displacement speed of Z axis | 15-30m/min | ||
| 10 | Molding precision | ±0.05mm | ||
| 11 | Positioning accuracy | ±0.005mm | ||
| 12 | Table dimension | 560*680 | ||
| 13 | Machine material | Jinanqing granite | ||
| 14 | Drive system | Servo motor | ||
| 15 | NC system | ChiKin | ||
| 16 | Operating interface | Chinese / English Interface | ||
| 17 | Mode of scraps suction | Automation | ||
| 18 | Tool magazine capacity | 11pcs | ||
| 19 | Drilling tool diameter | 0.6-6.0mm | ||
| 20 | Milling tool diameter | 0.6-3.175mm | ||
| 21 | Linear scale | Have | ||
| 22 | Tool length measurement | Have | ||
| 23 | Automatic PIN quit device | Have | ||
| 24 | Air supply | 68par | ||
| 25 | Power supply | 220V/50Hz | ||
| 26 | Machine dimension | 3200*1850*1700mm | ||
| 27 | Weight of the machine | 5800KG | ||
