Security Powder Coated Curved Welded Mesh Fence (Manufacturer)

1. Material: Galvanized iron wire; steel wire; low carbon steel wire; hot-dipped/electrical galvanized wire; pvc coated wire.

2. Applications: garden fence; residential area fence; fence in highway, railway, expressway, airport, dock; port of security and safety; fence for zoo, playground, grassland, pasture; fence for protection the flowers, trees; fence for protection of window; fence for personal property.

3 . Produce peocess and quality control:

(1). Wire: We check the wire one by one, including the diameter, the galvanized thickness, and the strength.

(2). Straightening and cut: The work of straighten and cut wire was done by the machine, which will be more straighten and accurate.

(3). Welded: The welded of horizntal and vertical wire was also done by the machine. We input the data of size into the computer , ensure the firm welding spot.

(4). Bending: The 3D curved of fence panel make the fence more beautiful and strong.

(5). Measure: We measure the size of fence panel again, the aperture, the diameter, the width, in case of the mistake made by machine.

(6). Galvanized: In this process, we galvanized fence if you need, it's a protecting coated, which makes the fence panel use a long time.

(7). PVC coated: We coated fence panel with PVC or PE powder, more beautiful and luster, also protect the fence from corrosion.

4. Post:

Each type of post has various specification, suggest as follows:

Peach Post: 70x100x1.2mm; 50x70x1.2mm

Square Post: 50x50x1.2mm; 60x60x2.0mm

Round Post: OD48x1.5mm; OD60x2.0mm; OD76x2.5mm

D-post: 48x1.0mm

Rectangel Post: 40x60x1.2/1.5/2.0mm

5. Surface Treatment:

Electric Galvanized then PVC coated.

Electric Galvanized then PVC sprayed/painted.

Hot-dipped Galvanized then PVC coated.

Hot-dipped Galvanized then PVC sprayed/painted.

Zinc: 400g/Square Meters--600g/Square Meters

6. Package:

(1). The fence panel was wrapped with plastic film, and packed in wooden or metal pallet, stable and protected.

(2). Every post was in plastic bags, in case of rubbing with each other.

(3). The accessories were all in plastic bags, and in a carton box.

We try our best to protect your products, in case the products damaged in shipment.

7. Specification:

Fence Hight(mm)	Panel width	Wire diameter	Mesh Size(mm)	Folds No.	Post style	Post Size(mm)	Post Length(mm)
1030	2000mm 2250mm 2500mm	3.5mm 4.0mm 4.5mm 5.0mm 6.0mm 8.0mm	50×50 50×100 50×150 50×200 60×120	2	Rectangle post	40×60×1.5	1500
1230				2		40×60×1.8	1700
1500				2/3		40×60×2	1970
1530				2/3	Square post	60×60×1.5	2000
1700				3		60×60×1.8	2170
1730				3		60×60×2	2200
1800				3		60×60×2.5	2270
1930				3	Peach post	50×70	2400
2000				3/4		70×100	2500
2030				3/4	Holland post	48×1.5	2500
2400				4			2900

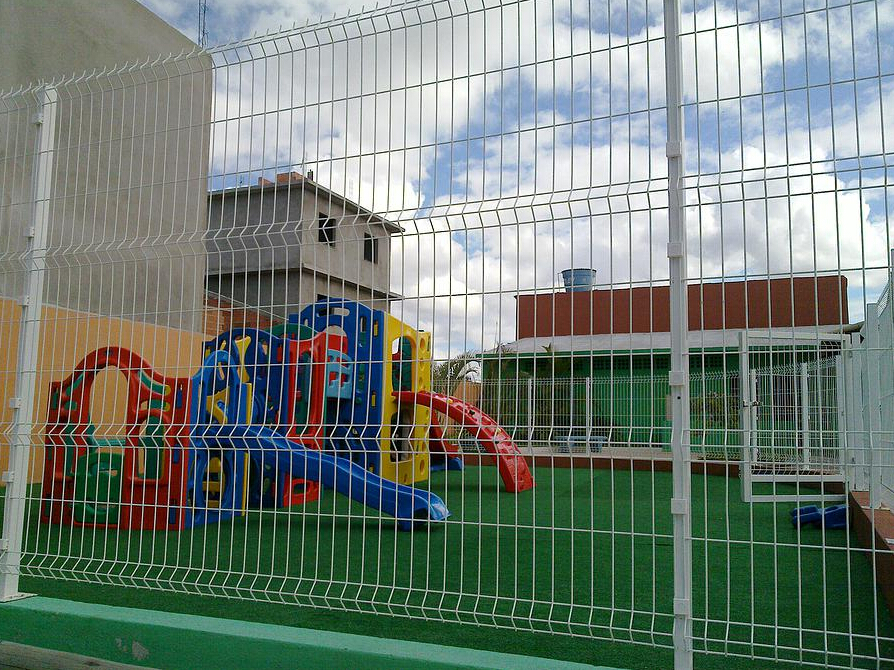

8. Product photos show
