| Certification: | CCC,ISO 9001 |
|---|---|
| Protect Feature: | Totally Enclosed |
| Output Power: | 37KW |
| Type: | Asynchronous Motor |
| Brand Name: | Anlian |
| Efficiency: | IE 3 |
| Place of Origin: | China (Mainland) |
| AC Voltage: | 208-230 / 240 V |
| Phase: | Three-phase |
| Frequency: | 50HZ |
| Model Number: | YZR 280S-10 |
| color: | as you wish |
| working way: | s3-40% |
| rated current: | 84.8A |
| rated rotor current: | 153.2A |
| Rotation speed: | 600r/min |
| conection method: | Y wiring |
| Insulation class: | F / H |
| poles: | 2/4/6/8/10 |
Quick Details
Specifications

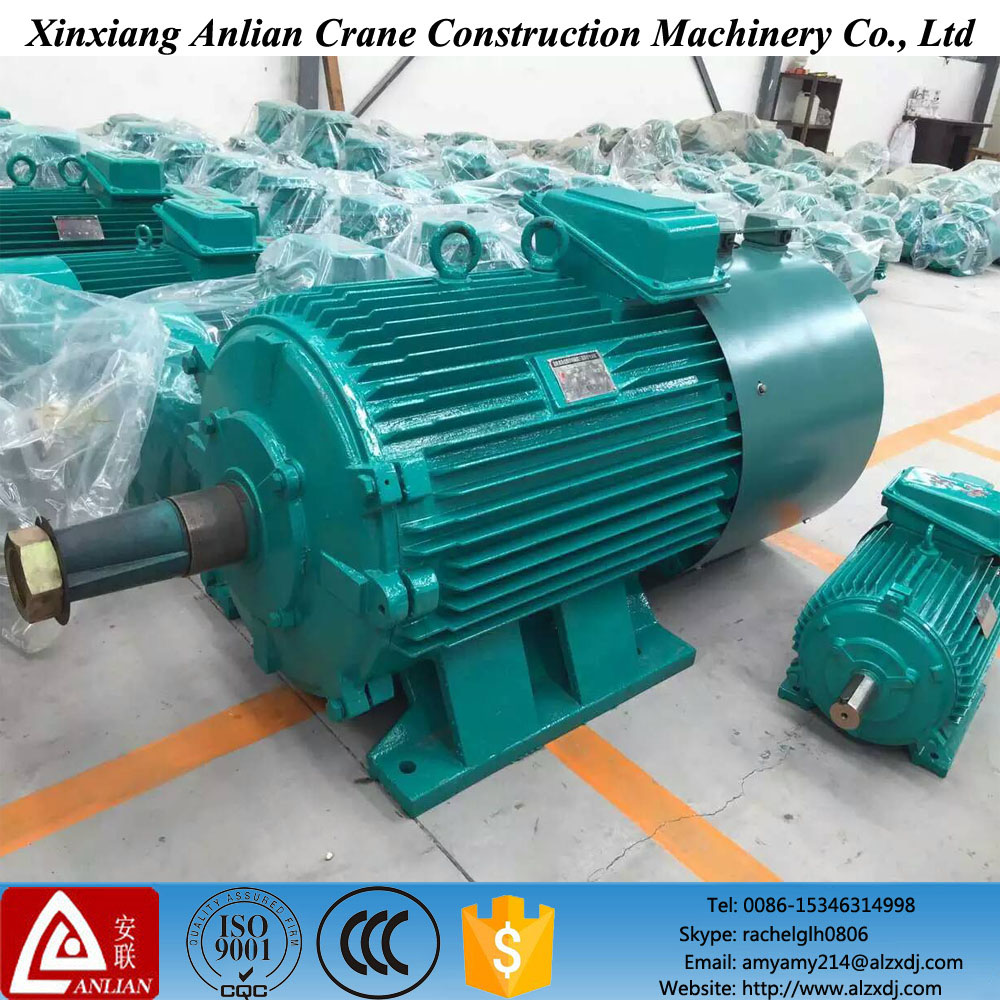

37kw reliable operation of the YZR AC motor
Product Description
Manufacturing proces
Product Description
YZ, YZR series is the up to date design electric motor with the characteristic of big overload capacity and high mechanical strength, which is specially adequate for driving all sorts of metallurgical machinery and hoisting machine or the other similar equipments. YZR series is wound rotor electrical motor and YZ series is cage type electrical motor.
1). the motor can work well when the altitude does not exceed 1000 meters.
2).the motors posses a better enclosure, degree of protection IP44 for normal site condition and IP54 from etallurgical condition.
3). YZR series are winding rotor three-phase asynchronous motors for hoisting and metallurgy, complying with JB/T10105-1999 standard. YZ sereies are squirrel cage three-phase asynchronous motors for hoisting and metallurgy, complying with JB/T10104-2011 standard.
4). There are two classes of F and H insulation,Class F is applicalbe to suit temperature which cool air does notexceed 40 under normal condition,Class H is suitable for metallurgical sites when ambient temperature no exceeding 60 both motors have same data.
5). Motor's rated voltage and frequency is 380V, 50Hz.
6). Frame size is from 112 to 710.
Technical parameters
S3 (starting 6 per hour) - 40%
(10Poles) Synchronous Speed 600r/min
Rated Power (KW) |
Stator Current (A) |
Rotor Current (A) |
Torque | No-load Current (A) |
Speed (r/min) | |
| YZR280S | 37 | 84.8 | 153.2 | 2.8 | 44.2 | 572 |
| 280M | 45 |
103.8 | 165 | 3.2 | 63.6 | 560 |
| 315S | 55 | 118.3 | 138.7 | 3.1 | 62.5 | 580 |
| 315M | 75 | 160 | 149.3 | 3.1 | 85.3 | 579 |
| 355M | 90 | 180 | 166.6 | 3.1 | 83 | 589 |
| 355L1 | 110 | 217 | 172 | 2.9 | 90 | 582 |
| 355L2 | 132 | 262 | 167.5 | 3.3 | 126 | 588 |
| 400L1 | 160 | 339 | 250 | 3.0 | 182 | 588 |
| 400L2 | 200 | 423 | 258 | 2.85 | 213 | 589 |
Manufacturing proces
? Stamping of lamination
? Rotor die-casting
? Winding and inserting both manual and semi-automatically
? Vacuum varnishing
? Machining shaft, housing, end shields, etc
? Rotor balancing
? Painting both wet paint and powder coating
? Motor assembly
? Packing
? Inspecting spare parts every processing
? 100% test after each process and final test before packing
