| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Model Number: | ht7-13949123 |
| Brand Name: | haotian |
| Place of Origin: | China (Mainland) |
| color: | blue ,green |
| wire dia: | 2-16mm |
| Length: | 3000mm,6000mm according to your setting |
| wire cutting machine feature: | Easy operation without noise |
Quick Details
Specifications
1. china supplier wire cutting machine price automatic wire straightening and cutting machine feature
1.Stable performance
2.Easy operation without noise
2.This wire straightening and cutting machine can cut:
Stainless steel wire
Galvanized wire
Gi redrawn wire
Black iron wire
3.
Descrition:
1. Compact and stable structure
2.small volume and light weight
3.good lubricity and good quality
The straightening-cutting machine can cut Stainless Steel wire, aluminum wire, hard-drawn wire, PVC steel wire and so on. It is small, solid, better lubricant, little power loss, operation easy, high efficiency, convenient for moving and the knife can be controlled by manual. And the Cut is nice, have close tolerance and good performance.

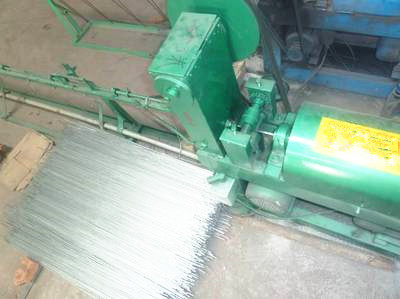

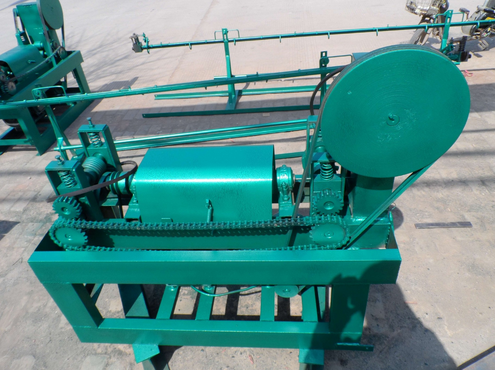

This wire straightening and cutting machine mainly consists of tray bar rack, straightening rack, tractor cutting device, base support, motor rotation facility and control box of electric appliances. This machine is applicable to straighten and cut all types of metal wire.
|
Model |
Wire dia.(mm) |
Cutting length |
Speed (m/min) |
Power |
Weight |
Dimension (mm) |
|
CT0.3-1 |
φ0.3-1 |
300-600 |
54-108 |
1.1KW |
100Kg |
1000*500*700 |
|
CT1.6-6 |
φ2-6 |
600-6000 |
110 |
2.4KW |
1000Kg |
7750*600*1260 |
|
CT3-8 |
φ3-8 |
100-6000 |
40 |
5.5KW |
700Kg |
7250*550*1150 |
|
CT5-12 |
φ5-12 |
2000-12000 |
40-60 |
12.1KW |
1500Kg |
13770*535*1457 |
|
CT4-14 |
φ4-14 |
800-12000 |
40 |
11.5KW |
1450Kg |
1430*700*900 |
|
CT5-12 |
φ5-12 |
1000-12000 |
120 |
30KW |
5000Kg |
18000*5000*2000 |
|
CT6-14 |
φ6-16 |
3000-12000 |
120 |
24KW |
3500Kg |
14000*500*1260 |
