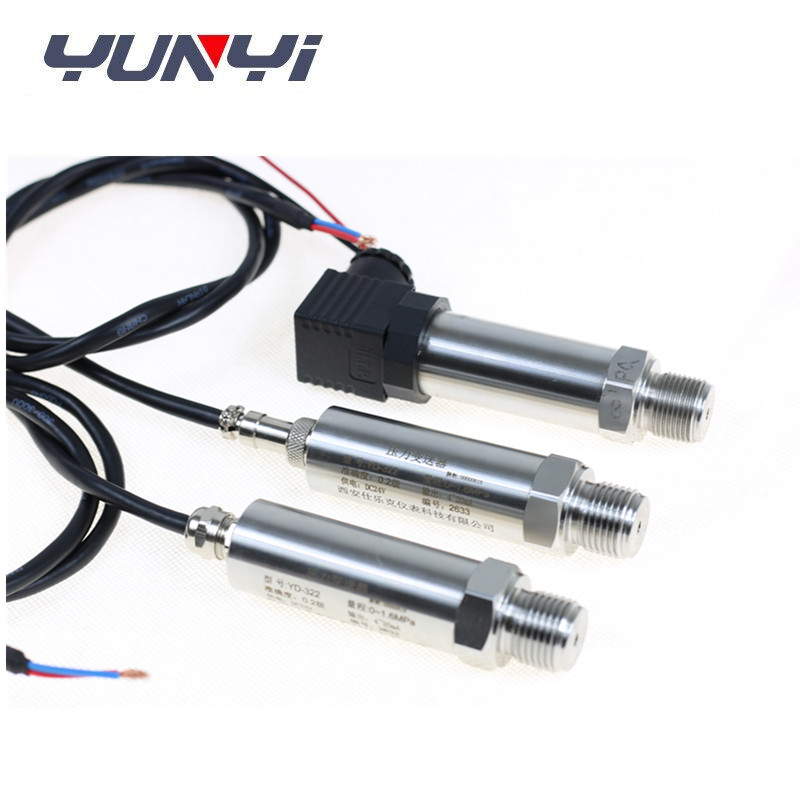

Pressure transmitter

Features:

Compact structure, beautiful appearance

Digital circuit

High precision, high stability

Strong anti-interference, good long-term stability

Small volume, light weight, convenient installation and use

Wide measuring range, can measure absolute pressure, gauge pressure

Variety choice of processes and electrical connection

Suitable for mass production, economic and reliable

Parameters:

Measure range:            -100KPa~0~10KPa~100Mpa

Pressure type:              gauge pressure, absolute pressure

Power supply:             24VDC, 12VDC

Output signal:              4-20mA, 1-5V, 0-5V

Temperature compensation:   -10~70

Working temperature:       -20~85

Storage temperature:        -40~125

Zero temperature drift:       1.5%FS

Sensitivity temperature drift:  1.5%FS

Overload:                 150%FS

Mechanical vibration:       20g(20-5000HZ)

Accuracy:                 0.5%FS        0.25%FS

Response time:            1ms(up to 90%FS)

Load resistance:          (U-15)/0.02

Material:                 Stainless steel case; internal 316L sensor

Media compatible:         Media compatible with 316L stainless steel

Protection grade:           IP65
