| Model Number: | P1.9 |
|---|---|
| Brand Name: | showcomplex |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
- High Precision die-casting aluminum panel achieves high flatness and seamless matching of the whole display
- Color uniformity, high contrast, clear picture
- Ultra thin body, easy to transport and loading and unloading
- High stability, high reliability, long service life
- Support for both front and back maintenance, easy installation
Parameters:
Model |

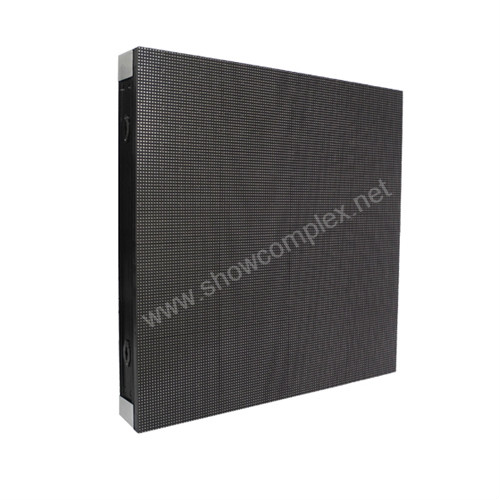

SC-AIF1.9 Indoor Fixed LED Display |
Pixel pitch |
1.9mm |
LED Encapsulation |
1515 |
Pitch Composing |
1R1G1B |
Module Size |
200mm*150mm |
Module Resolution |
120dot*90dot |
Cabinet Size |
400mm * 300mm * 65mm |
Cabinet Resolution |
240dot*180dot |
Density |
360000dot/㎡ |
Brightness |
800nits |
Brightness Adjustment |
Auto 256 level |
Viewing Distance |
2.5m-10m |
View Angle(H) |
150° |
View Angle(V) |
140° |
Max Consumption |
360W/㎡ |
Driving Method |
Constant Driving |
Brightness Adjustment |
Manual/Auto/Programmable |
Scan Mode |
1/16 Scan |
MTBF |
10000hours |
Lifespan |
100000hours |
Frame Frequency |
60Hz |
Working Temperature |
﹣20℃+50℃ |
Humidity Range |
10％ ～ 90％ |
Voltage |
110 ～ 240V |
IP Ranking |
Indoor use |
Blind Spotrate |
<0.0003 |
Signal Type |
AV,S-Video,VGA,DVI,HDMI,SDI,DP |
Tranmission Distance |
UTP:100 meters; single-mode fiber: 10 km |
