| LCD Size: | 2.4 inch |
|---|---|
| Model Number: | SW-15 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

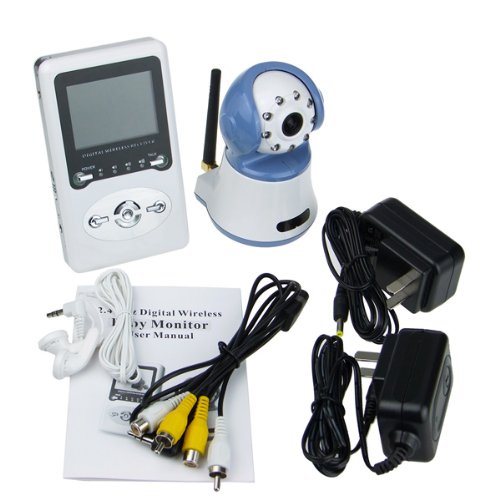

2.4" TFT LCD 2.4GHz Wireless Video 2 Way Talk Baby Monitor
>Digital wireless security kit
>High resolution picture
>Stable signal and anti-jamming technology
>200Mtransmitting range in open area
>Receiver and camera talk to each other
>Built-in rechargeable Li-battery lasts for 3 hours
Function:
●Digital wireless video
surveillance,clear picture.
●LED lights indicates
volume of the kit
●Digital audio
monitoring,volume of audio is adjustable
●Two way speaker function
●Back to status of
monitoring when no operation interdium above 30 seconds
●Antenna indicator keep
sparking when camera is not within transmission distance
●Power supply:power
adaptor and battery
●Low power indication and
charing indicator
|
Receiving Frequency |
2.400GHz～2.483GHz |
||
|
TV Systems: |
PAL/NTSC optional |
||
|
Method of regulation |
FSK |
||
|
Working Temperature |
-20~60℃/-10~50℃ |
||
|
View Angle(U/D/L/R) (CR>10) |
10/30/45/45(Min) |
||
|
Definition(dot) |
480(W)x240(H) |
||
|
camera |
TV System |
PAL |
NTSC |
|
Valid pixel |
628(H) x 582(V) |
510(H) x 492(V) |
|
|
Image Device |
1/4″ CMOS Image sensor |
||
|
Horizontal Definition |
380TV Line |
||
|
Transmission Signal |
Video, Audio |
||
|
Minimum Illumination |
3Lux/F1.2 |
||
|
Scan Frequency |
PAL/CCIR: 50Hz NTSC/EIA:60Hz |
||
|
Open Transmission Distance |
200M |
||
|
Power |
DC5V/800mA |
||
|
Transmission Power |
17dBm |
||
|
Transmission Frequency |
2.400GHz～2.483GHz |
||
|
receiver |
Sensitivity: |
≤-85dBm |
|
|
LCD |
2.4'' TFT LCD |
||
|
Power off at low voltage |
Power off automatically when voltage is lower than 3.3V |
||
|
Power : |
DC5V/800mA |
||
|
Size: |
123x72 x24mm |
||
|
Weight: |
200g |
||
|
Receiving Signal: |
Video, Audio |
||
|
Battery: |
Build-in 3.7V/350mAh lithium battery |
||
|
Power Consumption |
≤3W |
||
