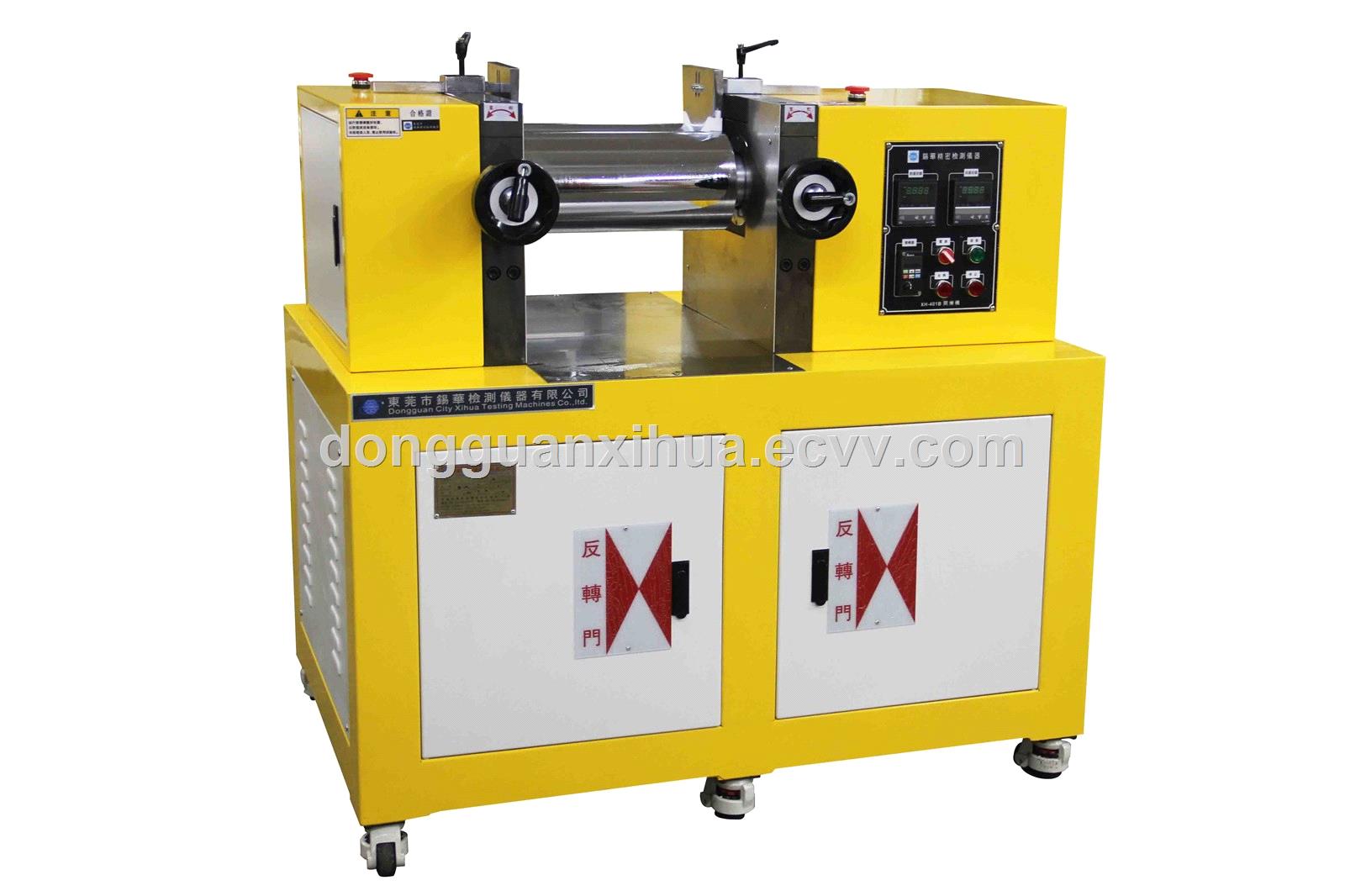

XH-401AE Lab Small Two Roll Mill

the main function of this machine is to ensure your products' quality and colors meet exactly the demand of your clients'; afterwards the experimental results and the right proportion can be applied to production lines. this machine is capable of mixing raw materials andAccessory ingredients evenly for testing.

Technical Parameters

? Mixing Capacity: 0.5-1kg

? Temperature:Room Temperature-300 centigrade

? Roller Dimension:<120mm>L350mm

? Rollers Gap: 0.1-5mm Adjustable

? Cooling system:running water cooling

? Display Mode: Digital Display

? Roller Rotation Speed:front roll 21r/min,back roll18r/min.

? Roller Surface Treatment: Chrome-plate with high rigidity

? Material of the rollers: Chromium molybdenum vanadium steel

? Temperature controller: RKC from Japan

? Heating Mode: Electric Heating

? Temperature precision: +-2 degree centigrade

? Motor: One Taiwan Chengbang Speed Reducing Motors

? Transmission Mode: chain wheel and chain transmission

? Safety Device: Reversible rollers (by kicking at the door of the machine, can add some other safety device according to your requirements)

? Power: 10HP

? Approximate Volume (W*D*H): 11006501200mm

? Power Supply: 3∮,AC380V

? Weight: about 500kg

Certificate: CE Certificate

Note: the main configuration is as follow:
