| Model Number: | he15092301 |
|---|---|
| Brand Name: | HAOTIAN |
| Place of Origin: | China (Mainland) |
| Material: | galvanized wire |
| Type: | welded cage |
| Use: | Chicken |
| commodity: | electro-galvanized welded chicken cage |
| goods: | 3 layers chicken cage |
| product: | galvanized chicken breeding cage |
Quick Details
Specifications

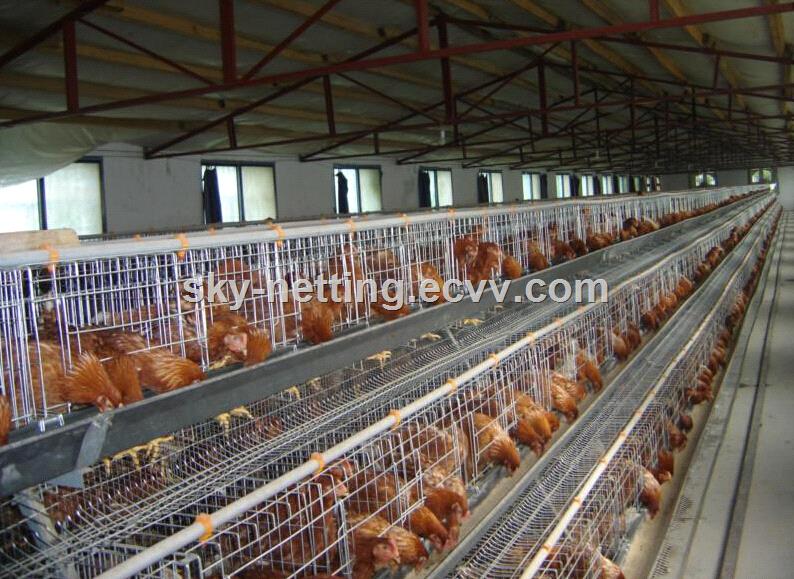

galvanized poultry cages for battery chicken,layer chicken
?.Application: Layer chicken , poultry chicken , egg chicken , broiler chicken , baby chick from day old until
laying eggs.
?. Sureface treatment :
1.electro galvanized (also named cold galvanized), Using the electrolysis,during the process will form a layer uniformity and
good combination metal or alloy sedimentary that covering the metal wire cages, Surface zinc coated is thin, can reach about
10-20g/m2,easy to get rust. but the sureface is smooth and cost lower.
2. hot dip galvanized: make the solid zinc melting into liquid, then put the derusting metal cages into the 500c melting liquid zinc,
then the metal cage sureface will attach the zinc. Surface zinc coated is thick, can reach about 500g/m2,hard to get rust. but
the sureface is not smooth.
3. PVC coated : Can be coated into any color as you like
?Specifications of the chicken cage

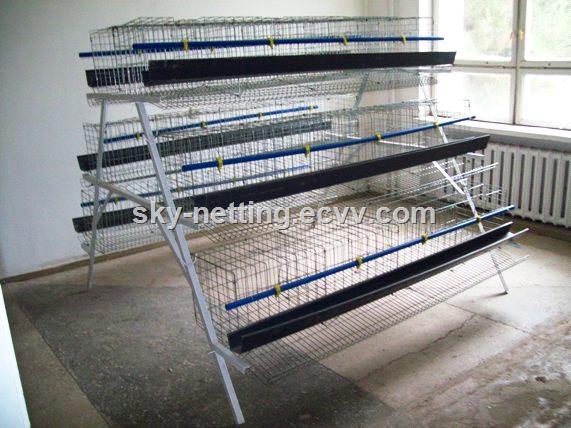

- 3 layers chicken cage
1.88m
|
Wire Diameter: 2.4 and 2.9mm Size of cage : 1.88m * 60cm *(37cm*32cm) Nest size:47cm *38cm*(37cm*32) width of cage frame:2.2m,vertical height:1.4m |
1).3 tiers on each side( total 2 sides) of the frame 2). 8 Nests on each tiers,total 24 nests one set 3).4 chicken per nest 4).96 chicken per set |
2.15m
|
Wire Dia 2.5 and 3.0mm Size of cage : 2.15m *60cm *(37cm*32cm) Nest size:43cm*38cm*(37cm*32cm) Cage frame width:2.2m, vertical height:1.4m |
1)3 tiers on each side(total 2 sides) of the frame 2). 10 nests on each tier,total 30 nests 3).4chicken per nest 4).120chicken per set |
- 4 Layers chicken cage
1.88m
|
Wire Diameter: 2.4 and 2.9mm Size of cage : 1.88m * 60cm *(37cm*32cm) Nest size:47cm *38cm*(37cm*32) width of cage frame:2.4m,vertical height:1.8m |
1).4 tiers on each side( total 2 sides) of the frame 2). 10 Nests on each tiers,total 32 nests one set 3).4 chicken per nest 4).128chicken per set |
2.15m
|
Wire Dia 2.5 and 3.0mm Size of cage : 2.15m *60cm *(37cm*32cm) Nest size:0.43m *0.4m*(0.38m*0.32m) Cage frame width: 2.4m, vertical height: 1.8m |
1).4 tiers on each side(total 2 sides) of the frame 2) 10 nests on each tier,total 40 nests one set 3).4chicken per nest 4).160 chicken per set |
If you need the H type cage, we will provide you with detailed specifications
If the customer have special requirements, Can do according to customer requirements.

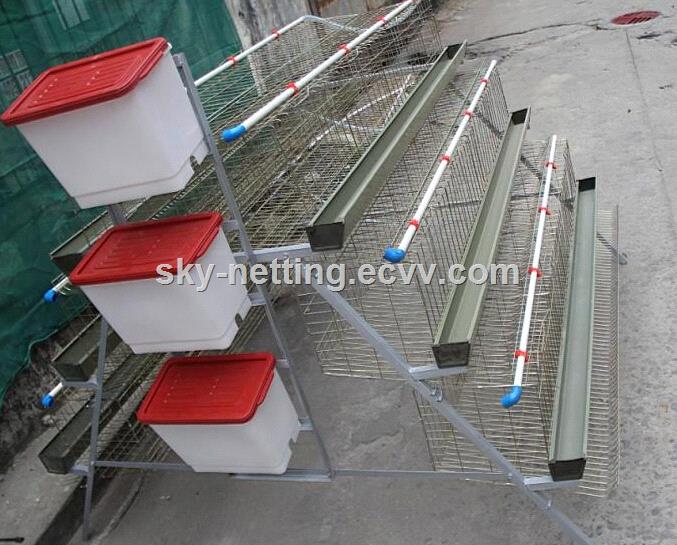

battery chicken cage plastic accessories: We use are of high quality plastic raw materials , not easily broken, anti-aging.
- Each cage accessories: drinking water , feeding trough , cage frame, PVC pipe , clip
-
