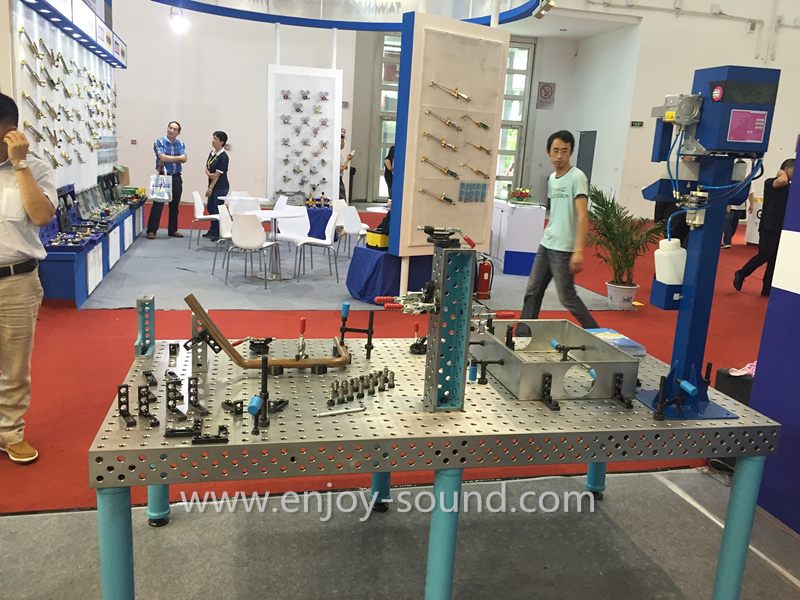

3D welding table has five working surfaces, i.e. Its top and the four sides. Welding operations can be carried out on any of the surfaces and the welding table can be extended via any of its five working surfaces.  the sturdy, high loading-bearing 3-D work and welding table is machined on all 5 sides with a regular hole grid pattern. as a result, all workpieces can be in nitely positioned and clamped by the appropriate clamping components of the system using the patented positioning and clamping bolts on the complete 3-D work and welding table. Several 3-D tables can be connected directly together on any of the 5 sides or spacers. this modular system ful ls a versatile function: Place, fasten and clamp.: machine housing, racks, frames, crossbars, brackets, railings, stairs, doors, control cabinets, metal cladding panelling etc.  this system, for every workpiece you process, allows you achieve quick, precise adjustment and xing of the target dimensions. during the entire stapling and welding process, your
Individual weldments are clamped at the corresponding surfaces or points and thus are in the best possible position.



•  Available in Steel or Cast Iron material.
• Also available in D28 and D16 series.
• D28 series has hole diameter of 28mm and distance between groove lines on the surface is 100*100mm.
• D16 series has hole diameter of 16mm and distance between groove lines on surface is 50*50mm.

  Quick Details
  Place of Origin: Guangdong, China (Mainland)
  Brand Name: DCT
  Model Number: DCT-D28PT3015H-01
  Dimensions: 3m x 1.5m
  Certification: ISO9001 & ISO14001
  after-sales Service Provided: Overseas service center available
  Surface Roughness: Ra1.6.
  Working Surface (3D): 5
  Hole Seperation (D28): 100mm
  Bore Holes: 28mm
  Parallelism: 0.15mm/1000mm
  Surface Roughness: Ra3.2
  Bore Hole:?28mm
  Heat Treatment: Annealing
  Compressive Strength: 295N/mm2
  Surface Hardness: HB100--160


D16 3D Welding Table
Model No.		Material	L (mm/inch)	W (mm/inch)	H (mm/inch)	Max. Load in kg
DCT-D16PT1005H-01		Steel	1000mm/39''	500mm/20''	100mm/4''	1000
DCT-D16PT1010H-01		Steel	1000mm/39''	1000mm/39''	100mm/4''	1000
DCT-D16PT1212H-01		Steel	1200mm/47''	1200mm/47''	100mm/4''	1000
DCT-D16PT1510H-01		Steel	1500mm/20''	1000mm/39''	100mm/4''	1000
DCT-D16PT1515H-01		Steel	1500mm/20''	1500mm/20''	100mm/4''	1000
DCT-D16PT2010H-01		Steel	2000mm/79''	1000mm/39''	100mm/4''	1000
DCT-D16PT2412H-01		Steel	2400mm/94''	1200mm/47''	100mm/4''	1000
D28 3D Welding Table
Model No.	Material	L (mm/inch)	W (mm/inch)	H (mm/inch)	Weight (kg)	Max. Load in kg
DCT-D28PT2010Z-01	Casting	2000mm/79''	1000mm/39''	200mm/8''	650	2000
DCT-D28PT2412Z-01	Casting	2400mm/94''	1200mm/47''	200mm/8''	960	2000
DCT-D28PT3015Z-01	Casting	3000mm/118''	1500mm/59''	200mm/8''	1450	2000
DCT-D28PT1010H-01	Steel	1000mm/39''	1000mm/39''	200mm/8''	330	2000
DCT-D28PT1212H-01	Steel	1200mm/47''	1200mm/47''	200mm/8''	435	2000
DCT-D28PT1510H-01	Steel	1500mm/59''	1000mm/39''	200mm/8''	540	2000
DCT-D28PT1515H-01	Steel	1500mm/59''	1500mm/59''	200mm/8''	760	2000
DCT-D28PT2010H-01	Steel	2000mm/79''	1000mm/39''	200mm/8''	820	2000
DCT-D28PT2412H-01	Steel	2400mm/94''	1200mm/47''	200mm/8''	920	2000
DCT-D28PT3015H-01	Steel	3000mm/118''	1500mm/59''	200mm/8''	1300	2000
DCT-D28PT4020H-01	Steel	4000mm/157''	2000mm/79''	200mm/8''	2250	2000
Support Leg and Frame
Model No.		Product		H (mm/inch)	Weight (kg)	Max. Load in kg
DCT-D00PT00-750A		Standard Support		750mm/30''	29	2000
DCT-D00PT00-650A				650mm/26''	25	2000
DCT-D00PT00-450A				450mm/18''	17	2000
DCT-D00PT00-250A				250mm/10''	9	2000
DCT-D00PT00-750B		Leg with Castor and fixing brake		750mm/30''	30.5	2000
DCT-D00PT00-650B				650mm/26''	26	2000
DCT-D00PT00-450B				450mm/18''	18.5	2000
DCT-D00PT00-250B				250mm/10''	10.5	2000
K650		Reinforced Frame Support		650mm/26''	NA	5000
K450				450mm/18''		5000
K250				250mm/10''		5000

Company Introduction

Shenzhen Ding Sheng Tian Technology Co., Ltd specializes in the production, R&D, production, sales and service of 3D welding fixture. Quality and Customer Satisfaction are our top priorities. Our natural goal is to produce not only the best worktable but also the best tools. We Won the National High-Tech Enterprise in September, 2015.

DCT has acquired the ISO9001 and ISO14001certifications in the welding industry; We are the first manufacture for 3D welding and clamping system in China. Delivering superior quality, sound infrastructurewith all the contemporary facilities, one of the most underlying requisites, we do it all with great expertise. We possess a well-equipped and state of the art manufacturing unit in China with the most outstanding capability in equipment machining and processing.
