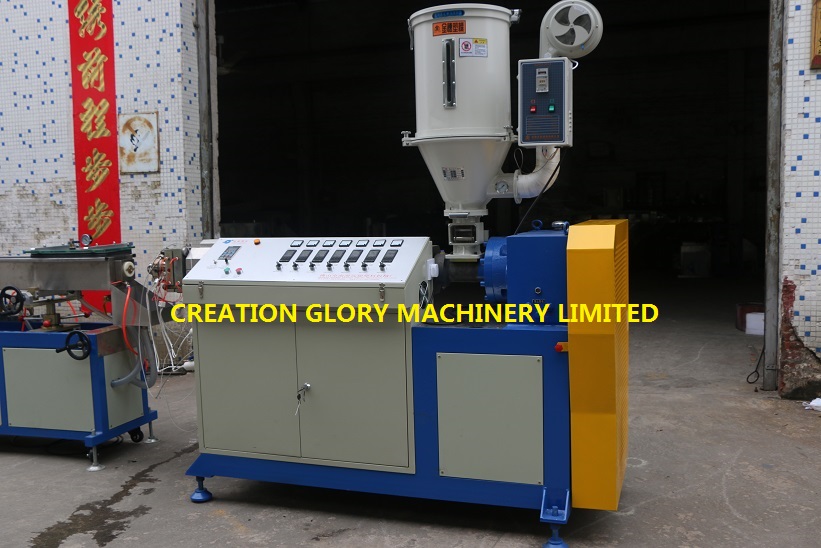

Introduction of EPDM sealing strip extrusion machine

1. the machine is used to produce various kinds of EPDM, PVC, TPE sealing strip etc;
2. Applied materials: EPDM, PVC, TPE granule materials;
3. Features and advantages:
(1) High production capacity;

(2) Stable extruding die forming technology;

(3) Durable and long lift.


Composition & technical details of EPDM sealing strip extrusion machine

MACHINE  PARTS	QUANTITY
SINGLE SCREW EXTRUDER MACHINE	1 SET
PROFILE EXTRUDING DIE	1 SET
VACUUM CALIBRATION WATER TANK	1 SET
BELT TYPE TRACTOR MACHINE	1 SET
DOUBLE WORKSTATION WINDER MACHINE	1 SET

1.  Main extruder machine:

(1) High precision hard chrome plated mirror treated alloy screw;
(2) Intelligent temperature controller, silent fan forced wind cooling,temperaure precision: +/-1oC;
(3) Frequency converter control drive motor, screw rotating seed stepless adjustable, energy-saving and high efficient;
(4) Screw diameter range YJ35-YJ90.

2. Extruding die:

Our engineers have rich experience of mould developing, could design the dies according to clients required size and sample.
Special S136H mirror surface steel for dies.

3. 3D calibration tank:
Stainless steel tank;
3D adjusting machine frame;
Easy operation;
Stable and strong structure;
High calibration precision.

4. Tractor machine:
(1) High wear-resistant soft foamed surface PU multi-wedge belt; workable length 500mm;
(2) Ample tractor force under small pressure,  constant stable tractor action without products deformation;
(3) Belt open-close,up-down adjusting;
(4) Main motor frequency conversion control, linear speed 0-60m/min precisely stepless adjustable;

5. Double workstation winder machine:
(1) Two winder bobbins work together;
(2) Open-close type bobbin;
(3) Easy and fast bobbin changing;
(4) Size of bobbin could be designed per request;
