Product Main

Quick Details

Type: shredder
Brand Name: United Tech
Capacity: 1-50
Negative Pressure: -
Machine name: shredder
Model Number: S
Place of Origin: China (Mainland)

Specifications

Single Shaft Shredder Introduction:
Single shaft shredder is available to recycle wide range of material. It is an ideal machine for plastic, paper, wood, fiber, rubber, organic waste a wide variety of non-metallic materials. As per our customer's requirements, such as the input size of materials. Capacity and the final output size etc. We could work out a suitable proposal for our clients. after being shredder by the machine, the output material could be used directly or go int to the next step of size reduction.
with the function of Siemens microcomputer control system, it is possible to control automatically start, stop. Automatic reverse sensors to protect the machine against over loading and jamming. the output capability typically range between 300kg/hr -5,000kg/hr+ depending on the different model and different materials.

for thick wall diameter plastic pipes, plastic film, waste injection products, plastic bottles, bags
Compact Single shaft shredder combined with great power.
Variable adjustable screens to determine the size of the chips
Hydraulic feed to ensure constant material flow to the rotor
V-belt drive gear reduction through spur gearing
Hydraulic unit and hydraulic cylinder suspended by cardanic joints
in small or medium-sized companies which attach great importance to an optimum cost -benefit ratio.

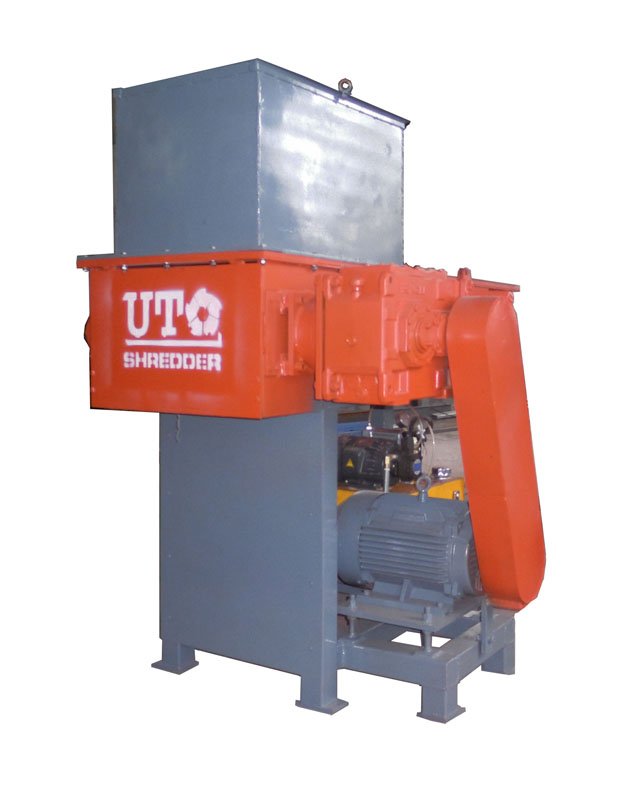

Single Shaft Shredder for plastic tyre metal cable medical waste recycling crusher

Our service:

(1) Your inquiry related to our products or prices will be replied in 24hours.
(2) Our engineer will make machine placement chart according to client's workshop chart
(3) We provide 12 months guarantee since the date of bill of loading. All products are passed strict test.

Pls feel free to contact with us for detailed techincal data and services.

Model S2250 S2260 S3060 S3080
Dimension L/W/H(mm) 1780*1190*1690 1780*1290*1690 2455*1478*1700 2455*1678*1700
Cutting Chamber Size(mm) 790*500 790*600 1200*600 1200*800
RAM(mm) 500 600 600 800
Rotor Blade Diameter(mm) 220 220 300 300
Rotor Ratate Speed (r/min) 80 80 80 80
Rotor Blade Size(mm) 35*35*23 35*35*23 40*40*25 40*40*25
Rotor Blade Quantity (PCS) 20+4 24+4 30+4 42+4
Counter Quantity(PCS) 2+2 2+2 2 2
Rotor Motor Powder(KW) 15 18.5 22 30
Material Return Power(KW) 1.5 1.5 2.2 2.2
Net Weight(KG) 1300 1400 1550 1950
Model S4080 S40100 S40120 S40150
Dimension L/W/H(mm) 2825*1747*1875 2825*2004*1875 2825*2564*1875 2825*2964*1935
Cutting Chamber Size(mm) 1400*800 1400*1000 1400*1200 1400*1500
RAM(mm) 800 1000 1200 1500
Rotor Blade Diameter(mm) 390 390 390 390
Rotor Ratate Speed (r/min) 80 80 80 80
Rotor Blade Size(mm) 46*46*30 46*46*30 46*46*30 46*46*30
Rotor Blade Quantity (PCS) 42+4 54+4 66+4 90+4
Counter Quantity(PCS) 2 25 2 3
Rotor Motor Powder(KW) 37 45 55 75
Material Return Power(KW) 2.2 5.5 5.5 5.5
Net Weight(KG) 3500 4000 5000 6200
Model S48150 S48200 S48250 S66150
Dimension L/W/H(mm) 3255*4415*2720 3255*4415*2720 3255*4615*2720 4100*3450*3000
Cutting Chamber Size(mm) 1650*1500 1650*2000 1650*2500 1550*1500
RAM(mm) 1500 2000 2500 1500
Rotor Blade Diameter(mm) 480 480 480 660
Rotor Ratate Speed (r/min) 80 80 80 80
Rotor Blade Size(mm) 60*60*30.5 60*60*30.5 60*60*30.5 60*60*30.5
Rotor Blade Quantity (PCS) 90+4 114+4 144+4 126+4
Counter Quantity(PCS) 3 4 5 3
Rotor Motor Powder(KW) 90 75+75 90+90 75+75
Material Return Power(KW) 7.5 7.5 7.5 7.5
Net Weight(KG) 11000 11000 12500 12100
Model S66200 S66250 S66300 S66400
Dimension L/W/H(mm) 4100*3950*3000 4100*4450*3000 4100*5500*3000 4100*6800*3000
Cutting Chamber Size(mm) 1550*2000 1550*2500 1550*3000 1550*4000
RAM(mm) 2000 2500 3000 4000
Rotor Blade Diameter(mm) 660 660 660 660
Rotor Ratate Speed (r/min) 80 80 80 80
Rotor Blade Size(mm) 60*60*30.5 60*60*30.5 60*60*30.5 60*60*30.5
Rotor Blade Quantity (PCS) 158+4 225+4 291+4 363+4
Counter Quantity(PCS) 4 5 6 8
Rotor Motor Powder(KW) 90+90 110+110 132+132 160+160
Material Return Power(KW) 7.5 7.5 7.5 7.5
Net Weight(KG) 12500 14200 15500 17500
