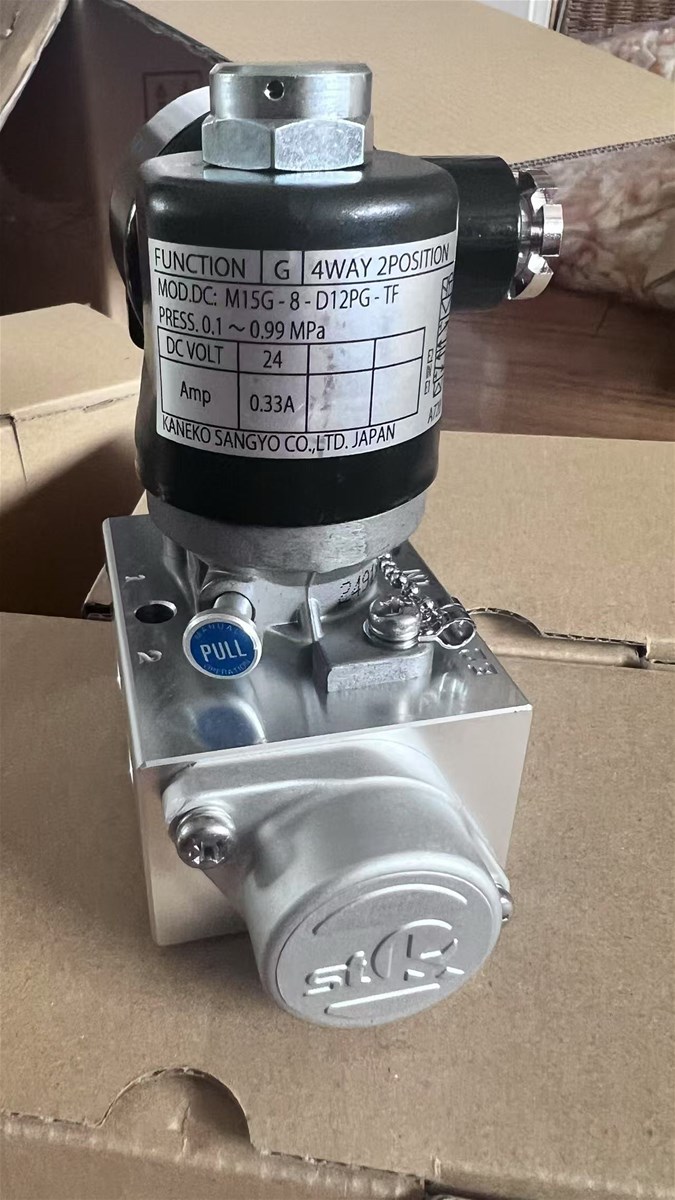

FeatureA kind of safety valve capable of preventing malfunctioning.

Being a semi-automatic type, the valve does not operate freely like an ordinary solenoid valve by turning on or off of the power.

Constant power consumption.

as a direct-acting, manual-reset type three-way valve is used as the pilot valve, power consumption is kept constant, irrespective of the valve size.

Packed type

Free from any fear of burnout or insulation degradation as the coil and movable core do not come into contact with fluid.

Easy to operate manually.

Can be latched with the push of the palm button.

Available in two types no voltage release and electrically tripped.

Standard specification

FLUID CLEAN AIR

FLUID TEMPERATURE -20 60℃

AMBIENT TEMPERATURE -20 60℃

DUTY CYCLE

100% CONTINUOUSLY RATED

OPERATING VOLTAGE RANGE

+10, -15

WORKING PRESSURE

0.12 0.99MPa

M55 AC GENERAL PURPOSE TYPE

M55-832 AC GENERAL PURPOSE TYPE

M55 DC GENERAL PURPOSE TYPE

M55-832 DC GENERAL PURPOSE TYPE

M55 AC EXPLOSION-PROOF TYPE

M55-832 AC EXPLOSION-PROOF TYPE

M55 DC EXPLOSION-PROOF TYPE
