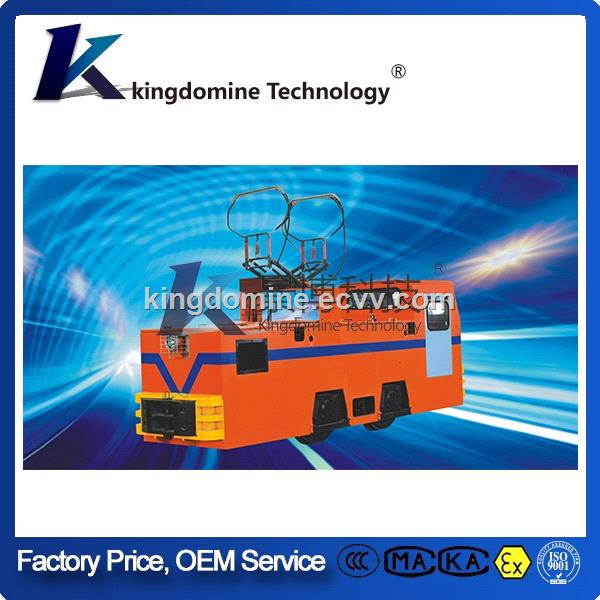

| Model Number: | CJY14/6,7,9G(B) |
|---|---|
| Brand Name: | KINGDOMINE |
| Place of Origin: | China (Mainland) |
| Speed (km/h): | 10km/h |
| Dimensions (L x W x H) (mm): | 4460*1060*1590 |
| Horsepower: | 60HP |
| Fuel Type: | Electric |
| Adhesive Total Weight (t): | 14 |
| Track Gauge (mm): | 762 |
| Wheelbase (mm): | 1700 |
| Wheel Diameter: | 760mm |
| Min Curve radius (m): | 12m |
| Braking Method: | Mechanical&Electrical |
| Max Tractive Effort (KN): | 34.3kN |
| Power (KW)*Unit: | 52kW*2 |
| DC Voltage: | 550V |
| Over all Dimensions (mm): | 4900*1360*1700 |
Quick Details
Specifications
Operating principle
Trolley type electric locomotive working process of the high voltage alternating current (AC) after decompression by traction converter, rectifier, the positive to the overhead lines, the cathode to track. On the locomotive pantograph contact with overhead lines, to the introduction of the current car, automatic switch, controller, then through air resistance box into the traction motor, drive motor running. Motor through the gear drive wheel rotation, thus traction train. from motor electricity flows through the rail flow back to the converter
Parameter
Model No.CJY14/6,7,9G(B) Adhesive / Total Weight (t)
14T Track gauge (mm)
600, 762 or 900mm Traction (KN)
26.68kN Max. Traction (KN)
34.3kN Speed(Km/h)
12.87km/h Max. Speed(Km/h)
25km/h DC Voltage (V)
550V Power (KW)*Unit
52kW×2 Dimensions
Length(mm)
4900mm Width(mm)
1060,1360,1360 Height(mm)
1700mm Coupler Height(mm)
320/430 Wheelbase (mm)
1700mm Wheel Diameter (mm)
Φ760mm Pantograph Height
2000～3000mm Min Curve Radius (m)
12m Controller
Resistance
IGBT
AC Frequency ConversionBraking Method
Mechanical Brake
Electrical Brake
