| Place of Origin: | China (Mainland) |
|---|---|
| Model Number: | ECG-8121 |
| Brand Name: | Darppon |
| Type: | Examination Therapy Equipments |
| Lead standard: | 12 leads |
| AC flter: | 50Hz60Hz |
| EMG filter: | 25Hz45Hz |
| Work mode: | MAN,AUTO,ANALYSIS modes |
| Frequency response: | 0.05-160Hz(-3db) |
| Display: | 7 inch colour LCD with Alphabet keyboard |
Quick Details
Specifications

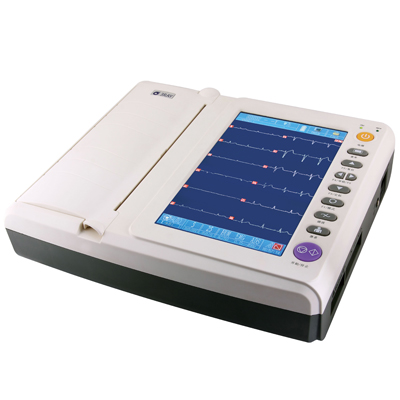

ECG-8121 New 12 channel ECG EKG machine Electrocardiograph 12 leads interpretation
Product Description
Features:
Portable 12 channel ECG machine
Work modes: Manual/Auto/Arrhythmia analysis modes
7 inch colour LCD with Alphabet keyboard
Alphabetic keyboard for patient information
Built in rechargeable Li-ion battery
Adaptor 110-230V, 50/60Hz AC power supply
Real-time ECG waveform, 250 patients save/replay
Built in USB/RS232 interface(ECGNET software Optional)
Technical Specification:
Lead standard 12leads
Calibrating voltage: 1mV±2%
Voltage tolerance: ≥±500mV
Inter-channel interference:≤0.5mm
Frequency response: 0.05~160Hz(-3db)
Patient current leakage: <10μA
Noise level: <15μVp-p
Sensitivity valve: ≤20μV
Paper speed:6.25,12.5, 25,50mm/s(±3%)
Time constant: ≥3.2s
Input dynamic range: ±10Vpp
Filter:
AC flter: 50Hz / 60Hz
EMG filter: 25Hz / 45Hz
Anti-drift filter: 0.15Hz(Adaptive)
Sensitivity: 5,10,20mm/mV
CMMR: ≥120dB (with AC filter
Input impedance: ≥50MΩ
Input circuit current:≤0.05μA
Work mode: MAN,AUTO,ANALYSIS modes
Lead acquisition12bit/1000Hz(synchronously 12 leads)
Input circuit: floating; protection circuit against defibrillator effect
Standard Configuration:
| Patient cable | 1 set |
| Limb electrode | 4 sets |
| Chest elelctrodes | 6 sets |
| Gounding cable | 1 set |
| Paper axis | 1 set |
| Thermal paper | 1 set |
| Fuse | 2 sets |
| 3-cord power cord | 1 set |
| AC Adaptor | 1 set |
