| Properties: | Diagnosis & Injection |
|---|---|
| Brand Name: | Darppon |
| Application: | Cats, Dogs, Bovine, Equine, Swine, Goat |
| Color: | grey |
| Name: | veterinary Color Doppler |
| Model Number: | DCU12 VET |
| Place of Origin: | China (Mainland) |
| Use: | for Animal |
| Type: | Veterinary Ultrasound Scanner |
| Net: | 4.5kg |
| Specification: | 310*280*390mm |
Quick Details
Specifications

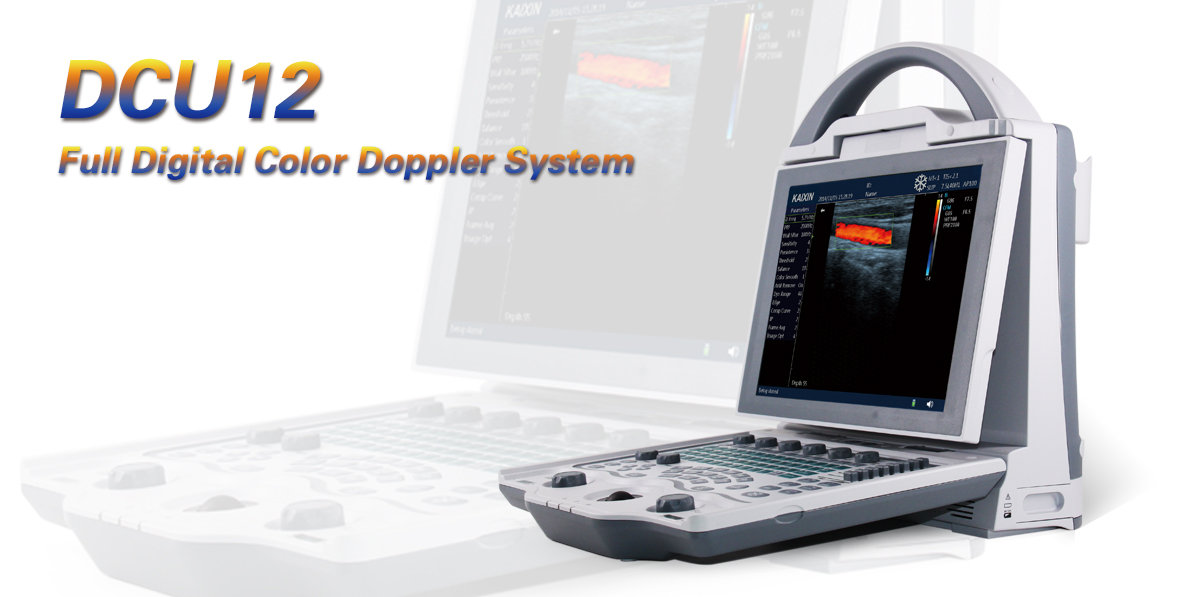

DCU12 Full Digital Color Doppler Ultrasound scanner(Veterinary)
1. Application: Leading image process technical and advanced and practical clinical solution method. Applicable to diagnosis of abdominal organs(Trans-vaginal included), superficial organs and cardiac. with scalable design, upgrade continuously, fully meet the needs of clinical application extension.
2. Parameters:
| SpEcification parameters | 1. Grey scale: 256 level 2. Color scale: 256 level 3. Display: 10.4'flicker-free high-resolution medical color LCD 4. Power: 100-240V, 1.2-0.6A frequency: 50-60Hz 5. Adapter output: DC12.8V 3.0A 6. Power consumption: 100VA 7. Main unit size: 256*150*326(mm, Length*width*height) 8. Unit net weight: 4.5Kg(Accessories not included) |
| Multi-media and accessory equipments | 1. Video recorder 2. I-station integral work station, realize image storage, report form and cloud print 3. U flash disk (file management, software upgrade and one-key storage) and DICOM port, convenient for data management and available to removal transmission. 4. Dual-mode TV output: PAL/NTSC |
| Probe port | Two enabled probe ports, automatic identification technology, available to optional probe configuration. |
| Language | Menu operation, interface language: English/Chinese switch alternatively |
3. Operation Mode:
- B,B/B,4B
- M,B/M
- CFM
- PDI
- PW
- THI
- High precise digital multi-beam formator
- Dynamic frequency fusion imaging
- High precise delay dynamic receiving focusing
- Ultra-wideband image technique
- Adaptive color artifact removal technique
- Adaptive vessel imaging
- Adaptive Doppler image technique
- THL tissue harmonic imaging technology
A. Routine measurement: measurement software package & report for B mode,M mode,D mode
B. OB software for Cattle, dogs, horses, cats, goats, camels, sheep and pigs;
C. Software package for urological measurement & analysis
D. Software package for superficial organs measurement & analysis
E. Software package for cardio measurement & analysis
6. Reports:
OB, Cardio, Urological report
7. Configuration:
7.1 Standard Configuration:
| 1 | Main unit:1 PC |
| 2 | 3.5 MHz convex abdomen probe:1 PC |
| 3 | You can choose 1pc probe from below: > 6.5 MHz Linear Rectal probe > 7.5 MHz linear probe > 6.5 MHz Micro-Convex Probe |
| 4 | Workstation software: 1 set |
| 5 | Reticle:1 PC |
| 1 | Foot Switch |
| 2 | Trolley |
| 3 | Video Recorder |
