| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1year |
| Certification: | CE,ISO,SGS |
| Brand Name: | LEC |
| Condition: | New |
| Weight: | 1200kg |
| Dimension(L*W*H): | 2.05*0.95*1.18m |
| Voltage: | 220V, 380V, 440V, 660V, 50Hz/60Hz |
| Model Number: | LSZ3000 |
| Place of Origin: | China (Mainland) |
| Air Consumption: | 10~ 12m3 /min(357-430CFM) |
| Hose Inner Diameter: | 51mm |
| Max Aggregate Size: | 15mm |
| Max. Conveying Distance: | 35m(wet)/200m(dry) |

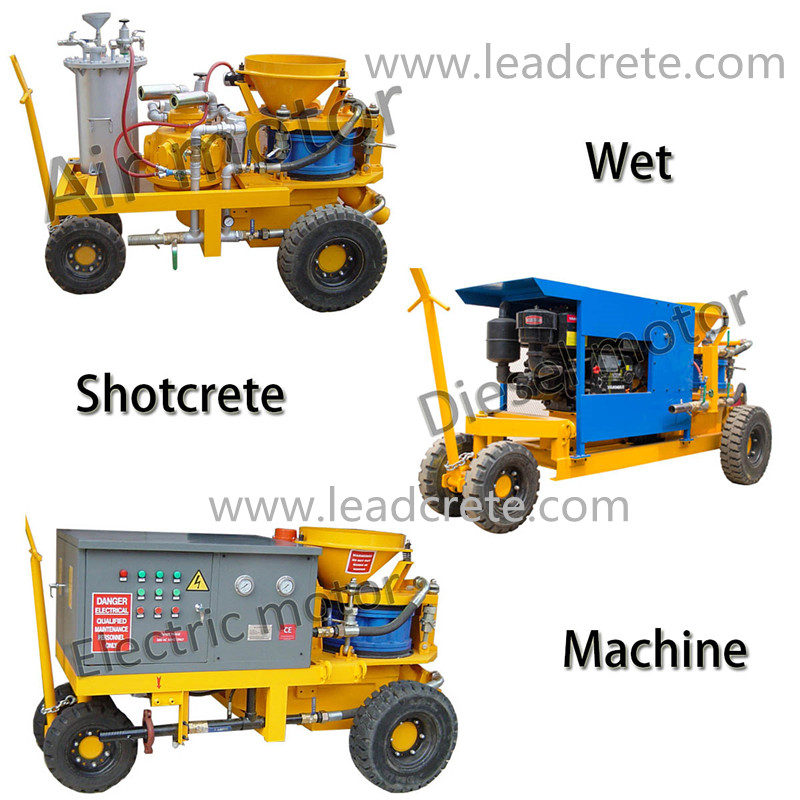

| Drive mode: | Electric drive,Air motor drive,Diesel drive |
Quick Details
Specifications
the machine is suitable either for manual Spraying or by means of a robotic arm.
LSZ3000 is developed for the application of Shotcrete in tunnel building, mines and slopes. this machine has been designed Especially for fibre spraying. and the dosing unit is combined with this Machine.
Basic: Electric drive can be combined with Tyre chassis.
Extended (optional):
Air motor drive or diesel drive combined with
Skid or Rail-wheel.
2. Features:
LSZ3000 shotcrete Machine can both for dry and shotcrete concrete spraying.
LSZ3000 is developed for the application of
Shotcrete in tunnel building, mines and slopes. this machine has been designed
Especially for fibre spraying. and the dosing unit is combined with this
Machine.
4. LSZ3000 Shotcrete machineMain Technical data:
Electric drive:
Specification (with Electric motor drive): | |
Rated Output |
5m3 /h |
Max. Horizontal Conveying Distance |
35m(wet)/200m(dry) |
Max. Aggregate Size |
15mm |
Concrete Slump |
8 -15cm |
Conveying Hose Inner Diameter |
51/ 64mm |
Operating air Pressure |
0.3-0.6MPa (43-86PSI) |
Air Consumption |
|
Main Motor Power |
7.5kW(10hp) |
Dosing Pump: |
BRJ15 |
Dosing Pump Rated Pressure |
0.6MPa(86PSI) |
Dosing Pump Output |
17.5 -88L /h |
Voltage |
|
Material Charging Height |
1.17m |
Rotor Speed |
11r/mi |
Overall Dimension(L W H) |
2.05 0.95 1.18m |
Net Weight |
1200kg |
