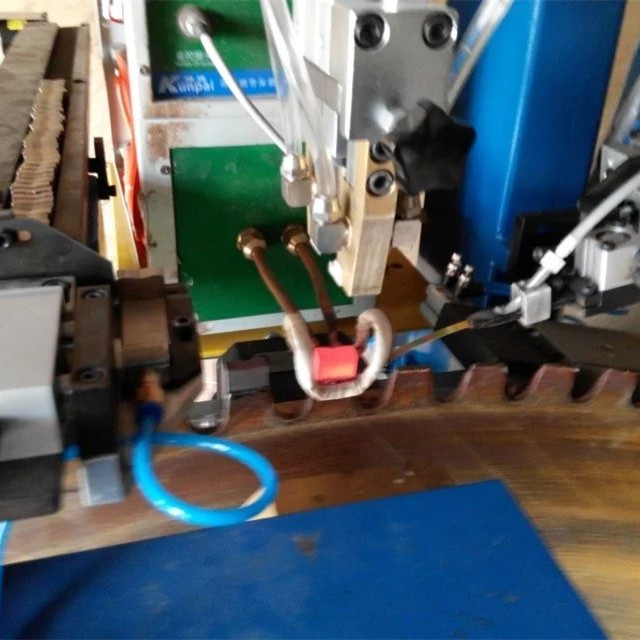

Fully automatic diamond segments brazing machine for diamond saw blade 800-2200mm

this machine uses touch screen control and HMI operation, automatically control of welding time, equipped with tank photoelectric detection system, positioning and rotating saw blade body and feed segment and wire automatically, high accuracy positioning, feed wire second time for last tooth to ensure the welding strength. Bilateral independent fans to improve cooling speed, automatic alarm display for easy troubleshooting. It can complete welding process automatically and easy to operate.

Features:

Segment and saw disc automatic centering

Configure water tank photoelectric system, automatic positioning saw blade and automatic alarm for fault running

Adjustable for R/F segments, L/T segments, brazing time, cooling time, brazing tooth number, skip brazing according to actual demand.

Automatic feeding solder, brushing flux, automatic centering,at the last segment, it will feed solder two times to ensure the end teeth brazing strength

with touch screen control and HMI operation

Easy to operate and maintaince

Applicate for brazing segments for stone cutting saw blade

Automatic Welding Lifting Rack for Diamond Saw Blades

this automatic welding machine is mainly used for welding segments on tooth of diamond steel core with diameter from 800-2200mm.

Features
Push tooth by pneumatic cylinder, automatic alarm for fault running
Adjustable for R/F segments, L/T segments, welding time, cooling time, welding tooth number, skip welding according to actual demand.
Automatic feeding solder, feeding segments, brushing flux, positioning with high accuracy
with touch screen control and HMI operation
Easy to operate and maintaince
Applicate for welding segments for stone cutting saw blade

Specification

Name	Unit	Data
Welding Diameter	mm	800-2200
Verticality	mm	0.03
Welding capacity	PC/h	180-460
Air pressure	Mpa	0.6
Water pressure	Mpa	0.2
Power	W	1200
Water consumption	M3/h	1.5
Size	mm	1000x950x2445
Voltage	V	220
Weight	kg	270
