| Model Number: | AV-IP130-1 |
|---|---|
| Brand Name: | AmViewing |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

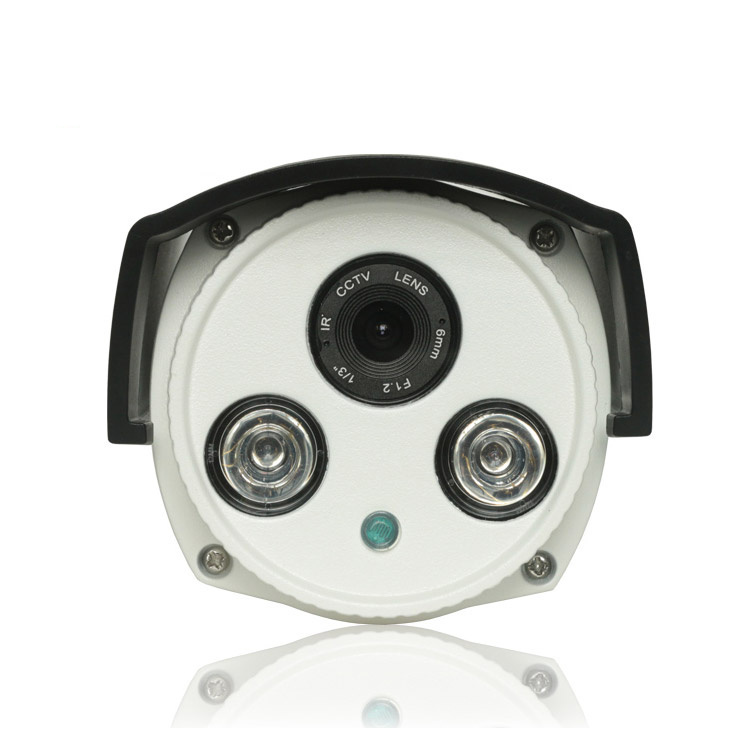

960P 1.3Mega Pixel ir weatherproof cctv IP camera
A, standard design, easy assembly;
B,Provide free operating level CMS platform software, easy to manage;
C, full support for mobile phone, WAN transmission, easy to monitor;
D, support the standard ONVIF protocol, compatibility;
E, support for images and the configuration menu output by BNC, can modify the IP address configuration through the built-in USB port, support USB memory, easy construction;
Fetures:
Progressive-scan CMOS,high performance DSP,H.264,support ONVIF 2.4 standard protocol, stronger compatibility,with device ID No., remote no need domain,port mapping, with floating window function, can be very convenient to meet customer office, entertainment, monitoring and other services.Built-in NVSIP protocol,compatible with HikVision, Dahua IPC,compatible with ONVIF protocol.with 4pcs powerful ir array leds,long service life,long night vision distance, IP66 waterproof design, high reliability, (lens standard:4mm,6mm).
Specification:
| Item No. | AV-IP130-1 | |
| Main Processor | high performance main chip | |
| image sensor | 1/3 inch CMOS | |
| Effective Pixels | 1280(H)*720(V);1280(H)*960(V) | |
| Day Night function | Support IR-CUT switch | |
| Lens | 2MP 4mm lens(4mm/6mm/8mm/12mm lens optional) | |
| Minimum Illumination | 0.01Lux, 0 Lux with IR | |
| S/N Ratio | ≥50dB | |
| Gain Control | auto | |
| White Balance | auto | |
| Electronic Shutter | auto | |
| video compression standard | H.264 | |
| Maximum video resolution | main stream:1280*960, auxiliary stream:352*240 | |
| Video frame rate | main stream(1280*960@30fps), auxiliary stream(352*240@30fps) | |
| video bit rate | 256k~6Mbps Bit rate adjustable | |
| Video interface | 1ch composite analog video output, BNC(1.0Vp-p, 75Ω) | / |
| audio compression standard | ADPCM | |
| Audio bit rate | 32kbps | |
| Audio input/output | 1/1ch | / |
| Wired network | 1ch 10/100M Ethernet, RJ45 interface | |
| Network protocol | HTTP,TCP,ARP,RTSP,RTP,UDP,RTCP,SMTP, DHCP,DNS,DDNS,PPPOE,IPv4,UPnP,NTP | |
| Access Protocol | Support ONVIF(optional) | |
| Power supply | Support DC12V/POE power supply | |
| consumption | <7W | |
| Configuration interface | Power supply, RJ45 interface | |
