| Model Number: | AV-IP200-2 |
|---|---|
| Brand Name: | MiyeaEYE |
| Place of Origin: | China (Mainland) |
| Brand Name: | MiyeaEYE |
| Image Sensor: | 2 Megapixel |
| Resolution: | 1080P |
| Technology: | Infrared |
| Special Features: | Waterproof / Weatherproof |
Quick Details
Specifications

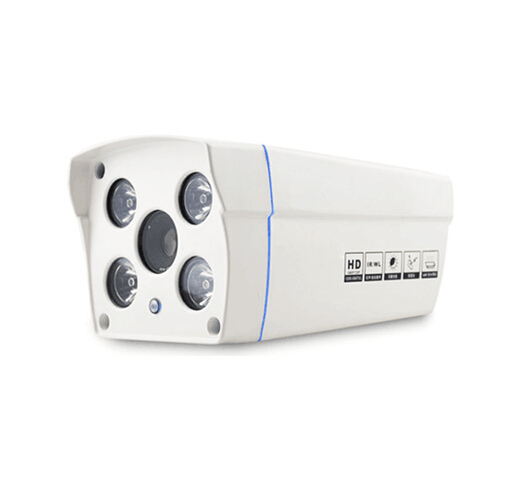

1080P HD 2MP outdoor ip network camera hi3516c
A, standard design, easy assembly;
B,Provide free operating level CMS platform software, easy to manage;
C, full support for mobile phone, WAN transmission, easy to monitor;
D, support the standard ONVIF protocol, compatibility;
E, support for images and the configuration menu output by BNC, can modify the IP address configuration through the built-in USB port, support USB memory, easy construction;
Fetures:
Progressive-scan CMOS,high performance DSP,H.264,support ONVIF 2.4 standard protocol, stronger compatibility,with device ID No., remote no need domain,port mapping, with floating window function, can be very convenient to meet customer office, entertainment, monitoring and other services.Built-in NVSIP protocol,compatible with HikVision, Dahua IPC,compatible with ONVIF protocol.with 4pcs powerful ir array leds,long service life,long night vision distance, IP66 waterproof design, high reliability, (lens standard:4mm,6mm,8mm).
Specification:
|
Model |
AV-IP100-2 (1.0MP) |
AV-IP130-2 (1.3MP) |
AV-IP200-2 (2.0MP) |
|
Image Sensor |
1/3",2 MegaPixel CMOS |
||
|
Resolution |
Main Stream: 1920*1080,1280*960,1280*720 Sub Stream:960*540,640*360,480*270,352*288,320*240,352*192,320*192,288*192,256*192 |
||
|
Lens |
Lens Optional: 4mm,6mm,8mm,12mm,16mm |
||
|
System Structure |
Embedded RTOS design, Dual Core 32 bit DSP(DM365+0130), Hard Compression,Watch Dog,32M FLASH,128M DDR2; |
||
|
Video |
H.264 compression, Dual Streaming, AVI format; Steaming:0.1Kpbs~6Mpbs(Adjustable); Frame Rate:1~25fps/s(Adjustable) brightness,contrast,saturation,sharpness adjustable |
||
|
Network port |
1 RJ45 10/100M self-adaptive |
||
|
Network |
ONVIF 2.0/FTP/PPPOE/DHCP/DDNS/NTP/UPnP,etc |
||
|
IR Light |
4PCS IR Array LEDs |
||
|
IR Distance |
50-70M |
||
|
POE |
N/A |
Support |
N/A |
|
External Port |
N/A |
N/A |
BNC \USB \Audio |
|
Other Function |
Motion detection alarm/storage linkage,OSD,IPC software |
||
|
Power supply |
DC12V 2A |
||
